Sirius 6.6 Export Representation as Image Scaling [message #1855486]

Mon, 17 October 2022 13:01

Eclipse User

Hey there,

We are currently in the process of upgrading to Sirius 6.6.0, when exporting a representation as image using the toolbar, formats other than JPG are not scaled. The text gets moved over to the left. I've attached an example below. This did not happen in 6.2.2.

I tried debugging it, but I couldn't see anything particular that would cause this.

Images attached below.

Cheers
Jonathan

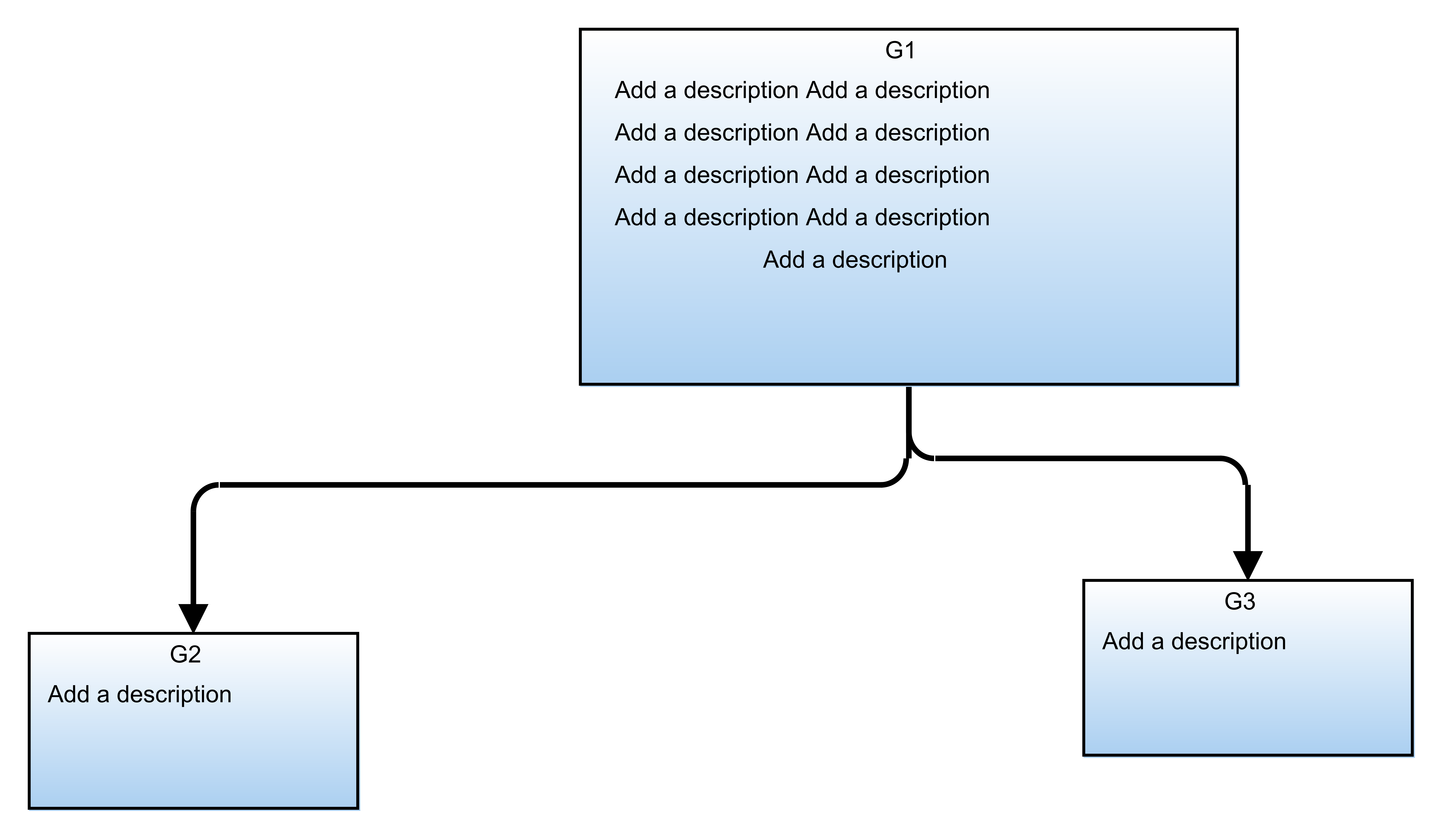

Attachment: NewAdvoCATEProject_Argument.png
(Size: 665.86KB, Downloaded 124 times)

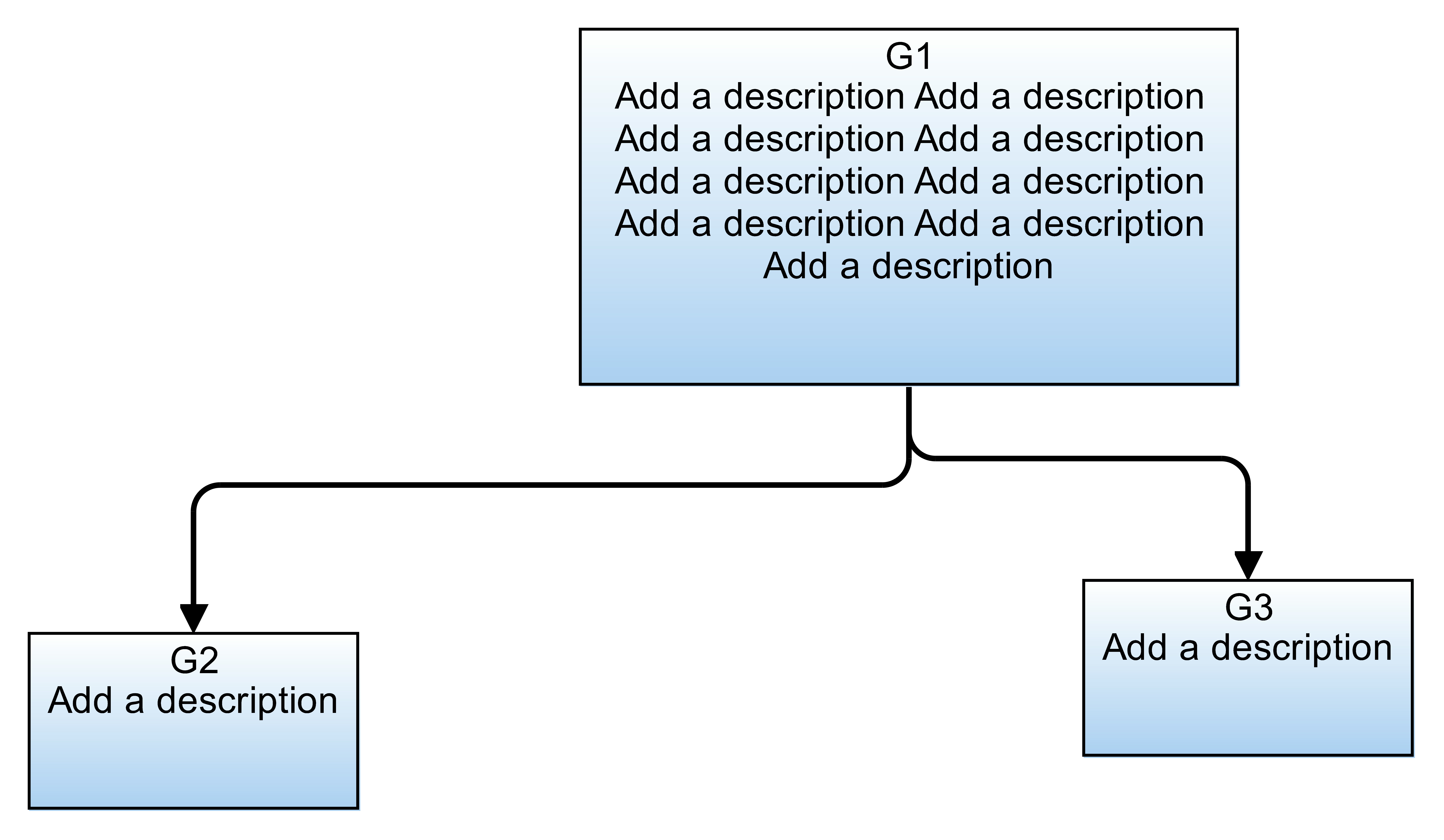

Attachment: NewAdvoCATEProject_Argument2.jpg
(Size: 2.86MB, Downloaded 115 times)

[Updated on: Mon, 17 October 2022 13:05] by Moderator
