Association Link between Instance Specification [message #1853279]

Sat, 25 June 2022 16:47

Eclipse User

Hi,

I'm trying to create an instance/object diagram using Payrus class diagram. I have created two instance specifications and configured their classifiers. However, the association link is not displayed at all. I tried show all related links but still no link is appearing. I'm expecting something like the below. Please, advise.

https://www.uml-diagrams.org/association/link.png

Regards,
Hany

Attachment: payrus.PNG
(Size: 7.53KB, Downloaded 117 times)

Re: Association Link between Instance Specification [message #1853289 is a reply to message #1853279]

Sun, 26 June 2022 14:16

Eclipse User

Hi Mohamed,

this is a really interesting example. From which author is it?

An InstanceSpecification element being an instance aka object is an individual, something unique which exists exactly once. How can an instance have a cardinality of three?

If you take a look at the UML specification there can be a "link" between InstanceSpecification elements as shown by Figure 9.30 "InstanceSpecifications representing two objects connected by a link". But what this "link" should be is not specified.

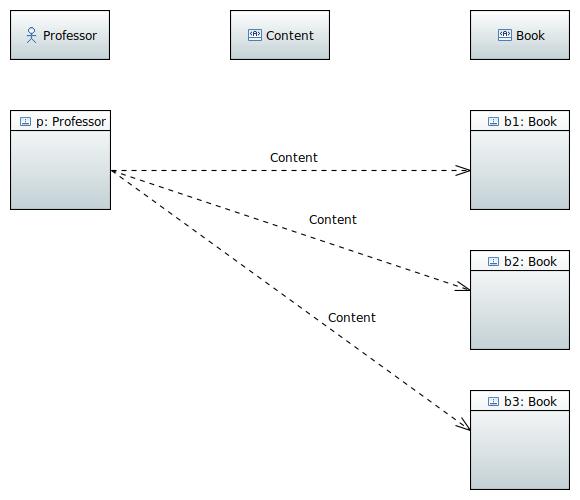

I would rather model it like below:
index.php/fa/42238/0/

/Carsten

Attachment: UML Sketch Book#.jpg
(Size: 21.21KB, Downloaded 267 times)
