Layered algorithm layers customization [message #1830763]

Mon, 03 August 2020 14:14

Andrii Bugai is currently offline

Friend

Messages: 2
Registered: August 2020

Junior Member

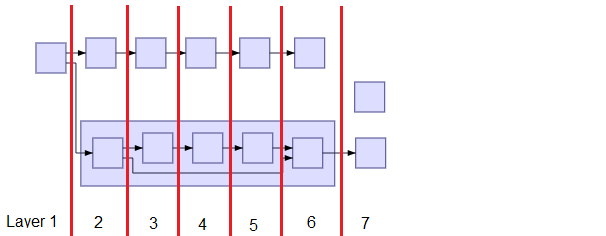

I have the following visualization of graph produced by ELK layered algorithm:

index.php/fa/38714/0/

index.php/fa/38714/0/

(red lines I have drawn in Paint just to mark the layers of the layout)

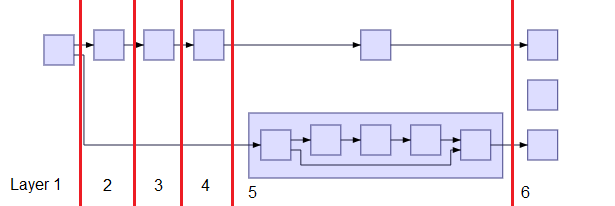

What i am trying to achieve is to make this graph visually more compact. Is it possible to make ELK build layers over child nodes and consider parent nodes as visual clusters only? Something like this:

index.php/fa/38715/0/

index.php/fa/38715/0/

I would be grateful for any ideas or workarounds

Attachment: layers.PNG
(Size: 6.05KB, Downloaded 253 times)
Attachment: layers-children.PNG
(Size: 6.46KB, Downloaded 239 times)

[Updated on: Mon, 03 August 2020 14:55]

Report message to a moderator

Re: Layered algorithm layers customization [message #1830770 is a reply to message #1830763]

Mon, 03 August 2020 16:17

Nis Wechselberg is currently offline

Nis Wechselberg

Friend

Messages: 4
Registered: February 2016

Junior Member

You could try setting the post compaction strategy (https://www.eclipse.org/elk/reference/options/org-eclipse-elk-layered-compaction-postcompaction-strategy.html) to EDGE_LENGTH. That is not exactly what you sketched, but might satisfy your needs.

Report message to a moderator

Re: Layered algorithm layers customization [message #1830777 is a reply to message #1830770]

Mon, 03 August 2020 17:16

Andrii Bugai is currently offline

Friend

Messages: 2
Registered: August 2020

Junior Member

Thank you, Nis, helped a lot!

Report message to a moderator
