How to avoid code generation of the refered ecore file in genmodel file [message #1830264]

Wed, 22 July 2020 12:03

David Sun

Messages: 45
Registered: July 2020

Member

I created A.ecore and B.ecore files in seperated emf projects(A project for A.ecore, B project for B.ecore).

For A.ecore, I created A.genmodel and generated java code from it and added it into the "dependencies" of B project.

I open B.ecore in Ecore Model Editor and Loaded(by "Load Resource..." popup menu) A.ecore file into the same Ecore Model Editor.

In B.ecore, I created EClass YYY and created a EReference for it, refered a Eclass XXX of A.ecore.

Then I created B.genmodel for B.ecore.

I open B.genmodel in EMF Generator Editor and there were B.ecore and A.ecore.

I did not need generating code from A.ecore in B project, So I deleted A.ecore.

Then I choosed "Generate All" from popup menu for B.ecore.

There was the problem, in MANIFEST.MF, it exported packages of A.ecore in "Runtime" Tab, But there was no package of A.ecore in the B project and the eclipse show me errors.

I want to kown how to avoid B project export packages of A.ecore after generating code from B.ecore ?
Thanks a lot!

Report message to a moderator

Re: How to avoid code generation of the refered ecore file in genmodel file [message #1830276 is a reply to message #1830264]

Wed, 22 July 2020 14:21

Ed Merks

Messages: 33133
Registered: July 2009

Senior Member

When you create/reload the B.genmodel you should use the dialog 's "Package Selection" page to choose A's GenPackage in the "Referenced generator models" section. I'm not sure what you meant by deleting A.ecore; it's GenPackage in A.genmodel definitely needed by B.genmodel...

Ed Merks
Professional Support: https://www.macromodeling.com/

Report message to a moderator

Re: How to avoid code generation of the refered ecore file in genmodel file [message #1830299 is a reply to message #1830276]

Thu, 23 July 2020 03:38

David Sun

Messages: 45
Registered: July 2020

Member

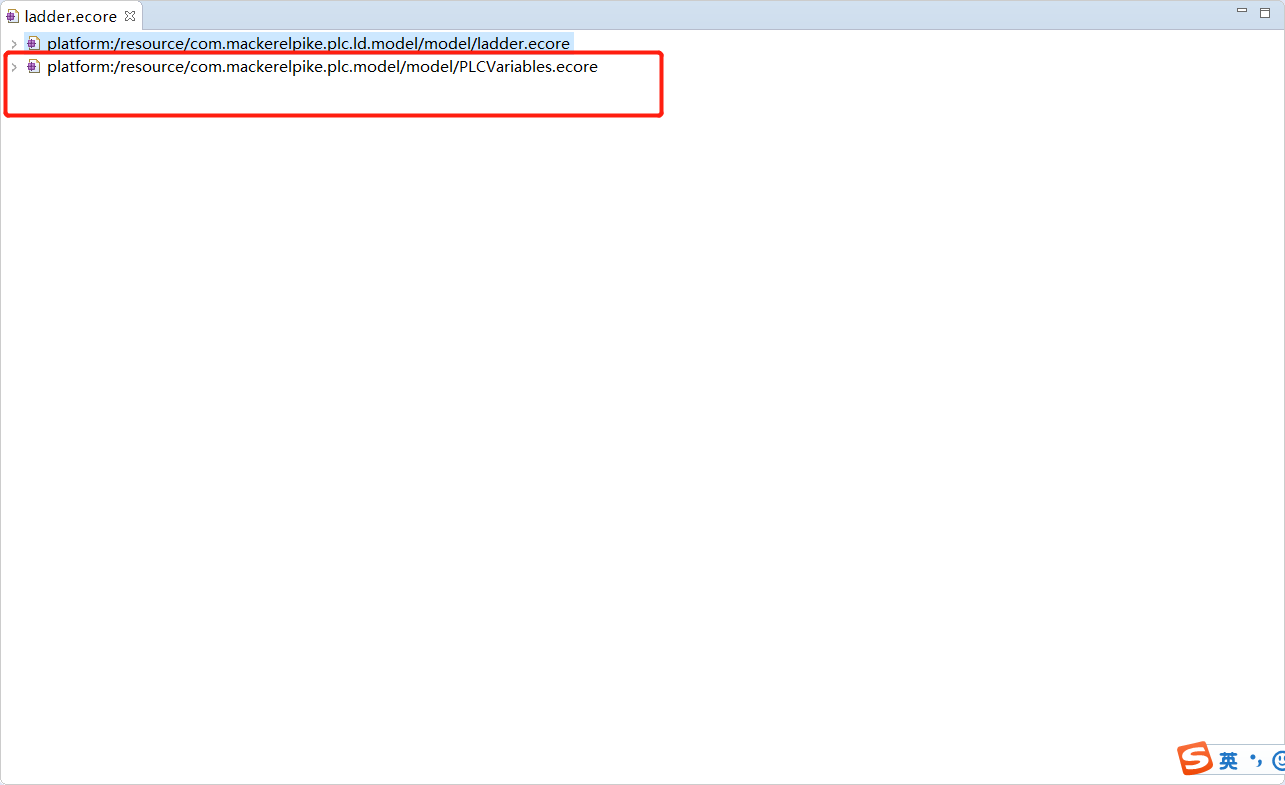

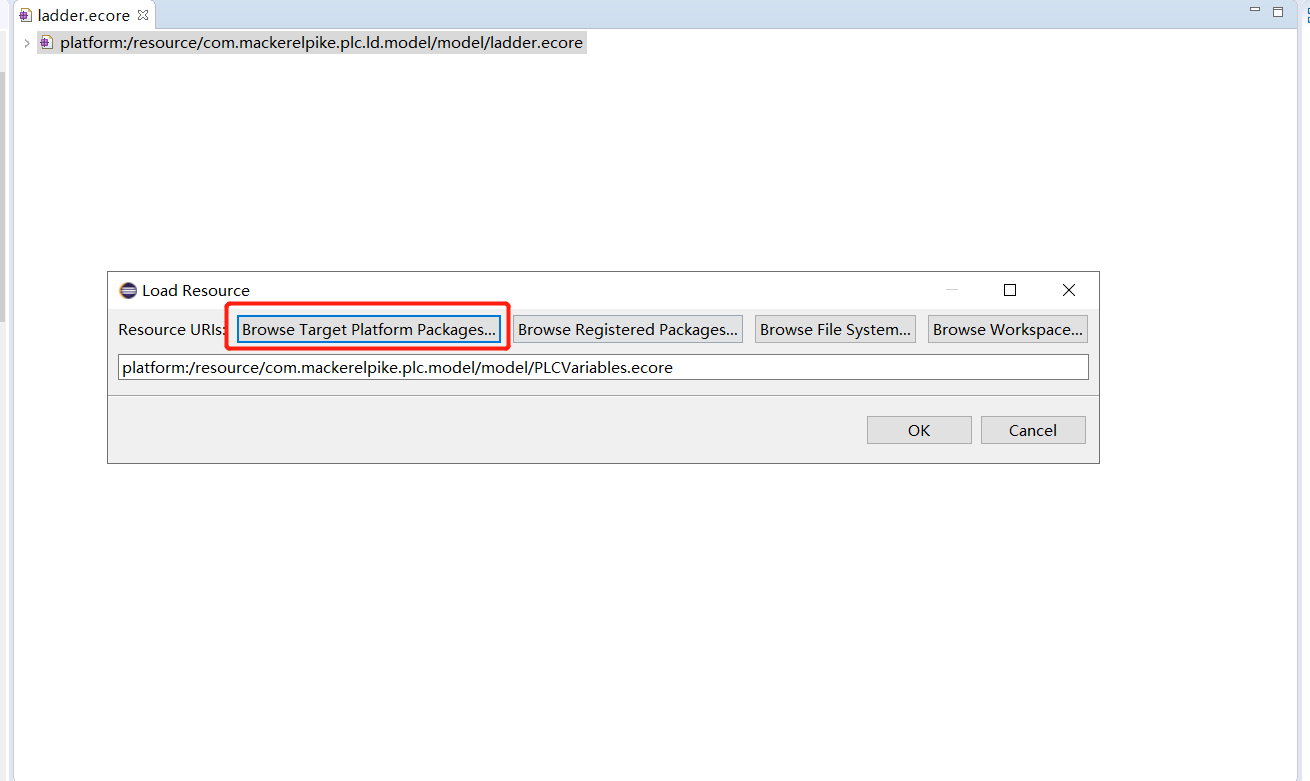

In Ecore Model Editor of ladder.ecore , I loaded PLCVariables.ecore.
index.php/fa/38629/0/

Then I created an EClass xxx for ladder.ecore, and created an EReference for xxx and refered an EClass yyy of PLCVariables.ecore.

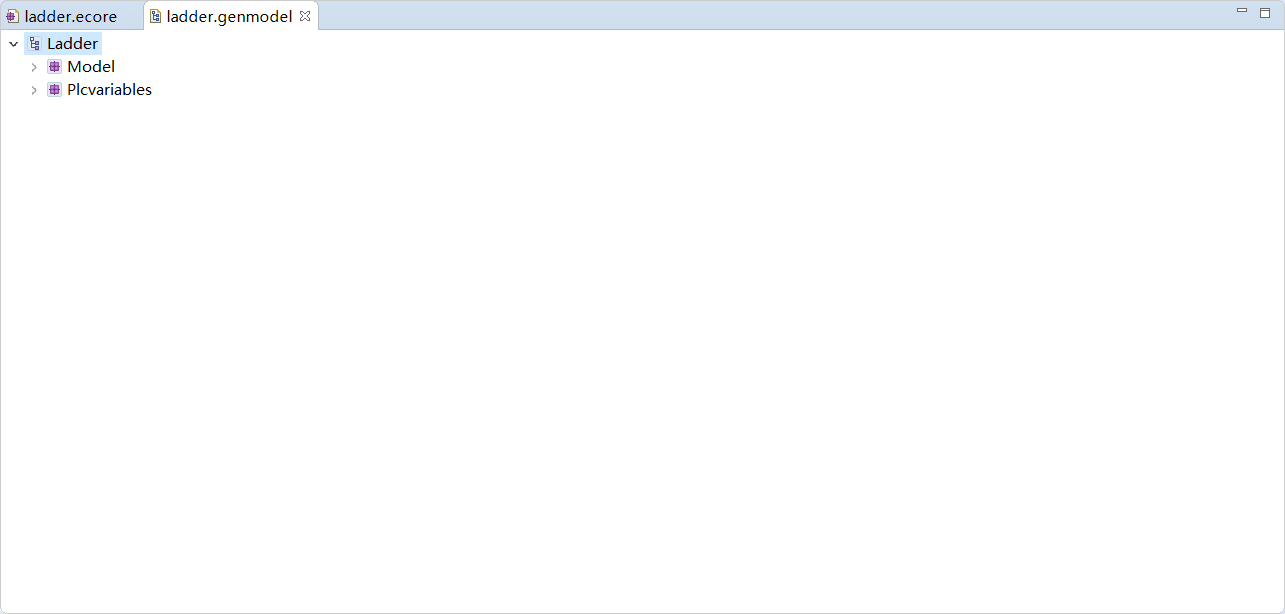

I open ladder.gemodel in EMF Generator Editor. The plcvariables was shown under Ladder.
index.php/fa/38631/0/

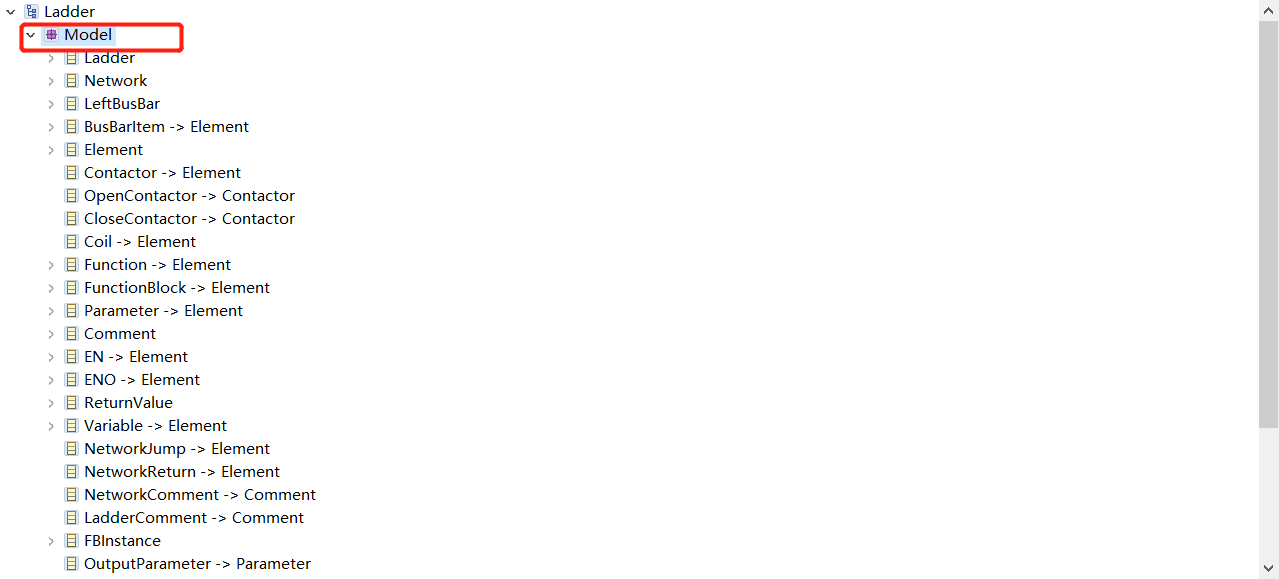

On "Model" node in EMF Generator Editor of ladder.genmodel, I selected "Generate All" from popup menu.
index.php/fa/38632/0/

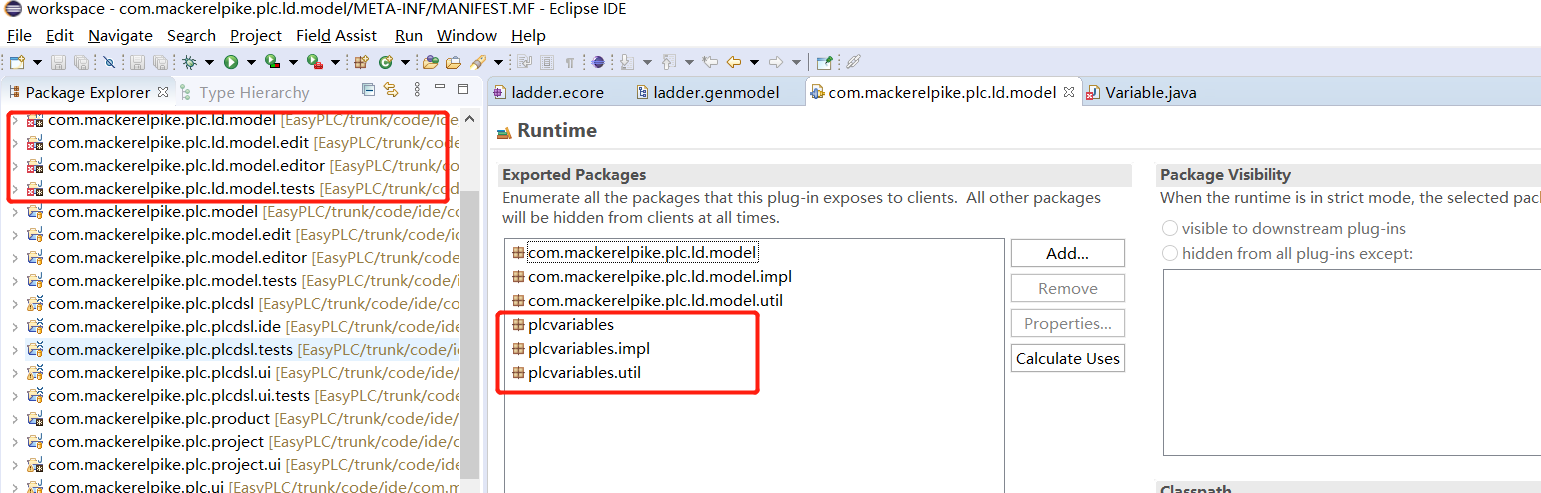

After genreating the code, The eclipse show me errors.
index.php/fa/38634/0/

The EMF added packages of plcvariables.ecore into "Runtime" . But there was no package of plcvariables.ecore in ladder.model's project.

My question is : How can I avoid those errors? I generated code of plcvariables.ecore in plcvariables.ecore's project, I added those generated packages of plcvaraibles.ecore into "dependencies" of ladder.ecore's project.How can I disable emf add pakcages of refered plcvariables.ecore automatically? I do not need those packages in ladder.ecore's project.
index.php/fa/38634/0/

Attachment: 1.png
(Size: 19.15KB, Downloaded 391 times)
Attachment: 2.png
(Size: 13.74KB, Downloaded 379 times)
Attachment: 3.png
(Size: 7.81KB, Downloaded 375 times)
Attachment: 4.png
(Size: 25.29KB, Downloaded 376 times)
Attachment: 7.png
(Size: 85.70KB, Downloaded 400 times)

Report message to a moderator

Re: How to avoid code generation of the refered ecore file in genmodel file [message #1830302 is a reply to message #1830299]

Thu, 23 July 2020 06:11

Ed Merks

Messages: 33133
Registered: July 2009

Senior Member

In your 3.png I can see that Ladder.genmodel has two GenPackages, Model and Plcvariables. That means this GenModel will generate and expects to generate all the code and infrastructure for two GenPackages. But that's not what you want because you already have a project where you've generated all the code/infrastructure for Plcvariables. So this Ladder.genmodel should contain only one genPackage element like this one:

https://git.eclipse.org/c/emf/org.eclipse.emf.git/tree/plugins/org.eclipse.emf.ecore.change/model/Change.genmodel#n12

But yours contains two of them. Instead the Pclvariables GenPackage should be referenced as a usedGenPackage like this:

https://git.eclipse.org/c/emf/org.eclipse.emf.git/tree/plugins/org.eclipse.emf.ecore.change/model/Change.genmodel#n7

To achieve that you should Reload.. the GenModel either from the Generator menubar or from the context menu of the *.genmodel resource and make sure the final page looks like this:

index.php/fa/38635/0/
