weird links [message #1800417]

Thu, 27 December 2018 14:29

David CHARLET

Messages: 12
Registered: January 2018

Junior Member

Hello,

Some of my links on graph are way too long.

For instance :

index.php/fa/34578/0/

It's very random. I was using sirius 4.18 and thought upgrading to 6.1.1 would fix this issue. Unfortunately It didn't.

Does anyone has a clue on how to fix this ?

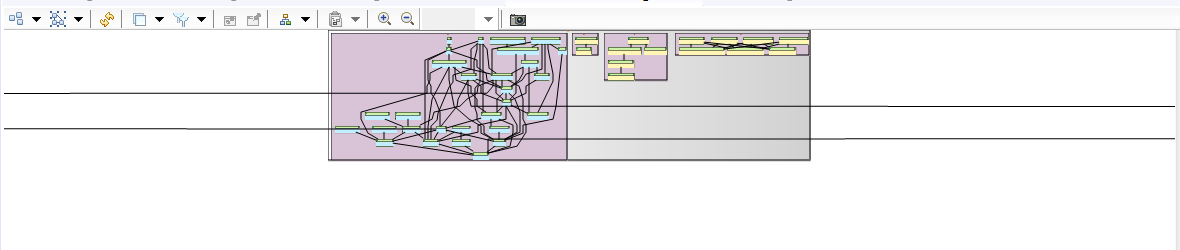

Attachment: exemple.PNG
(Size: 28.73KB, Downloaded 340 times)

[Updated on: Thu, 27 December 2018 14:30]

Report message to a moderator

Re: weird links [message #1800420 is a reply to message #1800417]

Thu, 27 December 2018 15:26

Laurent Fasani

Messages: 182
Registered: October 2014

Senior Member

Hello

I can think of many solutions.
* The first thing to try is to recreate your diagram from you semantic element.
* You can also rearrange your diagram or a part of your diagram. To do that select all the element you want to layout again, then unpin these elements (clicking in diagram toolbar) and finally click on "Arrange Selection" in diagram toolbar
* You could also change the layout algorithm. In Sirius a new feature allows the specifier(the person who makes the odesign) to configure a specific layout algorithm for a type of representation using ELK algorithm [1]

I hope it will help
Regards
Laurent

[1] https://help.eclipse.org/photon/index.jsp?topic=%2Forg.eclipse.sirius.doc%2Fdoc%2Fspecifier%2Fdiagrams%2FDiagrams.html&anchor=layout

Laurent Fasani - Obeo
Need training or professional services for Sirius?
http://www.obeodesigner.com/sirius

Report message to a moderator
