State Machine connector labels [message #1745642]

Thu, 13 October 2016 17:39

Stephen Blackwell

Messages: 138
Registered: March 2014

Senior Member

On a state machine diagram, if I create a transition between 2 states and give the transition a name of "Transition", the connector is labeled with the name of the transition.
In the transition property view, I add a guard called "Guard" and an effect called "Effect" but the connector label does not change.

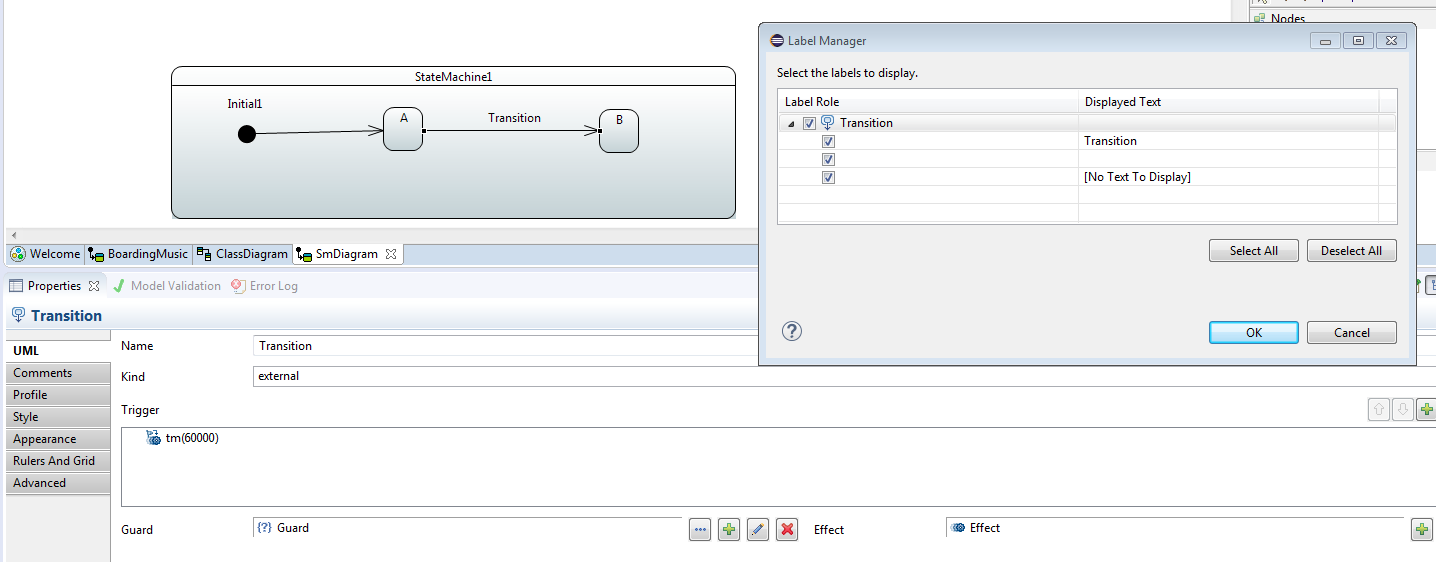

I bring up the context menu for the transition and select Label Manager but there is no option to make the connector the normal
<trigger>[guard]/<effect>

index.php/fa/27362/0/

I found this old forum thread https://www.eclipse.org/forums/index.php/t/151474/
which references this old bug
https://bugs.eclipse.org/bugs/show_bug.cgi?id=290237

which suggest that it should be possible.

Perhaps this has been changed to a CSS function?

Steve

Attachment: stateMach1.PNG
(Size: 41.73KB, Downloaded 919 times)

Report message to a moderator

Re: State Machine connector labels [message #1745808 is a reply to message #1745642]

Mon, 17 October 2016 16:19

Stephen Blackwell

Messages: 138
Registered: March 2014

Senior Member

Found this bug which seems to have been ignored since 2013.

https://bugs.eclipse.org/bugs/show_bug.cgi?id=345882

The version is very old, 0.8.1 but the bug still applies to 2.0.1. I've added this thread to the bug.

Steve

Report message to a moderator

Re: State Machine connector labels [message #1745863 is a reply to message #1745808]

Tue, 18 October 2016 13:39

Stephen Blackwell

Messages: 138
Registered: March 2014

Senior Member

For those following this thread, the issue has been confirmed. The developers appear to prefer communicating in bugzilla rather than this forum so follow bug 345882 (see previous message) for updates.

Steve

Report message to a moderator

Re: State Machine connector labels [message #1745910 is a reply to message #1745863]

Wed, 19 October 2016 09:16

Ansgar Radermacher

Messages: 461
Registered: March 2011
Location: Paris Saclay, France

Senior Member

Bug https://bugs.eclipse.org/bugs/show_bug.cgi?id=345882 has been fixed.

Please note, that the appearance of the label can be configured via the Papyrus preferences or the CSS: https://wiki.eclipse.org/MDT/Papyrus/UserGuide/CSS
The relevant parameters are bodyCutLength", "indicateParameters" and "lineBreakBeforeEffect".
The latter has the advantage that the configuration can be done on a diagram basis.

Report message to a moderator
