Headers of Sysml Diagram [message #1714847]

Tue, 17 November 2015 04:32

Eclipse User

Headers in Sysml are important part of a diagram.
i'ts possible to show headers in papyrus?
At the moment i can't find a way to do this

Re: Headers of Sysml Diagram [message #1714877 is a reply to message #1714847]

Tue, 17 November 2015 07:31

Eclipse User

https://bugs.eclipse.org/bugs/show_bug.cgi?id=354296

Re: Headers of Sysml Diagram [message #1714905 is a reply to message #1714877]

Tue, 17 November 2015 11:01

Eclipse User

I've tried to load Mars profile... but seems to be the same for me.. ho headers unless i've to enable it somewhere

Re: Headers of Sysml Diagram [message #1714922 is a reply to message #1714905]

Tue, 17 November 2015 11:54

Eclipse User

Go and vote for the bug.
I'm not sure it makes any difference but it can't hurt.

Re: Headers of Sysml Diagram [message #1714943 is a reply to message #1714922]

Tue, 17 November 2015 14:27

Eclipse User

Done...
many thanks

Re: Headers of Sysml Diagram [message #1714983 is a reply to message #1714943]

Wed, 18 November 2015 04:47

Eclipse User

Hi,

If you only need the header notation, you can use a CSS rule:

CompositeStructureDiagram > Class {
	displayHeader: true;
	textAlignment: left;
}

CompositeStructureDiagram > Class > Compartment{
	displayBorder: false;
}

However, if you need specific extra-information in this header, then this currently can't be done in Papyrus (Although native GMF may provide enough flexibility to achieve that - I'm not sure)

Regards,
Camille

Re: Headers of Sysml Diagram [message #1714992 is a reply to message #1714983]

Wed, 18 November 2015 06:15

Eclipse User

Thank you for your help

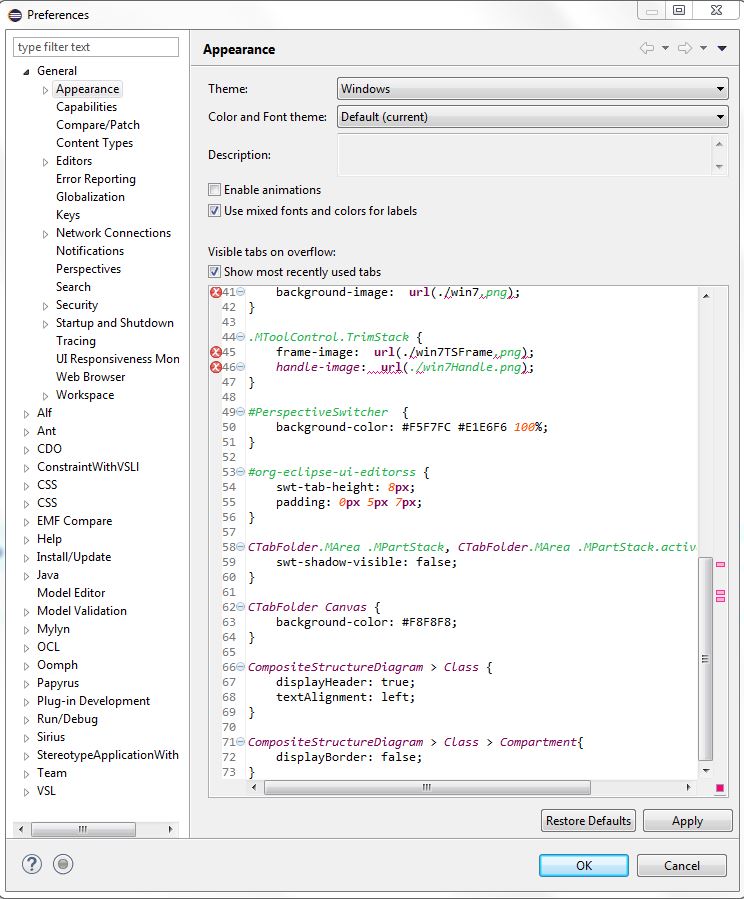

but i've added this code as explained in This guide, but nothing is changed in my diagram...
Have I make some mistakes?
index.php/fa/23994/0/

Attachment: Cattura3.JPG
(Size: 116.55KB, Downloaded 2347 times)

Re: Headers of Sysml Diagram [message #1714996 is a reply to message #1714992]

Wed, 18 November 2015 06:40

Eclipse User

Hi,

Papyrus Diagrams do not rely on Eclipse's CSS configuration; they use their own

See https://wiki.eclipse.org/MDT/Papyrus/UserGuide/CSS

Regards,
Camille

Re: Headers of Sysml Diagram [message #1715021 is a reply to message #1714996]

Wed, 18 November 2015 09:34

Eclipse User

In theory one can edit Papyrus Sysml css Stylesheet rename them and use it as a personal theme...
it can't be so difficult...
but i can't find where these themes are stored: index.php/fa/23996/0/

Attachment: Cattura4.JPG
(Size: 15.32KB, Downloaded 2195 times)

[Updated on: Wed, 18 November 2015 10:24] by Moderator

Re: Headers of Sysml Diagram [message #1715025 is a reply to message #1714983]

Wed, 18 November 2015 10:17

Eclipse User

Hi Camille,

Camille Letavernier wrote on Wed, 18 November 2015 04:47

Hi,

If you only need the header notation, you can use a CSS rule:
CompositeStructureDiagram > Class {
	displayHeader: true;
	textAlignment: left;
}

CompositeStructureDiagram > Class > Compartment{
	displayBorder: false;
}
However, if you need specific extra-information in this header, then this currently can't be done in Papyrus (Although native GMF may provide enough flexibility to achieve that - I'm not sure)

Regards,
Camille

It's even a lot complexer than that. For instance, have a look at page 225 (Figure D.15 and D.16) of the SysML 1.4 specification.
In figure D.16, the frame of the diagram represents a block (AutomotiveDomain), but the contents of the BDD don't "match" with any compartment of a Block, so it's currently impossible to mimic this kind of behaviour using css in Papyrus.

So the example you gave above only works well in the specific case that the diagram content of a specific diagram is currently captured by a specific compartment in Papyrus (composite structure, activity diagram, package diagram, block diagram owned by a Package, ...), but definitly not for all cases (BDD owned by a block, requirement diagram owned by a requirement, ...).

Re: Headers of Sysml Diagram [message #1715027 is a reply to message #1715025]

Wed, 18 November 2015 10:33

Eclipse User

Hi,

In this case, I guess it's the responsibility of the Viewpoint & Expansion customizations, but I know they are still limited today. Hopefully, since the SysML 1.4 implementation is used to highlight the limitations of these frameworks (And improve them), we should get the required capabilities in Neon.

I think that what we lack today to get this complete support is the ability to customize text/labels in Diagrams (And maybe partial styling as well to get parts of this label in bold)

The Viewpoint mechanism should be able to allow defining BDDiagrams inside Blocks, just like it already allows drawing a ClassDiagram inside a Class (Although with limitations/bugs)

Camille

Re: Headers of Sysml Diagram [message #1716655 is a reply to message #1715027]

Mon, 07 December 2015 04:51

Eclipse User

Camille Letavernier wrote on Wed, 18 November 2015 10:33

Hi,

In this case, I guess it's the responsibility of the Viewpoint & Expansion customizations, but I know they are still limited today. Hopefully, since the SysML 1.4 implementation is used to highlight the limitations of these frameworks (And improve them), we should get the required capabilities in Neon.

I think that what we lack today to get this complete support is the ability to customize text/labels in Diagrams (And maybe partial styling as well to get parts of this label in bold)

The Viewpoint mechanism should be able to allow defining BDDiagrams inside Blocks, just like it already allows drawing a ClassDiagram inside a Class (Although with limitations/bugs)

Camille

For those interested: see
[SysML 1.4] https://bugs.eclipse.org/bugs/show_bug.cgi?id=354296
[UML/Papyrus Core] https://bugs.eclipse.org/bugs/show_bug.cgi?id=483761

Re: Headers of Sysml Diagram [message #1724178 is a reply to message #1716655]

Mon, 22 February 2016 02:30

Eclipse User

Hello,

I've recently downloaded Papyrus 1.1.3 and started modeling a few diagrams.

I've got also an issue dealing with the SysML diagram frame.

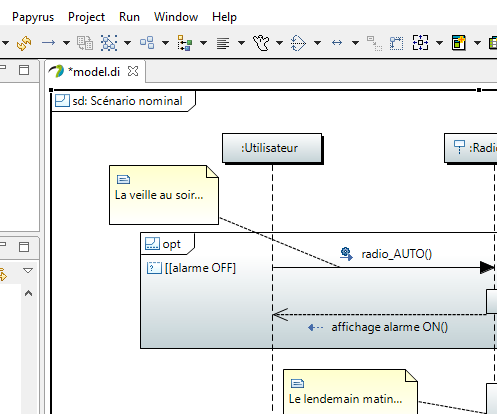

I know it can be done as I can see one of a Sequence Diagram, attached, (and did nothing special for getting it), but no way on a BDD, UC or requirements...
index.php/fa/25064/0/<br />

As a workaround I couldn't copy/paste the frame so it's frustrating a lot...

Does anybody succeeded to get frames, even running a script, importing or whatever means ??
Having a SysML compliant tool without this feature is just disappointing

Olivier

Attachment: snip_20160222082142.png
(Size: 21.28KB, Downloaded 2700 times)

Re: Headers of Sysml Diagram [message #1724283 is a reply to message #1724178]

Mon, 22 February 2016 14:06

Eclipse User

I'm not sure what's not clear from the discussion above?

[Updated on: Mon, 22 February 2016 14:08] by Moderator

Re: Headers of Sysml Diagram [message #1727345 is a reply to message #1724283]

Tue, 22 March 2016 06:56

Eclipse User

Hi,
as I understand it, it's still not possible to include headers in diagrams especially for use case and stakeholde diagrams in Papyrus?

Right?

Greetings
Paul

[Updated on: Tue, 22 March 2016 06:57] by Moderator

Re: Headers of Sysml Diagram [message #1736143 is a reply to message #1724283]

Mon, 27 June 2016 02:39

Eclipse User

Klaas Gadeyne wrote on Mon, 22 February 2016 19:06
