References in EMF [message #1068042]

Thu, 11 July 2013 19:17

Phil H

Messages: 267
Registered: November 2012

Senior Member

Hi,

I'm wondering how references are handled in EMF. I've got the following metamodel witht he according emf code:

index.php/fa/15571/0/

class Platform{
  	unsettable attr EString name = "Platform";
  	attr EString reference = "";
  	attr EString identifier = "";

  	val Variationpoint[*] variationpoints;
}

class Variationpoint{
	unsettable attr EString name = "Variationpoint";
	attr EString description = "";
}

Normally I would expect that this reference is bidirectional. So that Platform has an arbitrary number of Variationpoints and a Variationpoint knows its paltform. But this doesn't seems to be the case? I'm not able to acces the according Platform with an Variationpoint object.

Attachment: references.JPG
(Size: 20.07KB, Downloaded 513 times)

Report message to a moderator

Re: References in EMF [message #1068046 is a reply to message #1068042]

Thu, 11 July 2013 19:21

Ed Merks

Messages: 33141
Registered: July 2009

Senior Member

Phil,

Comments below.

On 11/07/2013 9:17 PM, Phil H wrote:
> Hi,
>
> I'm wondering how references are handled in EMF. I've got the following metamodel witht he according emf code:
>
>
>
>
> class Platform{
> unsettable attr EString name = "Platform";
> attr EString reference = "";
> attr EString identifier = "";
>
> val Variationpoint[*] variationpoints;
> }
>
> class Variationpoint{
> unsettable attr EString name = "Variationpoint";
> attr EString description = "";
> }
>
>
> Normally I would expect that this reference is bidirectional.
Is this Emfatic syntax? Is variationpointsa containment reference?
> So that Platform has an arbitrary number of Variationpoints and a Variationpoint knows its paltform.
Where? I don't see a reference to Platform from Variationpoint.
> But this doesn't seems to be the case? I'm not able to acces the according Platform with an Variationpoint object.
I don't see two references only one unidirectional reference.
>
>

Ed Merks
Professional Support: https://www.macromodeling.com/

Report message to a moderator

Re: References in EMF [message #1068139 is a reply to message #1068046]

Fri, 12 July 2013 11:52

Phil H

Messages: 267
Registered: November 2012

Senior Member

Hi Ed,

yes it's emfatic syntax. The keyword val means a "by value" EReference (EReference.containment = true).

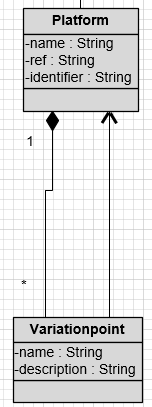

I thought a aggregation is handled bidirectional, but indeed it's unidirectional. So to overcome this, I tried to use an additional reference:

index.php/fa/15578/0/

But when I create a Platform and add a Variationpoint to this Platform, the Variationpoint don't know it's platform. The user has to assign the reference in the property view manually.

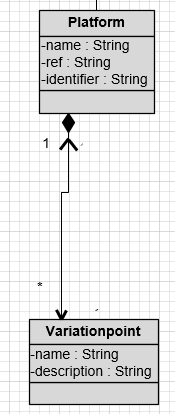

How can I define a bidirectional aggregation in EMF?:

index.php/fa/15579/0/

Attachment: aggregation_reference.png
(Size: 4.53KB, Downloaded 484 times)
Attachment: bidirectional.png
(Size: 5.02KB, Downloaded 731 times)

Report message to a moderator

Re: References in EMF [message #1068144 is a reply to message #1068139]

Fri, 12 July 2013 12:11

Ed Merks

Messages: 33141
Registered: July 2009

Senior Member

Phil,

I don't know the Emfatic syntax. In the structured editor you set the
opposite feature of one of the references to point at the other in the
properties view.

On 12/07/2013 1:52 PM, Phil H wrote:
> Hi Ed,
>
> yes it's emfatic syntax. The keyword val means a "by value" EReference (EReference.containment = true).
>
> I thought a aggregation is handled bidirectional, but indeed it's unidirectional. So to overcome this, I tried to use an additional reference:
>
>
>
> But when I create a Platform and add a Variationpoint to this Platform, the Variationpoint don't know it's platform. The user has to assign the reference in the property view manually.
>
> How can I define a bidirectional aggregation in EMF?:
>
>
>
>

Ed Merks
Professional Support: https://www.macromodeling.com/

Report message to a moderator
