Lost connections on deletion [message #677055]

Tue, 07 June 2011 08:23

Eclipse User

Good day,

probably this is a well know issue, if so could any one point what is wrong here.

Let's consider this simple model: A transformation can contain a port. A record can contain a field. A port has inputPort and outputPort references of field type. Thus the port may have two references to the same field. We have a diagram editor where a transformation box has a port box and a record box has a field box. We also have two connections from one port to one field.

index.php/fa/2948/0/

Now if we delete one connection, the second connection is still shown, but if we
close the diagram and reopen it the second connection has gone.

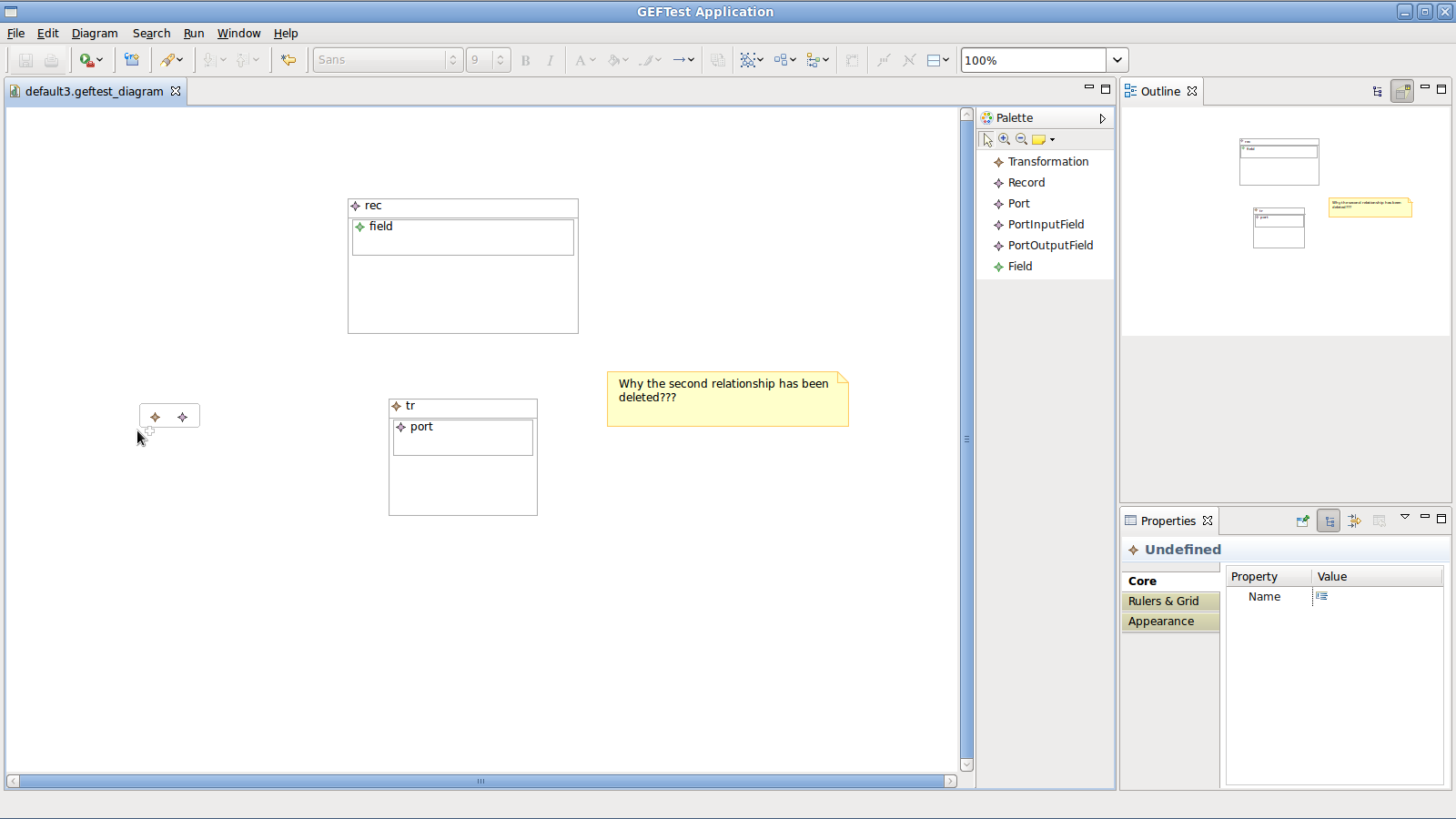

index.php/fa/2950/0/

The question: have we a misconfigured diagram editor? If so, can anyone point what is needed to be done to keep the second connection if the first is deleted.

Your help is greatly appreciated.

Attachment: before.png
(Size: 68.78KB, Downloaded 577 times)
Attachment: after.png
(Size: 62.33KB, Downloaded 520 times)

[Updated on: Tue, 07 June 2011 08:29] by Moderator
