constraint ocl [message #476213]

Tue, 25 September 2007 14:16

Eclipse User

Originally posted by: briandwilliam.hotmail.com

hi,

I have an ocl constraint who is defined on a connection in my gmfmap , it's
for initialise a label of my connection.
my connection does not appear on the diagram !
however it appears in the model !!! and the string label property is not
defined ????

my constraint ocl is applied on a link mapping of my generator model
(gmfmap) :

if
self.redefinitionAccrochePort.contenu.redefinitionDescripteu rDeReferencePort
Syn.redefinitionRefDescSyn.direction->forAll(d
| d = Direction::IN) then
self.role='receveur'
else
self.role='emetteur'
endif

the constraint is valid but doesn't works correcty !
have you got an idea ??

thanks

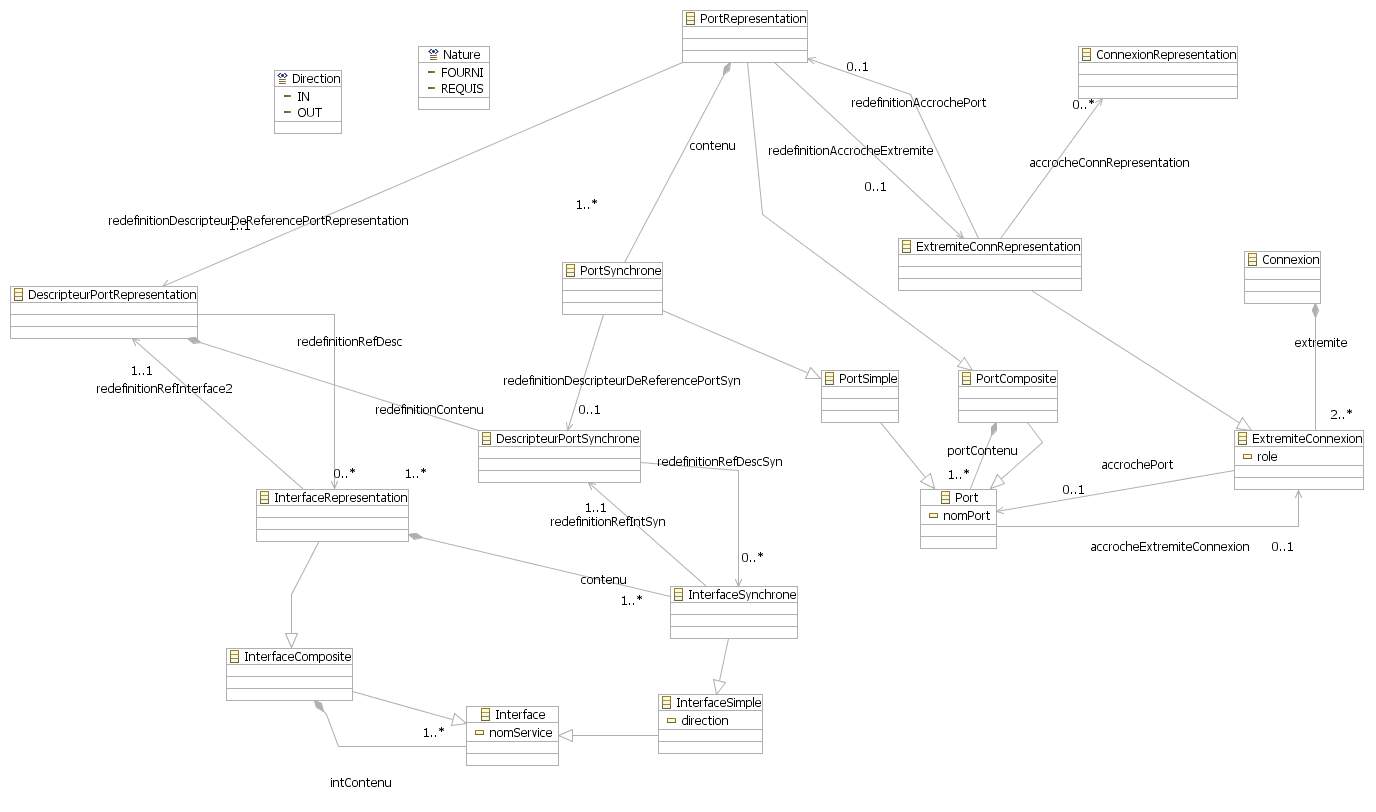

Attachment: model.jpeg
(Size: 75.33KB, Downloaded 140 times)

Report message to a moderator

Re: constraint ocl [message #476241 is a reply to message #476213]

Fri, 28 September 2007 15:32

james bruck

Messages: 1724
Registered: July 2009

Senior Member

Hi Briand,

In terms of why the connection does not appear in the diagram and why the
string label property is not defined .. I think that you might want to try
the GMF newsgroup.

Also, can you clarify what you mean by ... "the constraint is valid but
doesn't works correcty !". In what way does it not work correctly? The OCL
newsgroup would be appropriate for OCL type questions.

- James.
