Adding connection decorations =GEF Mindmap Tutorial series. [message #1863673]

Tue, 20 February 2024 13:48

Eclipse User

Hello everyone,

I need to add connection decorations properly clipped (which lies within the responsibility of the interpolator), and a 'clickable area' (a transparent fat curve that overlays the connection) in this code https://github.com/itemis/gef-mindmap-tutorial/tree/master

So How add FXBendConnectionPolicy to provide interaction support for manipulating connections that are orthogonally routed ?

What classes do I need to add codes to?
SimpleMindMapModule, MindMapConnection, MindMapConnectionPart, MindMapConnectionVisual, CreateNewConnectionOnClickHandler, and CreateConnectionFeedbackPart.

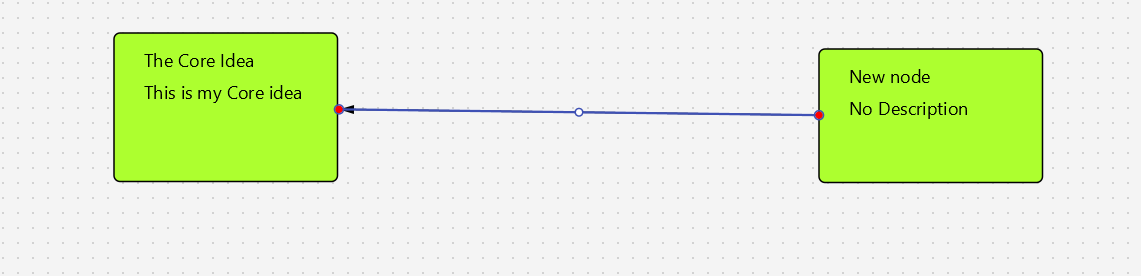

index.php/fa/43990/0/

I inform you that I have read the references :
https://github.com/eclipse/gef/wiki/FX
https://github.com/eclipse/gef/wiki/MVC
https://github.com/eclipse/gef/wiki/MVC-Logo-Example#logo-example-standalone-eclipse-ui-web

Best regards,

Attachment: Connectiondecoration.png
(Size: 10.26KB, Downloaded 192 times)

[Updated on: Tue, 20 February 2024 13:51] by Moderator

Re: Adding connection decorations =GEF Mindmap Tutorial series. [message #1863682 is a reply to message #1863673]

Wed, 21 February 2024 02:37

Eclipse User

Hello Saint-martin!

You may take a look at the following blog post:
https://blogs.itemis.com/en/getting-started-with-eclipse-gef-the-mindmap-tutorial
As far as I remember, it uses orthogonally routed edges.

Hope that helps!
Tamás

Re: Adding connection decorations =GEF Mindmap Tutorial series. [message #1863702 is a reply to message #1863682]

Wed, 21 February 2024 16:55

Eclipse User

Hi Tamas Miklossy, Thank you for your response!
Yes, I read the course https://blogs.itemis.com/en/getting-started-with-eclipse-gef-the-mindmap-tutorial,
But I would like to add characteristics to this object: MindMapConnectionPart, like GeometricCurvePart .java in this example MVC LOGO: https://github.com/eclipse/gef/blob/master/org.eclipse.gef.mvc.examples.logo/src/org/eclipse/gef/mvc/examples/logo /parts/GeometricCurvePart.java
https://github.com/eclipse/gef/blob/master/.changelog/Orthogonal_Routing_Polyline_Interpolator.png?raw=true
Best regards,
