Associations to EReferences in UML2 profile to .ecore/.genmodel [message #1857705]

Tue, 21 February 2023 16:51

Eclipse User

Hi, I have a question about the transformation from UML2 to Ecore/genmodel for a Papyrus profile. (I'm not sure if I should it post it here, or in the EMF forum or the Papyrus forum; apologies if it is more suitable for any of the other forums).

Basically I have a simple profile in which I define a (containment) association between two stereotypes (see screen-shot and attached project) called "Contraption" and "Gizmo", with the association going from "Contraption" to "Gizmo". However, when I generate the corresponding .genmodel and .ecore from the .uml file (using the standard "New -> Other... -> EMF Generator Model approach) there is no EReference in "Contraption" pointing to "Gizmo", (see screen shot and attached project).

My question is whether this is a bug or is it expected behaviour from the genmodel generator?

If it is expected that EReferences are not generated from Associations, what is the "proper" way to generate such references? Perhaps an annotation on the association? Or Perhaps create a property in the container object with the "EReference" stereotype? Or is there another way?

Thanks

PS: I'm using Papyrus 4.8 (2020-06) and the UML2 Extender SDK 5.5.1

Attachment: contraptions.zip
(Size: 32.96KB, Downloaded 112 times)

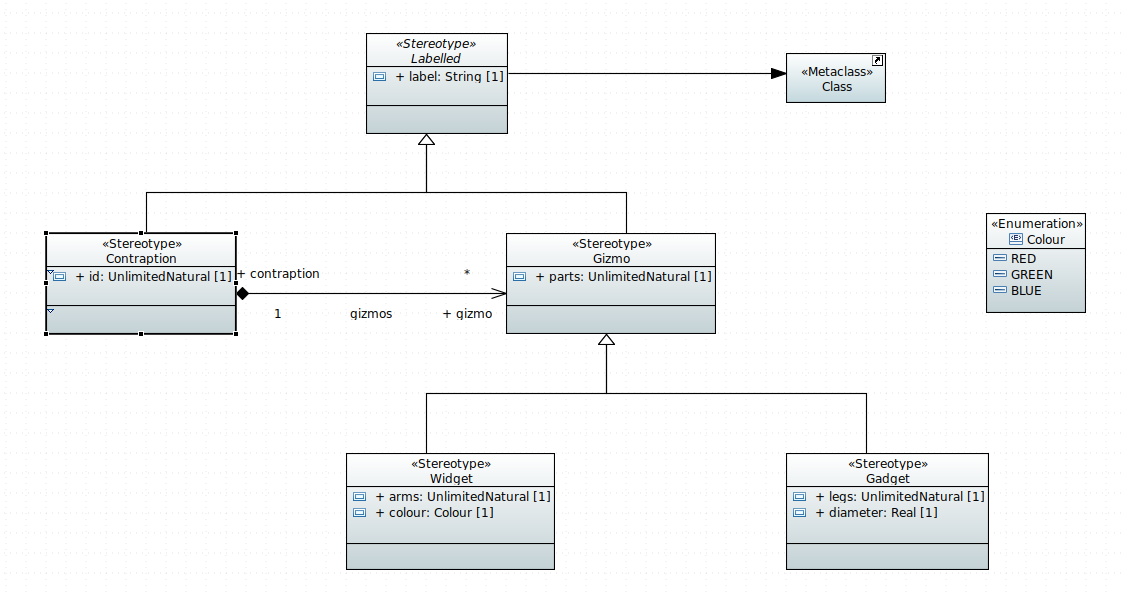

Attachment: contraptions_profile.png
(Size: 47.54KB, Downloaded 97 times)

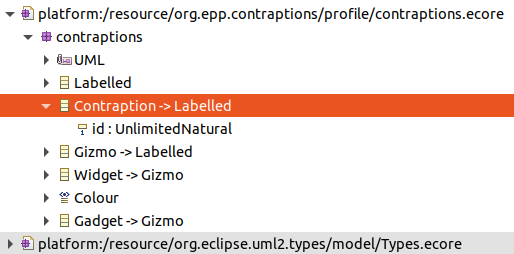

Attachment: contraptions.ecore.png
(Size: 25.50KB, Downloaded 88 times)

Re: Associations to EReferences in UML2 profile to .ecore/.genmodel [message #1857709 is a reply to message #1857705]

Wed, 22 February 2023 01:23

Eclipse User

Hi

UML Associations have considerable flexibility and so considerable opportunity for confusion.

At first glance I could see nothing wrong so as is often a good practice I compare with something that works.

Your association has two association-owned ends. The normal idiom is for at least one of the ends to be class-owned so that it can be reified into an EClass.

Regards

Ed Willink

Re: Associations to EReferences in UML2 profile to .ecore/.genmodel [message #1857719 is a reply to message #1857709]

Wed, 22 February 2023 10:31

Eclipse User

https://bugs.eclipse.org/bugs/show_bug.cgi?id=581575 raised since IMHO your 'mistake' should have triggered some helpful diagnosis.

[SOLVED] Re: Associations to EReferences in UML2 profile to .ecore/.genmodel [message #1857720 is a reply to message #1857719]

Wed, 22 February 2023 10:57

Eclipse User

Ah! Indeed that's it. I set the owner of the "gizmos" end to be Classifier and it generated the expected .ecore.

And I agree that a warning to the user would be useful in this case.

Thanks
