Home » Modeling » Ecore Tools » Relations not displayed in diagram
Relations not displayed in diagram [message #1855958] Fri, 11 November 2022 16:16 Go to next message
Jan Böttcher is currently offline Jan BöttcherFriend
Messages: 3
Registered: November 2022
Junior Member
When I create (any) Relation between two classes nothing is displayed in the diagram editor.

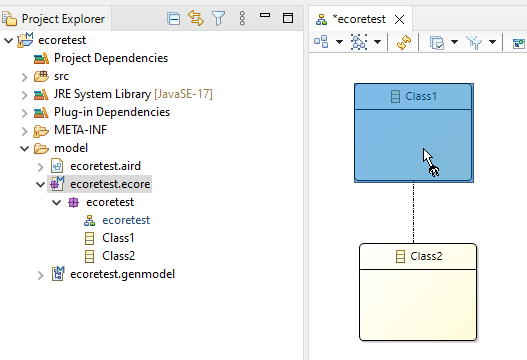

Create Reference:
index.php/fa/42696/0/

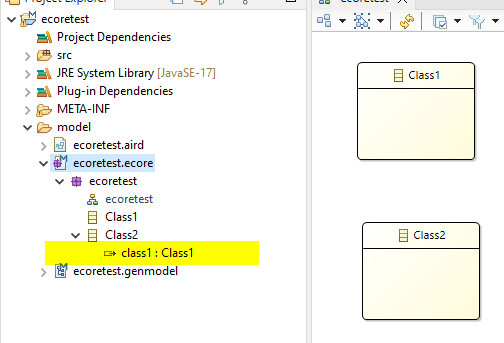

Result:
index.php/fa/42697/0/

Any ideas whats going on or what I'm doing wrong?
  • Attachment: p1 .png
    (Size: 20.15KB, Downloaded 156 times)
  • Attachment: p2 .png
    (Size: 17.58KB, Downloaded 159 times)

Report message to a moderator

Re: Relations not displayed in diagram [message #1855972 is a reply to message #1855958] Sun, 13 November 2022 13:31 Go to previous messageGo to next message
Pierre-Charles David is currently offline Pierre-Charles DavidFriend
Messages: 703
Registered: July 2009
Senior Member
Hi,
Do you see anything in the error log?
IIRC, this kind of symptom can happen when the Java helper classes which are used by the modeler can not be loaded and/or executed properly.

Pierre-Charles David - Obeo

Need training or professional services for Sirius?
http://www.obeodesigner.com/sirius

Report message to a moderator

Re: Relations not displayed in diagram [message #1855977 is a reply to message #1855972] Mon, 14 November 2022 07:34 Go to previous messageGo to next message
Jan Böttcher is currently offline Jan BöttcherFriend
Messages: 3
Registered: November 2022
Junior Member
Thank you, yes there are log entries that seem to be connected to the problem:

!ENTRY org.eclipse.sirius 2 0 2022-11-14 07:23:04.264
!MESSAGE the following mapping semantic candidates expression could not be correctly evaluated : service:getEOppositeEReferences(diagram)
!STACK 0
org.eclipse.sirius.common.tools.api.interpreter.EvaluationException: Exception while calling service org.eclipse.emf.ecoretools.design.service.DesignServices.getEOppositeEReferences(org.eclipse.emf.ecore.EPackage).
	at org.eclipse.sirius.common.tools.internal.interpreter.MonomorphicService.fail(MonomorphicService.java:98)
	at org.eclipse.sirius.common.tools.internal.interpreter.MonomorphicService.call(MonomorphicService.java:92)
	at org.eclipse.sirius.common.tools.internal.interpreter.PolymorphicService.call(PolymorphicService.java:67)
	at org.eclipse.sirius.common.tools.internal.interpreter.ServiceInterpreter.callService(ServiceInterpreter.java:164)
	at org.eclipse.sirius.common.tools.internal.interpreter.ServiceInterpreter.evaluate(ServiceInterpreter.java:156)
	at org.eclipse.sirius.tools.internal.interpreter.SessionInterpreter.evaluate(SessionInterpreter.java:179)
	at org.eclipse.sirius.common.tools.api.interpreter.IInterpreter.evaluateCollection(IInterpreter.java:148)
	at org.eclipse.sirius.diagram.business.api.query.DiagramElementMappingQuery.evaluateCandidateExpression(DiagramElementMappingQuery.java:440)
	at org.eclipse.sirius.diagram.business.internal.sync.AbstractSynchronizerHelper.evaluateCandidateExpression(AbstractSynchronizerHelper.java:109)
	at org.eclipse.sirius.diagram.business.internal.sync.AbstractSynchronizerHelper.getSemanticCandidates(AbstractSynchronizerHelper.java:171)
	at org.eclipse.sirius.diagram.business.internal.sync.DEdgeSynchronizerHelper.computeEdgeCandidatesWithDomain(DEdgeSynchronizerHelper.java:122)
	at org.eclipse.sirius.diagram.business.internal.sync.DEdgeSynchronizerHelper.computeNowEdgeCandidates(DEdgeSynchronizerHelper.java:108)
	at org.eclipse.sirius.diagram.business.internal.sync.DDiagramSynchronizer.computeEdgeCandidates(DDiagramSynchronizer.java:990)
	at org.eclipse.sirius.diagram.business.internal.sync.DDiagramSynchronizer.createEdgeCandidates(DDiagramSynchronizer.java:1258)
	at org.eclipse.sirius.diagram.business.internal.sync.DDiagramSynchronizer.refreshEdgeMapping(DDiagramSynchronizer.java:1210)
	at org.eclipse.sirius.diagram.business.internal.sync.DDiagramSynchronizer.processEdgeMappingsRefresh(DDiagramSynchronizer.java:467)
	at org.eclipse.sirius.diagram.business.internal.sync.DDiagramSynchronizer.refreshOperation(DDiagramSynchronizer.java:388)
	at org.eclipse.sirius.diagram.business.internal.sync.DDiagramSynchronizer.refresh(DDiagramSynchronizer.java:316)
	at org.eclipse.sirius.diagram.business.internal.dialect.DiagramDialectServices.refresh(DiagramDialectServices.java:240)
	at org.eclipse.sirius.business.internal.dialect.DialectManagerImpl.refresh(DialectManagerImpl.java:106)
	at org.eclipse.sirius.business.api.dialect.command.RefreshRepresentationsCommand.doExecute(RefreshRepresentationsCommand.java:122)
	at org.eclipse.emf.transaction.RecordingCommand.execute(RecordingCommand.java:130)
	at org.eclipse.emf.common.command.CompoundCommand.execute(CompoundCommand.java:261)
	at org.eclipse.emf.common.command.CompoundCommand.execute(CompoundCommand.java:261)
	at org.eclipse.emf.transaction.util.TriggerCommand.execute(TriggerCommand.java:108)
	at org.eclipse.emf.workspace.impl.WorkspaceCommandStackImpl.executeTriggers(WorkspaceCommandStackImpl.java:393)
	at org.eclipse.emf.transaction.impl.TransactionalEditingDomainImpl.precommit(TransactionalEditingDomainImpl.java:707)
	at org.eclipse.emf.transaction.impl.TransactionImpl.commit(TransactionImpl.java:409)
	at org.eclipse.emf.workspace.AbstractEMFOperation.execute(AbstractEMFOperation.java:150)
	at org.eclipse.gmf.runtime.common.core.command.CompositeCommand.doExecuteWithResult(CompositeCommand.java:404)
	at org.eclipse.gmf.runtime.common.core.command.AbstractCommand.execute(AbstractCommand.java:135)
	at org.eclipse.sirius.diagram.ui.tools.internal.commands.WrappingCommandIgnoringAffectedFiles.execute(WrappingCommandIgnoringAffectedFiles.java:125)
	at org.eclipse.core.commands.operations.DefaultOperationHistory.execute(DefaultOperationHistory.java:496)
	at org.eclipse.sirius.diagram.ui.tools.internal.editor.DDiagramCommandStack.execute(DDiagramCommandStack.java:73)
	at org.eclipse.sirius.diagram.ui.tools.internal.editor.DDiagramCommandStack.execute(DDiagramCommandStack.java:54)
	at org.eclipse.gmf.runtime.diagram.ui.parts.DiagramCommandStack.execute(DiagramCommandStack.java:145)
	at org.eclipse.gef.tools.AbstractTool.executeCommand(AbstractTool.java:425)
	at org.eclipse.gef.tools.AbstractTool.executeCurrentCommand(AbstractTool.java:438)
	at org.eclipse.gef.tools.AbstractConnectionCreationTool.handleCreateConnection(AbstractConnectionCreationTool.java:256)
	at org.eclipse.gef.tools.ConnectionCreationTool.handleButtonDown(ConnectionCreationTool.java:77)
	at org.eclipse.gef.tools.AbstractTool.mouseDown(AbstractTool.java:1091)
	at org.eclipse.gef.EditDomain.mouseDown(EditDomain.java:245)
	at org.eclipse.gef.ui.parts.DomainEventDispatcher.dispatchMousePressed(DomainEventDispatcher.java:348)
	at org.eclipse.draw2d.LightweightSystem$EventHandler.mouseDown(LightweightSystem.java:523)
	at org.eclipse.swt.widgets.TypedListener.handleEvent(TypedListener.java:196)
	at org.eclipse.swt.widgets.EventTable.sendEvent(EventTable.java:89)
	at org.eclipse.swt.widgets.Display.sendEvent(Display.java:4243)
	at org.eclipse.swt.widgets.Widget.sendEvent(Widget.java:1060)
	at org.eclipse.swt.widgets.Display.runDeferredEvents(Display.java:4060)
	at org.eclipse.swt.widgets.Display.readAndDispatch(Display.java:3632)
	at org.eclipse.e4.ui.internal.workbench.swt.PartRenderingEngine$5.run(PartRenderingEngine.java:1154)
	at org.eclipse.core.databinding.observable.Realm.runWithDefault(Realm.java:338)
	at org.eclipse.e4.ui.internal.workbench.swt.PartRenderingEngine.run(PartRenderingEngine.java:1045)
	at org.eclipse.e4.ui.internal.workbench.E4Workbench.createAndRunUI(E4Workbench.java:155)
	at org.eclipse.ui.internal.Workbench.lambda$3(Workbench.java:644)
	at org.eclipse.core.databinding.observable.Realm.runWithDefault(Realm.java:338)
	at org.eclipse.ui.internal.Workbench.createAndRunWorkbench(Workbench.java:551)
	at org.eclipse.ui.PlatformUI.createAndRunWorkbench(PlatformUI.java:156)
	at org.eclipse.ui.internal.ide.application.IDEApplication.start(IDEApplication.java:152)
	at org.eclipse.equinox.internal.app.EclipseAppHandle.run(EclipseAppHandle.java:203)
	at org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.runApplication(EclipseAppLauncher.java:136)
	at org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.start(EclipseAppLauncher.java:104)
	at org.eclipse.core.runtime.adaptor.EclipseStarter.run(EclipseStarter.java:401)
	at org.eclipse.core.runtime.adaptor.EclipseStarter.run(EclipseStarter.java:255)
	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:77)
	at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.base/java.lang.reflect.Method.invoke(Method.java:568)
	at org.eclipse.equinox.launcher.Main.invokeFramework(Main.java:659)
	at org.eclipse.equinox.launcher.Main.basicRun(Main.java:596)
	at org.eclipse.equinox.launcher.Main.run(Main.java:1467)
Caused by: java.lang.NoClassDefFoundError: org/eclipse/sirius/diagram/business/internal/query/DDiagramInternalQuery
	at org.eclipse.emf.ecoretools.design.service.DesignServices.getDisplayedEClasses(DesignServices.java:255)
	at org.eclipse.emf.ecoretools.design.service.EReferenceServices.getEOppositeEReferences(EReferenceServices.java:111)
	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:77)
	at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.base/java.lang.reflect.Method.invoke(Method.java:568)
	at org.eclipse.sirius.common.tools.internal.interpreter.MonomorphicService.call(MonomorphicService.java:78)
	... 69 more
Caused by: java.lang.ClassNotFoundException: org.eclipse.sirius.diagram.business.internal.query.DDiagramInternalQuery cannot be found by org.eclipse.emf.ecoretools.design_3.3.4.202111191450
	... 76 more

Report message to a moderator

Re: Relations not displayed in diagram [message #1855979 is a reply to message #1855977] Mon, 14 November 2022 10:52 Go to previous messageGo to next message
Jan Böttcher is currently offline Jan BöttcherFriend
Messages: 3
Registered: November 2022
Junior Member
I used Eclipse Installer to install a new 'Eclipse Modeling Tools' instance. The diagram editor works as expected. Comparing the installed packages with those of my regular development environment, I detected some differences in the Sirius versions Ecore is pointing to.

Updating Ecore resolves the issue.

Report message to a moderator

Re: Relations not displayed in diagram [message #1856024 is a reply to message #1855979] Wed, 16 November 2022 07:30 Go to previous message
Pierre-Charles David is currently offline Pierre-Charles DavidFriend
Messages: 703
Registered: July 2009
Senior Member
Yes, Sirius 7.0 moved some internal classes around for increased modularity, but Ecore Tools depended on some of them.
Ecore Tools 3.3 is compatible with Sirius 6.x, but Ecore Tools 3.4 must be used along with Sirius 7.x because of this (https://git.eclipse.org/r/c/ecoretools/org.eclipse.ecoretools/+/185249).

Pierre-Charles David - Obeo

Need training or professional services for Sirius?
http://www.obeodesigner.com/sirius

Report message to a moderator
