Using Sirius table to create element [message #1855061]

Mon, 26 September 2022 22:30

Ludovic Stumme

Messages: 10
Registered: August 2017

Junior Member

Hi there,

I wanted to know if it was possible to create new elements in a table and if so how.
I tried to use the "Create Line Tool" by inserting a sequence of actions similar to what I do in diagrams (begin/change context/create instance/set name) but without success.
I searched as much as I could on the net and in the sirius/obeo designer tutorials but without success.

Thanks for your help.

[Updated on: Tue, 27 September 2022 11:38]

Report message to a moderator

Re: Using Sirius table to create element [message #1855077 is a reply to message #1855061]

Tue, 27 September 2022 18:45

Pierre-Charles David

Messages: 703
Registered: July 2009

Senior Member

Hi,

This is certainly possible.
It's difficult to know what's not working in your case without knowing the details, but see the attached example; it works fine for me.

index.php/fa/42537/0/

Attachment: test.zip
(Size: 2.48KB, Downloaded 49 times)

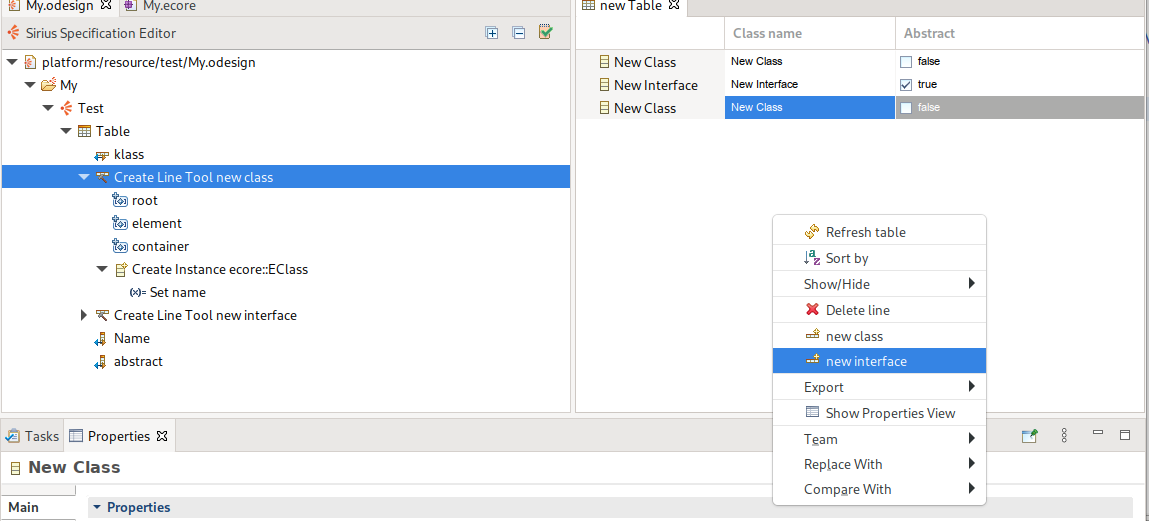

Attachment: 2022-09-27_20-42.png
(Size: 76.79KB, Downloaded 134 times)

Pierre-Charles David - Obeo

Need training or professional services for Sirius?
http://www.obeodesigner.com/sirius

Report message to a moderator

Re: Using Sirius table to create element [message #1855079 is a reply to message #1855077]

Tue, 27 September 2022 21:30

Ludovic Stumme

Messages: 10
Registered: August 2017

Junior Member

Let's say that in this case it was mainly me who wasn't working:
I hadn't noticed the presence of an icon for creating a new entry in the main toolbar nor the presence of this entry in the contextual menu.
Being used to diagrams, I expected to have such an icon in a table-specific toolbar.

Anyway, thank you for this answer.
