Sirius Web automatic layout [message #1853995] Wed, 27 July 2022 09:24
Niko Dac is currently offline Niko DacFriend
Messages: 2
Registered: October 2012
Junior Member
Hi,

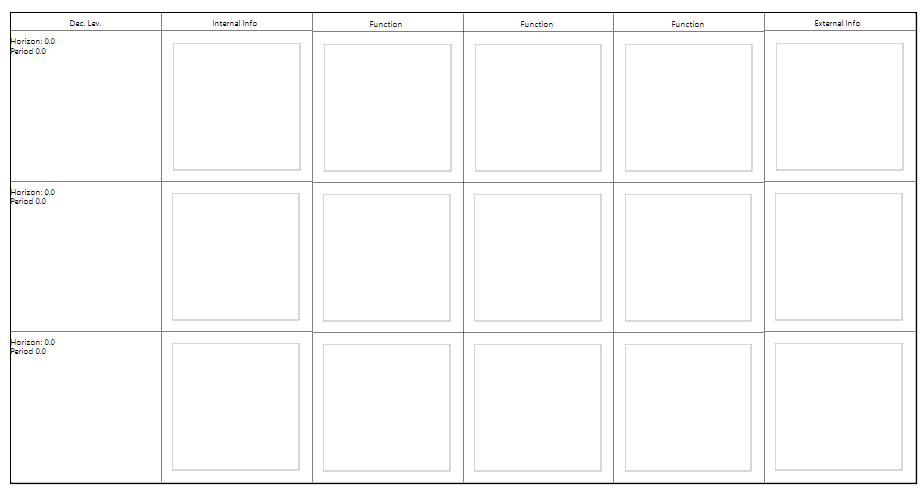

I'm using sirius desktop to model a grid with different containers. I get the following diagram when I initialize it (desktop.png). I don't use any specific layout except for the gray square and everything works fine.
index.php/fa/42340/0/

I'm trying to use sirius web, my diagram initializes with my objects but a specific and automatic layout seems to be active and i get the following diagram (web. png).
index.php/fa/42341/0/

I'd like to keep my initial diagram as in the desktop version. I try to search in near the diagrams-layout but without any sucess.

Is there a way to avoid (remove) to use this automatic positioning and simply keep what I get on the desktop version?

Thanks,

Nicolas
  • Attachment: desktop.png
    (Size: 10.16KB, Downloaded 232 times)
  • Attachment: web.png
    (Size: 8.24KB, Downloaded 246 times)
