I have 2 DSLs. When I launch the 2nd instance of Eclipse only 1 of them is active. [message #1853505]

Wed, 06 July 2022 04:42

Gary Worsham

Messages: 14
Registered: June 2022

Junior Member

Hi again,

I'm still trying to pick up where I left off about 4 years ago.

So, as the title indicates, my project has 2 different DSLs but only one of them is getting launched when I run Eclipse. I don't know where to look for this info.

index.php/fa/42266/0/

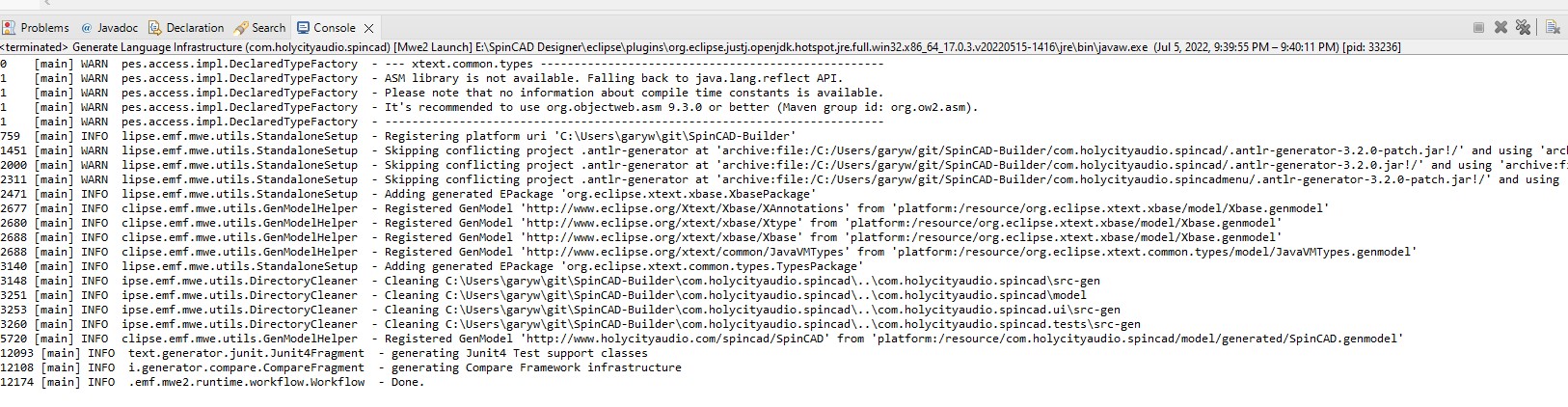

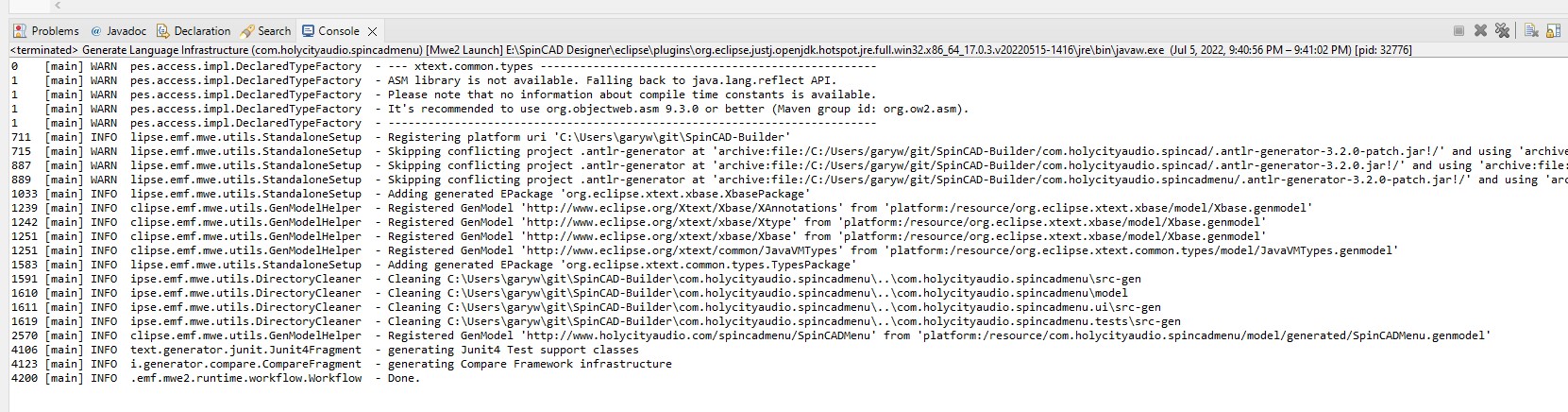

The language infrastructure builds without error in both cases.

index.php/fa/42269/0/

Here are the properties in the new Eclipse. Notice that "SpinCAD" is missing.
index.php/fa/42271/0/

Attachment: spincadmenu.jpg
(Size: 95.62KB, Downloaded 138 times)
Attachment: spincad.jpg
(Size: 100.13KB, Downloaded 143 times)
Attachment: spincad-build.jpg
(Size: 320.57KB, Downloaded 137 times)
Attachment: spincadmenu-build.jpg
(Size: 323.26KB, Downloaded 136 times)
Attachment: properties.jpg
(Size: 32.64KB, Downloaded 114 times)

[Updated on: Wed, 06 July 2022 04:46]

Report message to a moderator

Re: I have 2 DSLs. When I launch the 2nd instance of Eclipse only 1 of them is active. [message #1853506 is a reply to message #1853505]

Wed, 06 July 2022 04:45

Christian Dietrich

Messages: 14434
Registered: July 2009

Senior Member

can you check the launch configuration if you select all dsls, if it shows errors for dsls?
can you check the plugin.xml_gen / plugin.xml files if there first is properly merged to second
in the runtime eclipse can you check the host osgi console (+ button in console view) and type "ss spin" there
if your spin plugins are not active can you then type start <id of non active plugin>

Need professional support for Xtext, Xpand, EMF?
Go to: https://www.itemis.com/en/it-services/methods-and-tools/xtext
Twitter : @chrdietrich
Blog : https://www.dietrich-it.de

Report message to a moderator

Re: I have 2 DSLs. When I launch the 2nd instance of Eclipse only 1 of them is active. [message #1853507 is a reply to message #1853506]

Wed, 06 July 2022 05:07

Gary Worsham

Messages: 14
Registered: June 2022

Junior Member

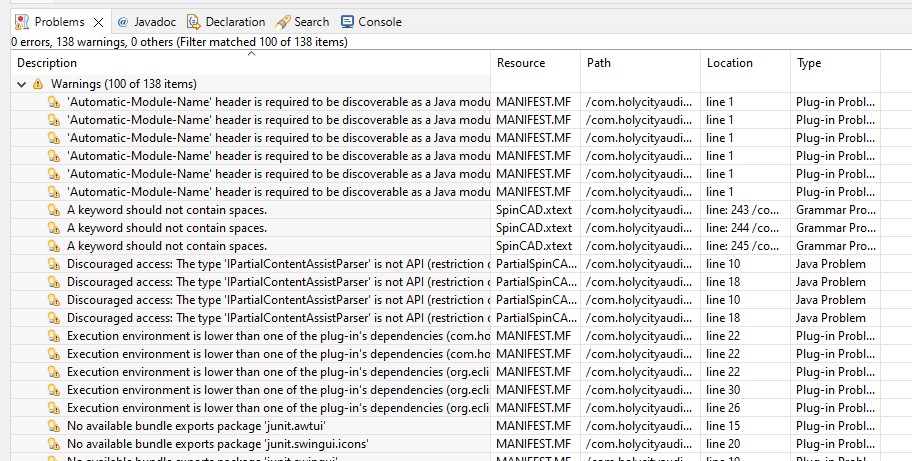

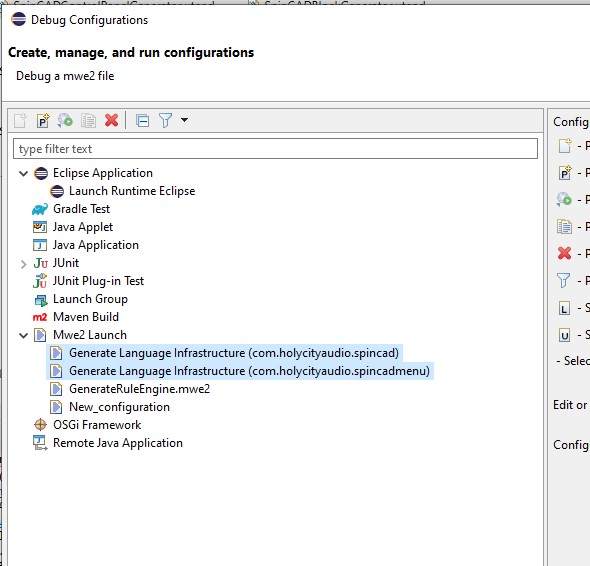

Thanks for the response. I'm not entirely sure what you meant by some of your questions but I'll show you what I think you are asking for.

index.php/fa/42272/0/

xml (one that's not working)

<?xml version="1.0" encoding="UTF-8"?>
<?eclipse version="3.0"?>

<plugin>

  <extension point="org.eclipse.emf.ecore.generated_package">
    <package
       uri = "http://www.holycityaudio.com/spincad/SpinCAD"
       class = "com.holycityaudio.spincad.spinCAD.SpinCADPackage"
       genModel = "model/generated/SpinCAD.genmodel" />

  </extension>



</plugin>

xml-gen

<?xml version="1.0" encoding="UTF-8"?>
<?eclipse version="3.0"?>

<plugin>

  <extension point="org.eclipse.emf.ecore.generated_package">
    <package
       uri = "http://www.holycityaudio.com/spincad/SpinCAD"
       class = "com.holycityaudio.spincad.spinCAD.SpinCADPackage"
       genModel = "model/generated/SpinCAD.genmodel" />

  </extension>



</plugin>

OK the other plugin xml (the one that works) is totally different.

index.php/fa/42274/0/

xml-gen

<?xml version="1.0" encoding="UTF-8"?>
<?eclipse version="3.0"?>

<plugin>

  <extension point="org.eclipse.emf.ecore.generated_package">
    <package
       uri = "http://www.holycityaudio.com/spincadmenu/SpinCADMenu"
       class = "com.holycityaudio.spincadmenu.spinCADMenu.SpinCADMenuPackage"
       genModel = "model/generated/SpinCADMenu.genmodel" />

  </extension>



</plugin>

Attachment: debug config.jpg
(Size: 60.02KB, Downloaded 114 times)
Attachment: builder problems.jpg
(Size: 216.26KB, Downloaded 111 times)
Attachment: xml-plugin.jpg
(Size: 157.20KB, Downloaded 108 times)

Report message to a moderator

Re: I have 2 DSLs. When I launch the 2nd instance of Eclipse only 1 of them is active. [message #1853508 is a reply to message #1853507]

Wed, 06 July 2022 05:09

Christian Dietrich

Messages: 14434
Registered: July 2009

Senior Member

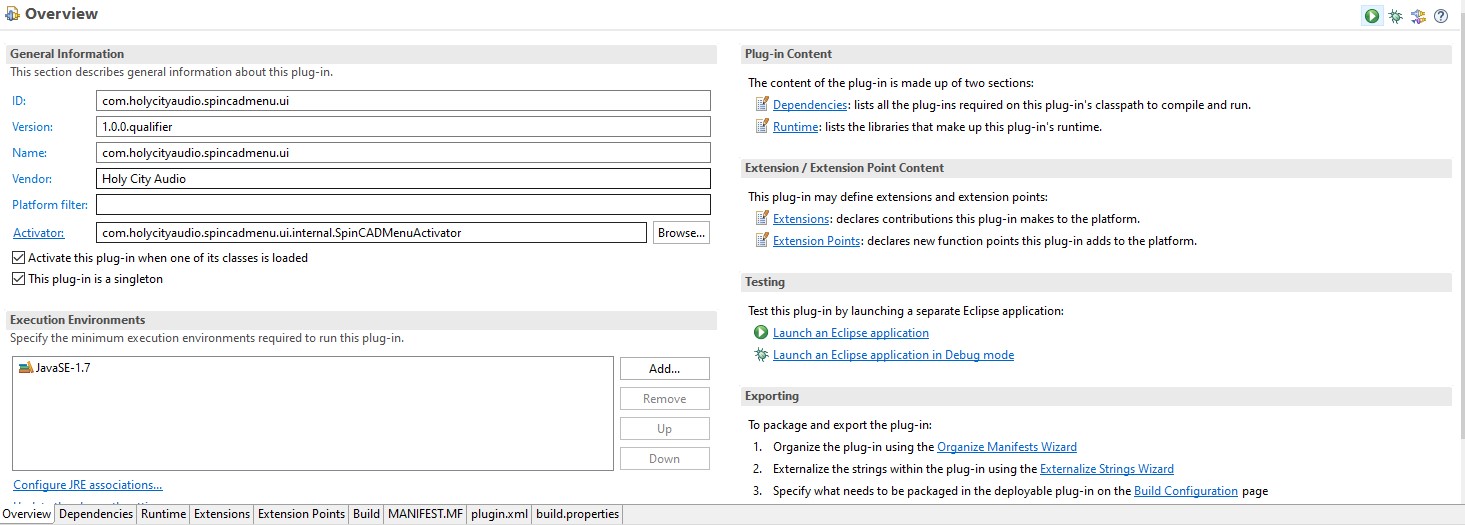

i mean the plugin.xml of ui projects

Need professional support for Xtext, Xpand, EMF?
Go to: https://www.itemis.com/en/it-services/methods-and-tools/xtext
Twitter : @chrdietrich
Blog : https://www.dietrich-it.de

Report message to a moderator

Re: I have 2 DSLs. When I launch the 2nd instance of Eclipse only 1 of them is active. [message #1853509 is a reply to message #1853508]

Wed, 06 July 2022 05:10

Christian Dietrich

Messages: 14434
Registered: July 2009

Senior Member

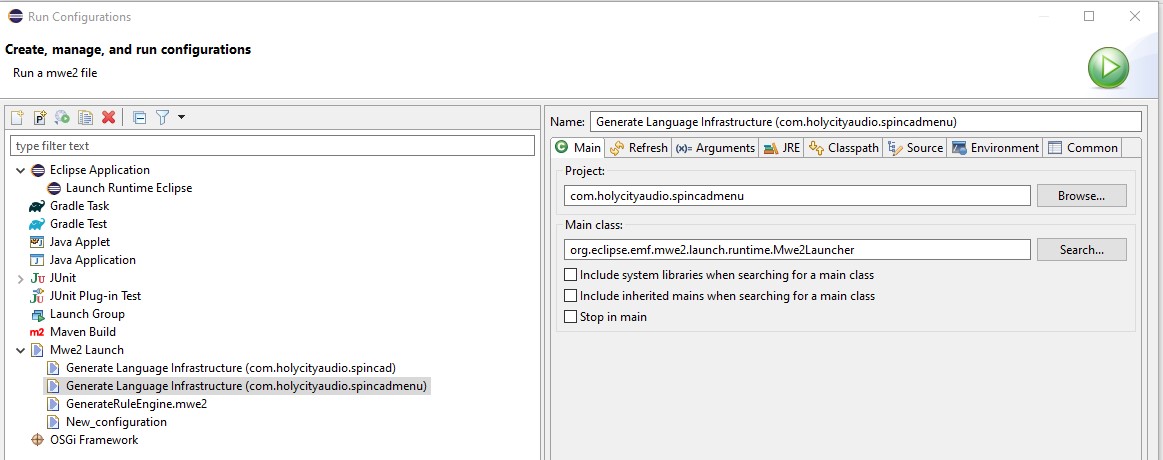

and no i mean the lauch config of "start runtime eclipse"

Need professional support for Xtext, Xpand, EMF?
Go to: https://www.itemis.com/en/it-services/methods-and-tools/xtext
Twitter : @chrdietrich
Blog : https://www.dietrich-it.de

Report message to a moderator

Re: I have 2 DSLs. When I launch the 2nd instance of Eclipse only 1 of them is active. [message #1853510 is a reply to message #1853509]

Wed, 06 July 2022 05:29

Gary Worsham

Messages: 14
Registered: June 2022

Junior Member

Attachment: spincadmenu-ui.jpg
(Size: 155.06KB, Downloaded 98 times)
Attachment: spincadui.jpg
(Size: 142.93KB, Downloaded 97 times)
Attachment: runconfigmenu.jpg
(Size: 41.18KB, Downloaded 98 times)
Attachment: runconfig.jpg
(Size: 170.63KB, Downloaded 102 times)

Report message to a moderator

Re: I have 2 DSLs. When I launch the 2nd instance of Eclipse only 1 of them is active. [message #1853511 is a reply to message #1853510]

Wed, 06 July 2022 05:35

Gary Worsham

Messages: 14
Registered: June 2022

Junior Member

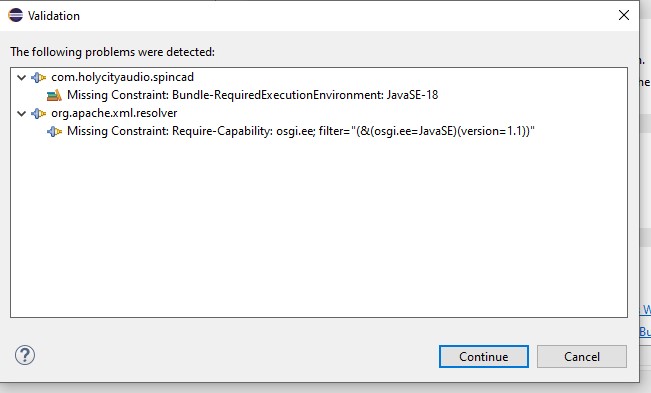

Maybe this?

index.php/fa/42279/0/

Makes no sense though.

index.php/fa/42280/0/

Attachment: validation-java-se18.jpg
(Size: 35.46KB, Downloaded 97 times)
Attachment: java18.jpg
(Size: 26.86KB, Downloaded 94 times)

Report message to a moderator

Re: I have 2 DSLs. When I launch the 2nd instance of Eclipse only 1 of them is active. [message #1853512 is a reply to message #1853511]

Wed, 06 July 2022 06:01

Christian Dietrich

Messages: 14434
Registered: July 2009

Senior Member

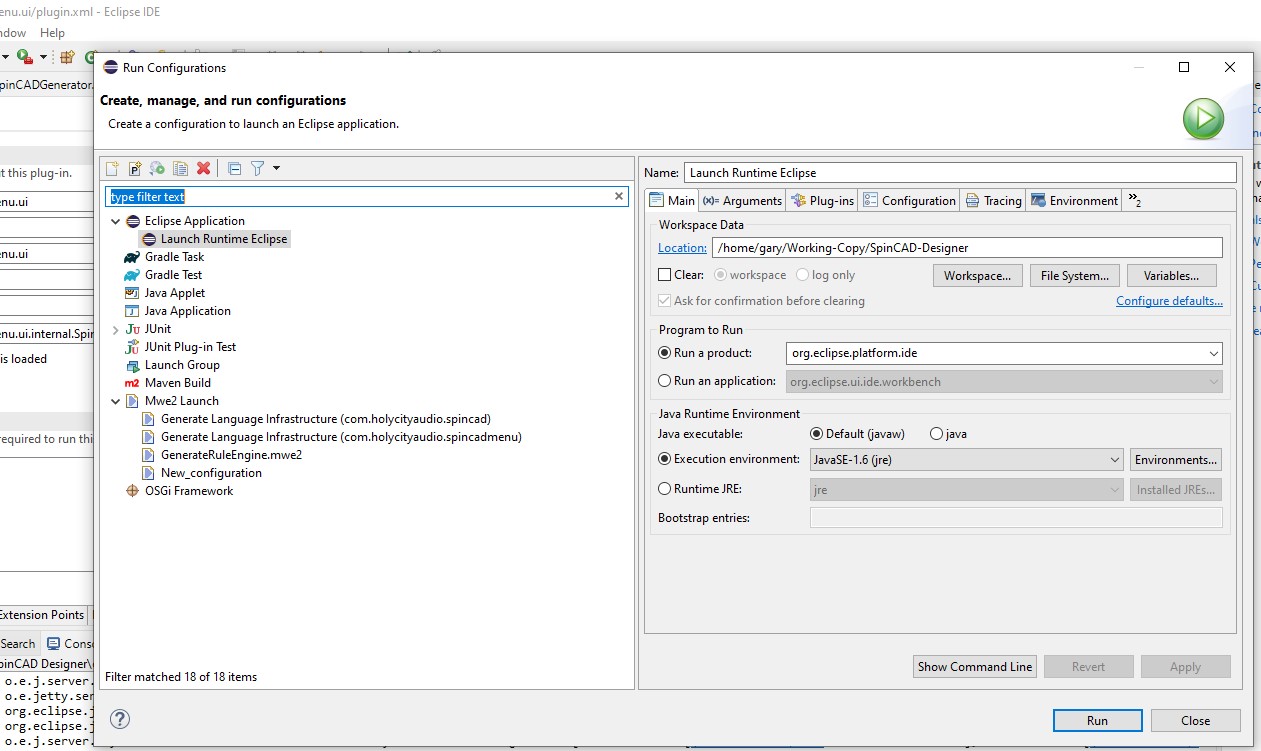

yes you use java 18 there, for reason i dont know, but launch with java 6 for another reason i dont know

xtext supports java 8 and 11 officially and can run with java 17 as target

as i said:
lauch the runtime
check the host osgi console.

also check the plugin.xml and plugin.xml_gen
contents text wise and compare them.

Need professional support for Xtext, Xpand, EMF?
Go to: https://www.itemis.com/en/it-services/methods-and-tools/xtext
Twitter : @chrdietrich
Blog : https://www.dietrich-it.de

[Updated on: Wed, 06 July 2022 06:07]

Report message to a moderator

Re: I have 2 DSLs. When I launch the 2nd instance of Eclipse only 1 of them is active. [message #1853528 is a reply to message #1853512]

Wed, 06 July 2022 15:25

Gary Worsham

Messages: 14
Registered: June 2022

Junior Member

Yeah, I don't know why I selected this that or the other thing either. I'm pretty sure I selected Java 18 because that's what is on my PC at the moment. There are many places to set this, I guess... too many?
I haven't used OSGI console before, looks like some effort is required to set that up... will be back later.

Thanks!

DL

Report message to a moderator

Re: I have 2 DSLs. When I launch the 2nd instance of Eclipse only 1 of them is active. [message #1853529 is a reply to message #1853528]

Wed, 06 July 2022 16:00

Christian Dietrich

Messages: 14434
Registered: July 2009

Senior Member

there is installed jres in eclipse preferences

Need professional support for Xtext, Xpand, EMF?
Go to: https://www.itemis.com/en/it-services/methods-and-tools/xtext
Twitter : @chrdietrich
Blog : https://www.dietrich-it.de

Report message to a moderator

Re: I have 2 DSLs. When I launch the 2nd instance of Eclipse only 1 of them is active. [message #1853534 is a reply to message #1853529]

Thu, 07 July 2022 02:53

Gary Worsham

Messages: 14
Registered: June 2022

Junior Member

Great, thanks, I appear to be past that issue.

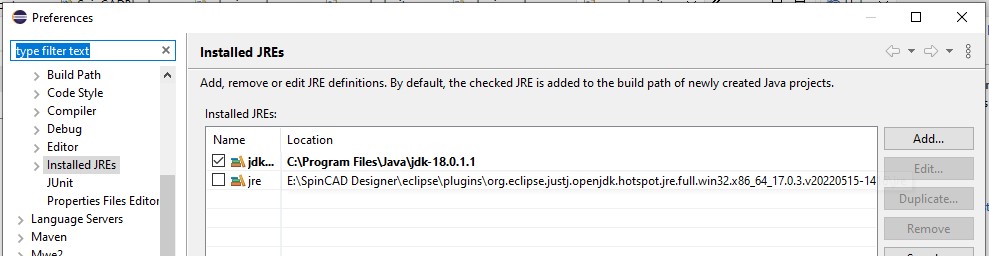

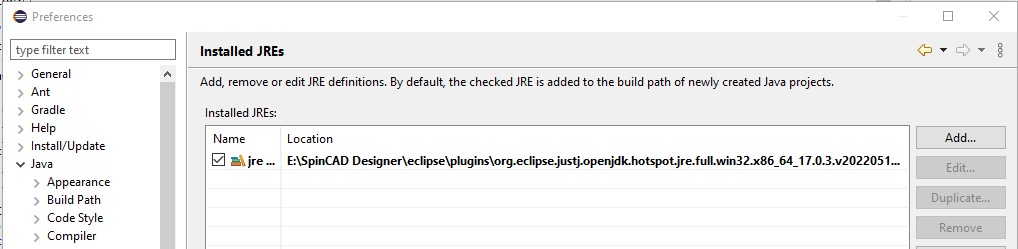

Default JRE in Eclipse Preferences is shown:

index.php/fa/42282/0/

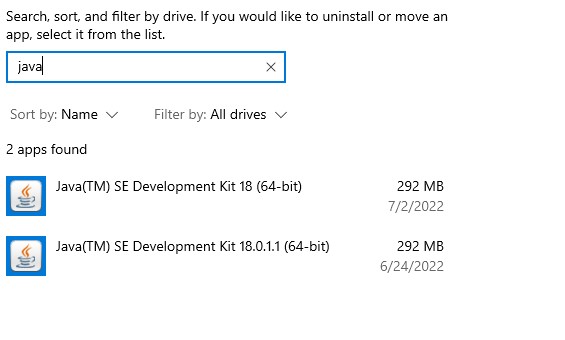

After I added this, my second DSL appears to be active.

index.php/fa/42283/0/

Attachment: JRE-17.jpg
(Size: 49.07KB, Downloaded 70 times)
Attachment: jdk-18.jpg
(Size: 54.80KB, Downloaded 71 times)

Report message to a moderator

Re: I have 2 DSLs. When I launch the 2nd instance of Eclipse only 1 of them is active. [message #1853535 is a reply to message #1853534]

Thu, 07 July 2022 04:21

Christian Dietrich

Messages: 14434
Registered: July 2009

Senior Member

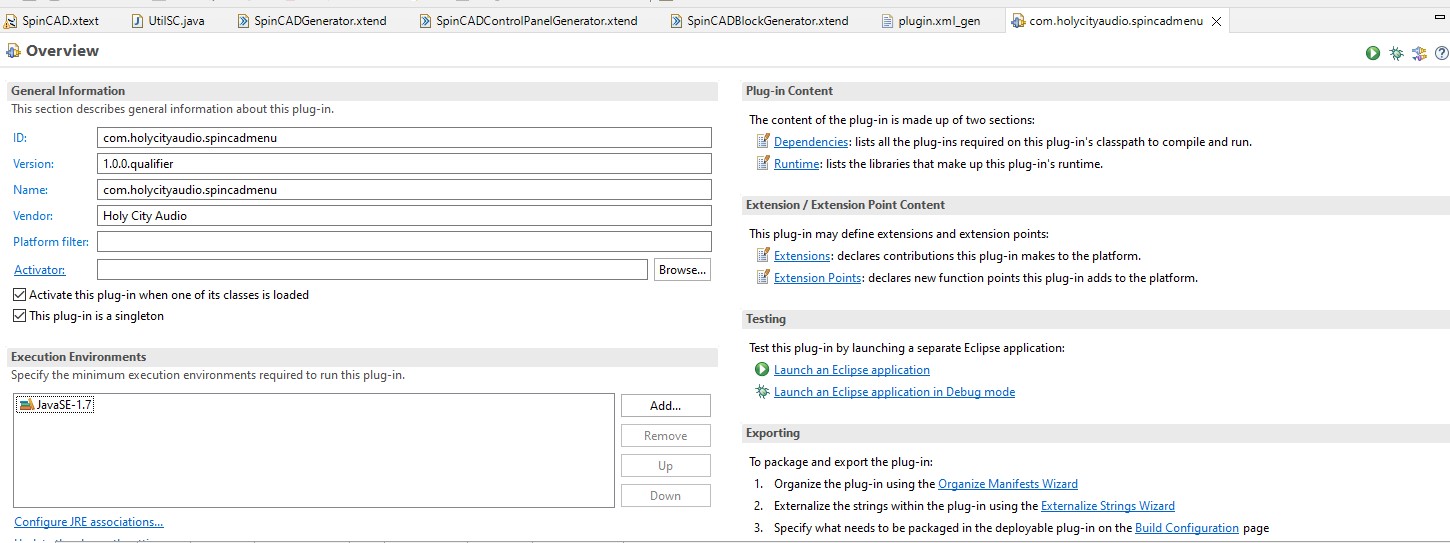

But why did you configure the project to use 18
(Manifest)
Maybe you wanted 1.8

Need professional support for Xtext, Xpand, EMF?
Go to: https://www.itemis.com/en/it-services/methods-and-tools/xtext
Twitter : @chrdietrich
Blog : https://www.dietrich-it.de

Report message to a moderator

Re: I have 2 DSLs. When I launch the 2nd instance of Eclipse only 1 of them is active. [message #1853551 is a reply to message #1853535]

Thu, 07 July 2022 14:46

Gary Worsham

Messages: 14
Registered: June 2022

Junior Member

As far as using Java 18, I'm just trying to stay current with what is out there.
I am not a full time or professional developer. This is just a hobby.
So at least half of what I am doing is just guessing and hoping for the best.
I thank you very much for your assistance!!!
