[SOLVED] Why a stereotype application breaks when the same profile is re-applied? [message #1852573]

Tue, 24 May 2022 09:45

Eclipse User

To reproduce:

- create a new model file

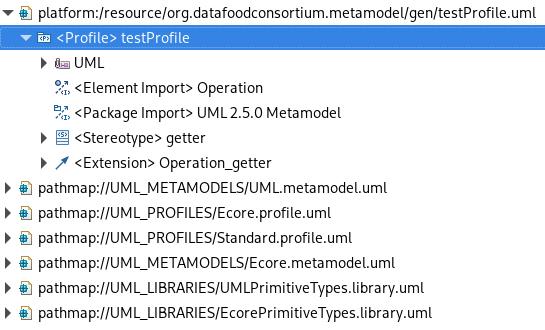

- load a profile as a resource from workspace (profile1.jpg)
- add to the model a new owned class with a new owned operation
- apply the loaded profile onto the model

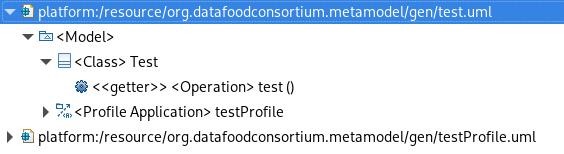

- apply a stereotype to the operation (model1.jpg)

Save and reload the model file, everything is OK.

- in the profile, add a new stereotype and stereotype application

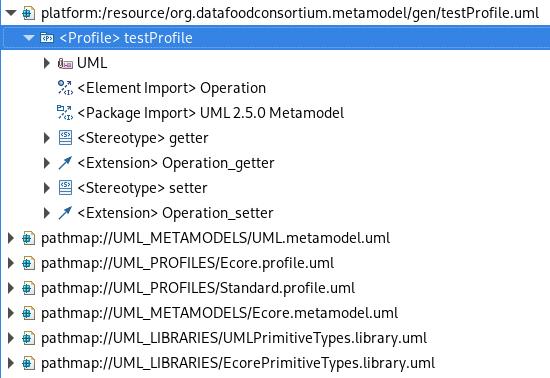

- define the profile and save (profile2.jpg)

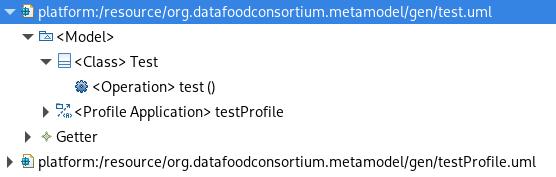

- re-apply profile onto the model (model2.jpg)

Save and reload the model file, the stereotype application disappeared, why? What am I making wrong?

Thanks

index.php/fa/42093/0/

index.php/fa/42094/0/

index.php/fa/42095/0/

index.php/fa/42096/0/

Attachment: profile1.jpg
(Size: 38.98KB, Downloaded 246 times)
Attachment: model1.jpg
(Size: 16.61KB, Downloaded 249 times)
Attachment: profile2.jpg
(Size: 42.18KB, Downloaded 248 times)
Attachment: model2.jpg
(Size: 16.19KB, Downloaded 241 times)

[Updated on: Tue, 24 May 2022 13:28] by Moderator

Re: Why a stereotype application breaks when the same profile is re-applied? [message #1852577 is a reply to message #1852573]

Tue, 24 May 2022 12:22

Eclipse User

Hi

Have you specified an URI for your profile?

If you have not, it will automatically generate a new URI each time you define the profile, and your previous applications will not be compatible

Verify that.

hope it helps

Re: Why a stereotype application breaks when the same profile is re-applied? [message #1852579 is a reply to message #1852577]

Tue, 24 May 2022 13:26

Eclipse User

I did not! Thank you German Vega, setting a profile URI fixed the problem :)

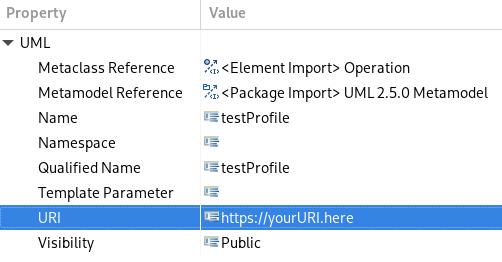

One has to fill the "profile URI" property like on this image:

index.php/fa/42097/0/

Attachment: uri.jpg
(Size: 21.04KB, Downloaded 218 times)
