4Diac forte for Freertos + LwIP [message #1850842]

Fri, 18 March 2022 10:56

Harshad Mahajan

Messages: 6
Registered: March 2022

Junior Member

Hello,

I was successful to compile forte for PC runtime and later when I was trying to compiling 4diac FORTE for freeRTOS and LwIP with help of tutorial given on link:
https://www.eclipse.org/4diac/en_help.php?helppage=html/installation/freeRTOSLwIP.html

But I am not able to get Cmake options for FORTE.

I wtrying to compile it for STM32 microcontroller and using STM32CubeIDE

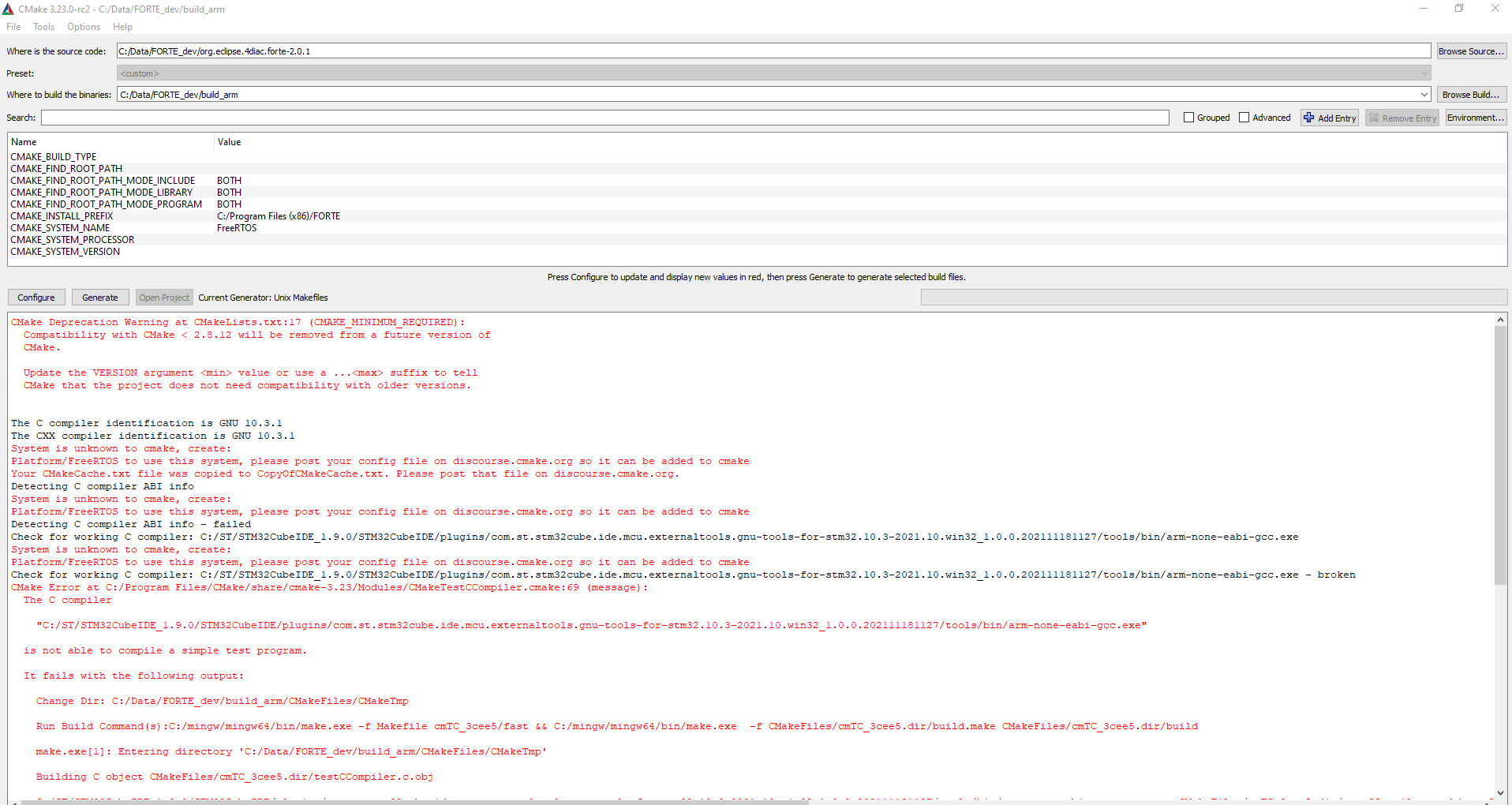

Attachment: CMAKE_Forte_Freertos.png
(Size: 103.58KB, Downloaded 203 times)

Report message to a moderator

Re: 4Diac forte for Freertos + LwIP [message #1850853 is a reply to message #1850842]

Fri, 18 March 2022 15:09

Alois Zoitl

Messages: 1639
Registered: January 2014

Senior Member

have you used a dedicated toolchain file?

Report message to a moderator

Re: 4Diac forte for Freertos + LwIP [message #1851163 is a reply to message #1850853]

Tue, 29 March 2022 11:18

Harshad Mahajan

Messages: 6
Registered: March 2022

Junior Member

Yes I have used dedicated Toolchain file.
STM32IDE gnu tool chain path I have provided for gcc and g++.

But When i give minGW toolchain i get freertos options but as its not ARM I cant compile it.

Report message to a moderator

Re: 4Diac forte for Freertos + LwIP [message #1851258 is a reply to message #1851163]

Thu, 31 March 2022 21:32

Jonathan Lainer

Messages: 5
Registered: November 2021

Junior Member

Hello Harshad,

as I understand it, you successfully compiled 4diac FORTE for Windows and
now tried compiling it with FreeRTOS+LwIP (and a toolchain file) which fails.
Can you post your toolchain file here?

Maybe we can work out a solution from there.

Report message to a moderator

Re: 4Diac forte for Freertos + LwIP [message #1851281 is a reply to message #1851258]

Fri, 01 April 2022 11:00

Harshad Mahajan

Messages: 6
Registered: March 2022

Junior Member

I might have mistaken term 'dedicated toolchain file' with 'dedicated toolchain'.
Dedicated toolchain is STM32IDE -> inbuild arm gcc, g++ compiler.

Steps I followed: (Windows 10 )
1) I have compiled project for STM32 microcontroller with FreeRTOS+LwIP (toolchain STM32CubeIDE) (gcc and g++ and make are in plugin folder of installation)
2) Downloaded forte source 2.0.1
3) created build/Freertos directory along with it.
4) Opened CMake GUI and provided settings as unix make file and specify options for cross compiling
5) in setup for cross compilation provided path for gcc and g++
for me (gcc: C:/ST/STM32CubeIDE_1.9.0/STM32CubeIDE/plugins/com.st.stm32cube.ide.mcu.externaltools.gnu-tools-for-stm32.10.3-2021.10.win32_1.0.0.202111181127/tools/bin/arm-none-eabi-gcc.exe
and g++ C:/ST/STM32CubeIDE_1.9.0/STM32CubeIDE/plugins/com.st.stm32cube.ide.mcu.externaltools.gnu-tools-for-stm32.10.3-2021.10.win32_1.0.0.202111181127/tools/bin/arm-none-eabi-g++.exe)
6) on finish I am getting window which is attached in first message.

What is dedicated toolchain file means?

[Updated on: Fri, 01 April 2022 11:01]

Report message to a moderator

Re: 4Diac forte for Freertos + LwIP [message #1851313 is a reply to message #1851281]

Fri, 01 April 2022 22:06

Jonathan Lainer

Messages: 5
Registered: November 2021

Junior Member

The toolchain file configures CMake to work with the ARM toolchain.
It is a convenient way to configure CMake to use the ARM toolchain instead of the native one (MinGW).

In the FORTE source code, under

buildsupport/toolchains

, there exists a toolchain file for a STM32 board and a CubeMX Project. The file is called

toolchain-eliteboard.cmake

. You can easily adapt this file to your project by following the instructions in the file.

Please try to use this file and if any problems arise, just post them here!

Report message to a moderator

Re: 4Diac forte for Freertos + LwIP [message #1851329 is a reply to message #1851313]

Sun, 03 April 2022 08:15

Harshad Mahajan

Messages: 6
Registered: March 2022

Junior Member

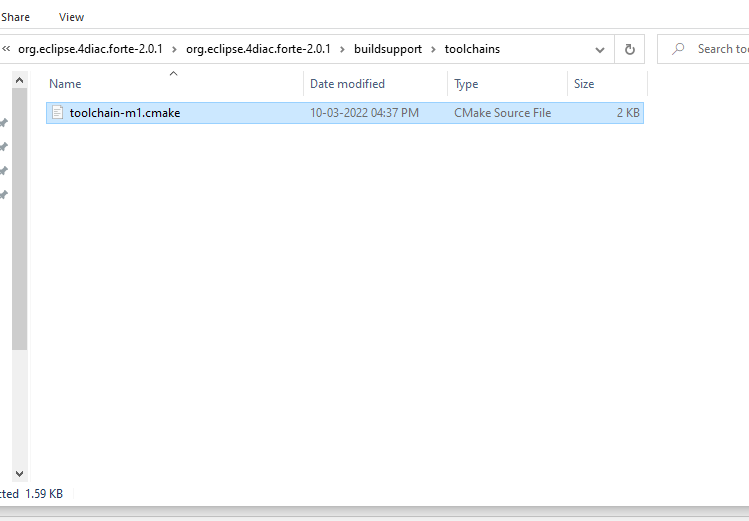

There is only 1 file is there in toolchain folder : toolchain-m1.cmake

No files for STM32.

DO you mean I need to adapt this file for STM32?

Attachment: toolchainFolder.png
(Size: 12.33KB, Downloaded 158 times)

Report message to a moderator

Re: 4Diac forte for Freertos + LwIP [message #1851343 is a reply to message #1851329]

Sun, 03 April 2022 13:59

Alois Zoitl

Messages: 1639
Registered: January 2014

Senior Member

Hi,

I expect you are using the current latest relase from 4diac FORTE (version 2.0.1). The file Jonathan mentioned is currently in our development branch because Jonathan uploaded it as part of our work on 4diac FORTE 2.1.0. The file he means can however be found in our git repo [1]. Please give this one a try.

Cheers,
Alois

[1] https://git.eclipse.org/r/plugins/gitiles/4diac/org.eclipse.4diac.forte/+/refs/heads/develop/buildsupport/toolchains/toolchain-eliteboard.cmake

Report message to a moderator

Re: 4Diac forte for Freertos + LwIP [message #1851372 is a reply to message #1851343]

Mon, 04 April 2022 10:41

Harshad Mahajan

Messages: 6
Registered: March 2022

Junior Member

How to use dedicated toolchain file?
I dont find option in GUI.
I also tried to edit CmakeLists.txt and included toolchain.cmake file
No expcted output.

Report message to a moderator
