Exporting BPMN diagram to SVG [message #1848516] Mon, 06 December 2021 17:43 Go to next message
Corrado Topi is currently offline Corrado TopiFriend
Messages: 2
Registered: December 2021
Junior Member
Dear all,

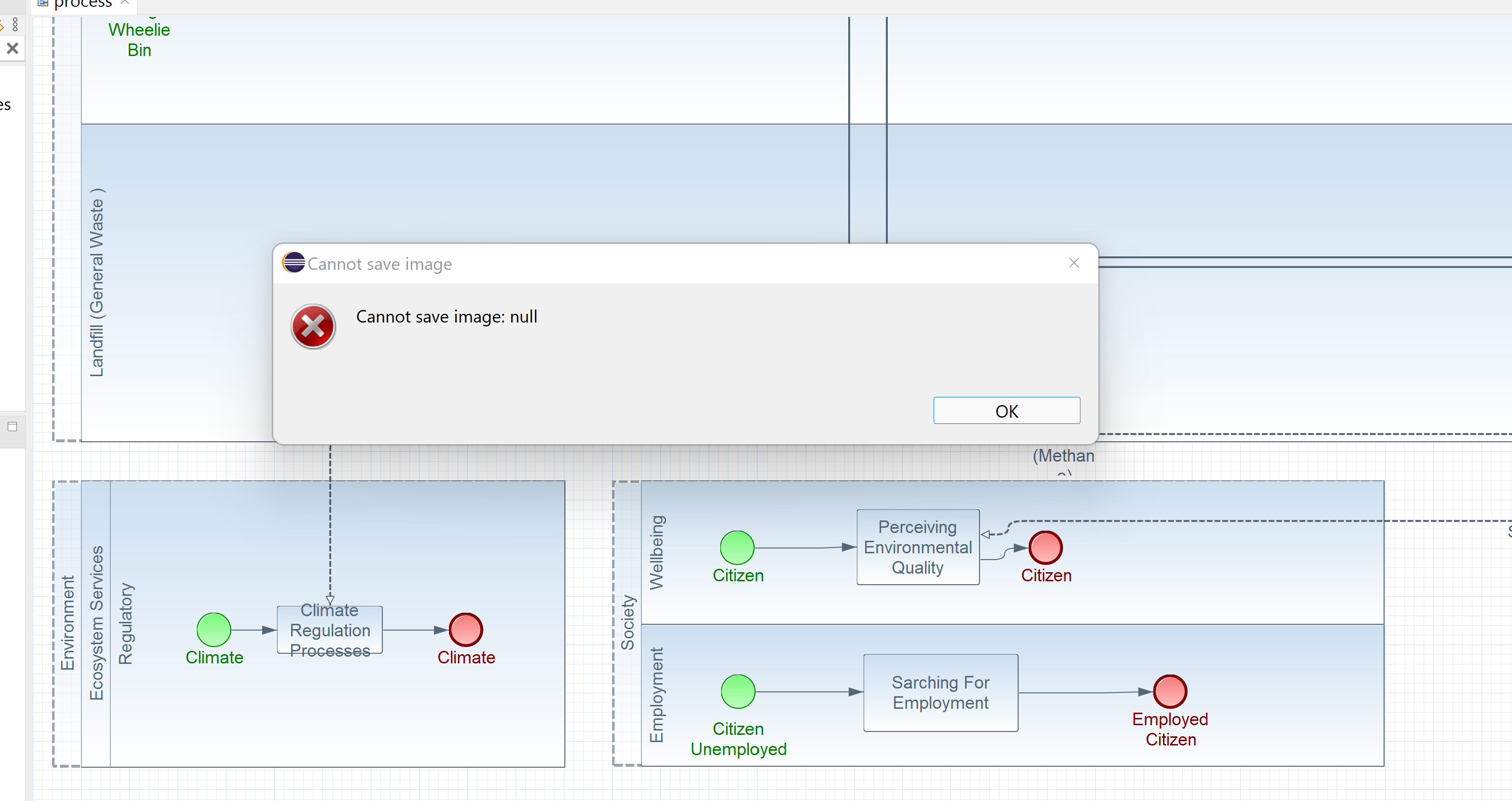

Exporting BPMN diagrams in SVG returns an error (BPMN2 modeller 1.5.3 on Eclipse 2021-09 on Windows 11). Attached you can find the snapshot of the error returned.

index.php/fa/41431/0/

Report message to a moderator

Re: Exporting BPMN diagram to SVG [message #1848552 is a reply to message #1848516] Tue, 07 December 2021 15:08 Go to previous messageGo to next message
Ralph Soika is currently offline Ralph SoikaFriend
Messages: 192
Registered: July 2009
Senior Member
Are you able to export the diagram into .png ?
The export feature is not part of the BPMN plugin directly. It is a feature provided form the Eclipse Framework in general. So it sounds a little bit as you are not able to export SVG in general. How do you call the export method?

Report message to a moderator

Re: Exporting BPMN diagram to SVG [message #1848556 is a reply to message #1848552] Tue, 07 December 2021 16:17 Go to previous messageGo to next message
Corrado Topi is currently offline Corrado TopiFriend
Messages: 2
Registered: December 2021
Junior Member
Ralph Soika wrote on Tue, 07 December 2021 15:08
Are you able to export the diagram into .png ?
The export feature is not part of the BPMN plugin directly. It is a feature provided form the Eclipse Framework in general. So it sounds a little bit as you are not able to export SVG in general. How do you call the export method?


Dear Ralph,

Thank you! Yes, I am able to export in png. I am not able to export in SVG specifically. To export I use File > Export Diagram > All > SVG.

Do you think I am missing some important components of the Eclipse Framework? How do I check?

Best Regards

Report message to a moderator

Re: Exporting BPMN diagram to SVG [message #1848817 is a reply to message #1848556] Sat, 18 December 2021 05:57 Go to previous message
Ralph Soika is currently offline Ralph SoikaFriend
Messages: 192
Registered: July 2009
Senior Member
Good question. The SVG export option is part of the graphiti project.
Can you please open the topic in the graphiti forum and link your question here. I will step in if BPMN specific questions arise.
The BPMN project itself does not contain any custom export code.


===
Ralph

Report message to a moderator
