help on petri net creation, can't seem to create the edge [message #1834895]

Fri, 20 November 2020 01:31

Xiaoyun Ma

Messages: 2
Registered: November 2020

Junior Member

hi, I am trying to create a petri net, however, I cannot seem to create edges based on the arc node (the idea is to have weighted edges, don't know if its supported by default)

I have attached my ecore file and my viewpoint creation file, thanks

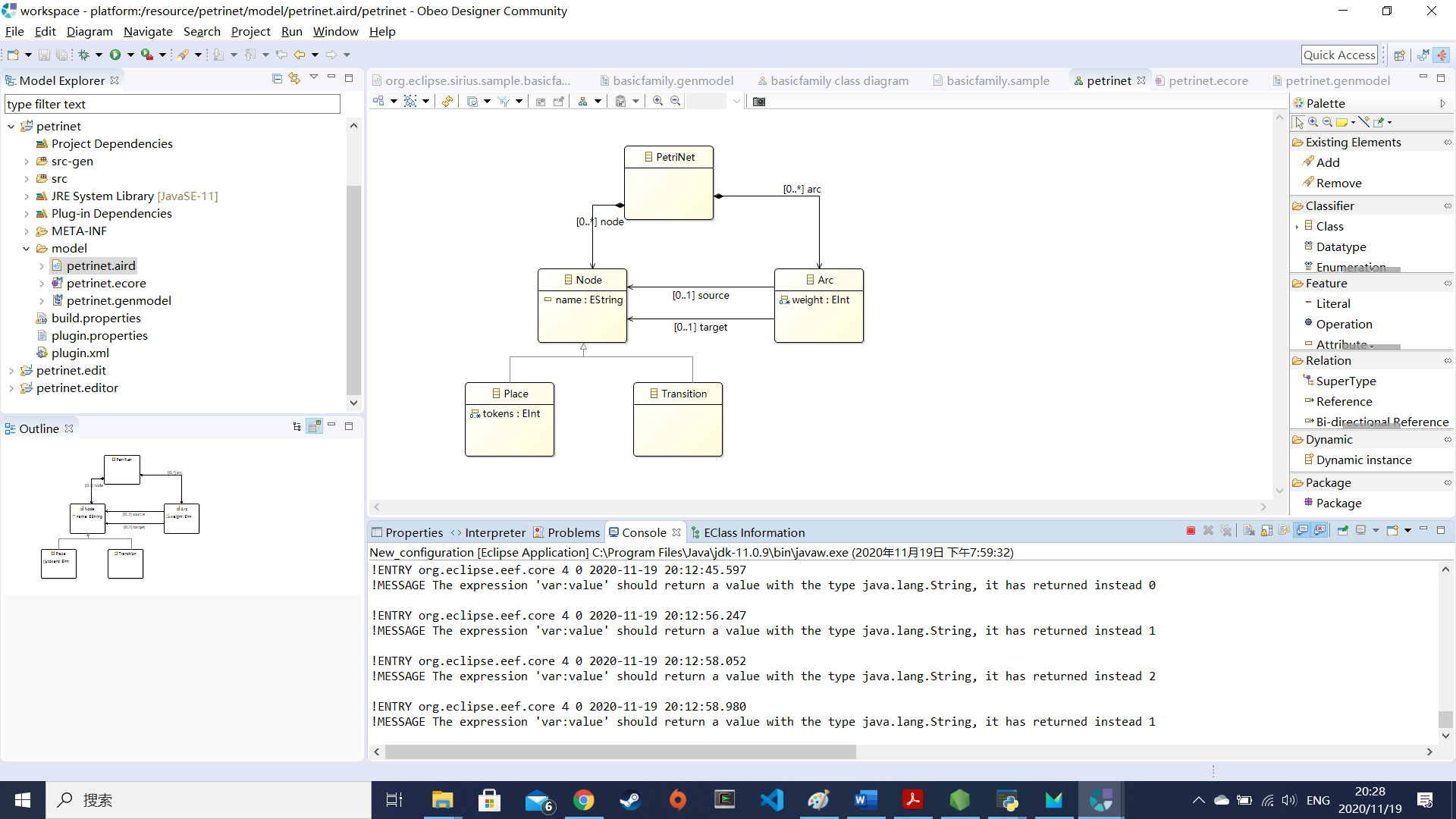

Attachment: shoppingcart.png
(Size: 233.71KB, Downloaded 31 times)

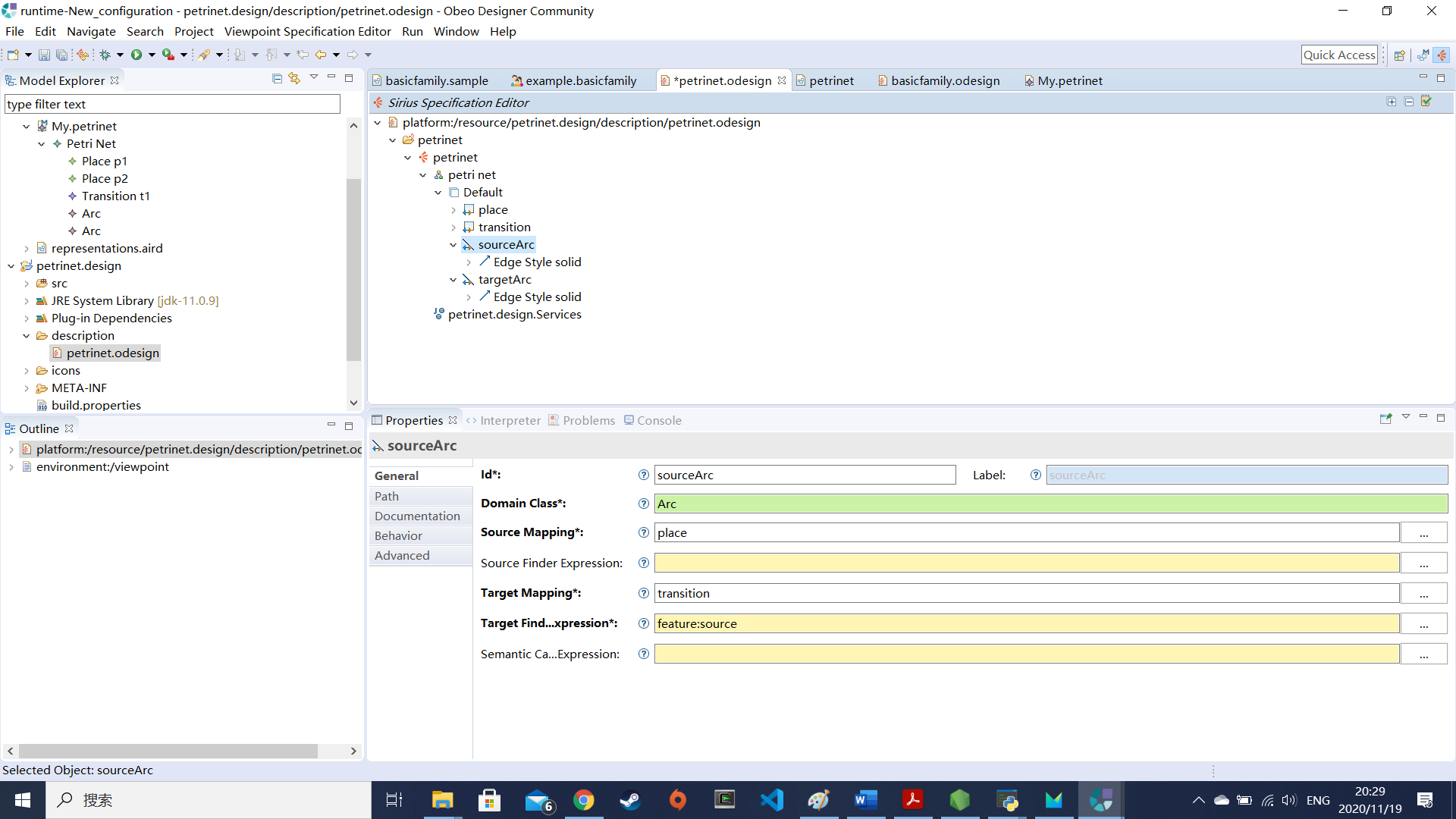

Attachment: shoppingcart.png
(Size: 189.17KB, Downloaded 32 times)

Report message to a moderator
