Error while creating Acceleo project [message #1815146] Thu, 26 September 2019 08:17 Go to next message
Adil Bhatti is currently offline Adil BhattiFriend
Messages: 10
Registered: March 2019
Junior Member
Hello All,

Hope you are fine. I am using Eclipse IDE (4.11.0) and Acceleo version 3.7. From that i followed steps of Acceleo getting started manual guide. I receive an error while creating Acceleo project. It is only creating file not *.mtl file and file.

Someone have an idea regarding it?

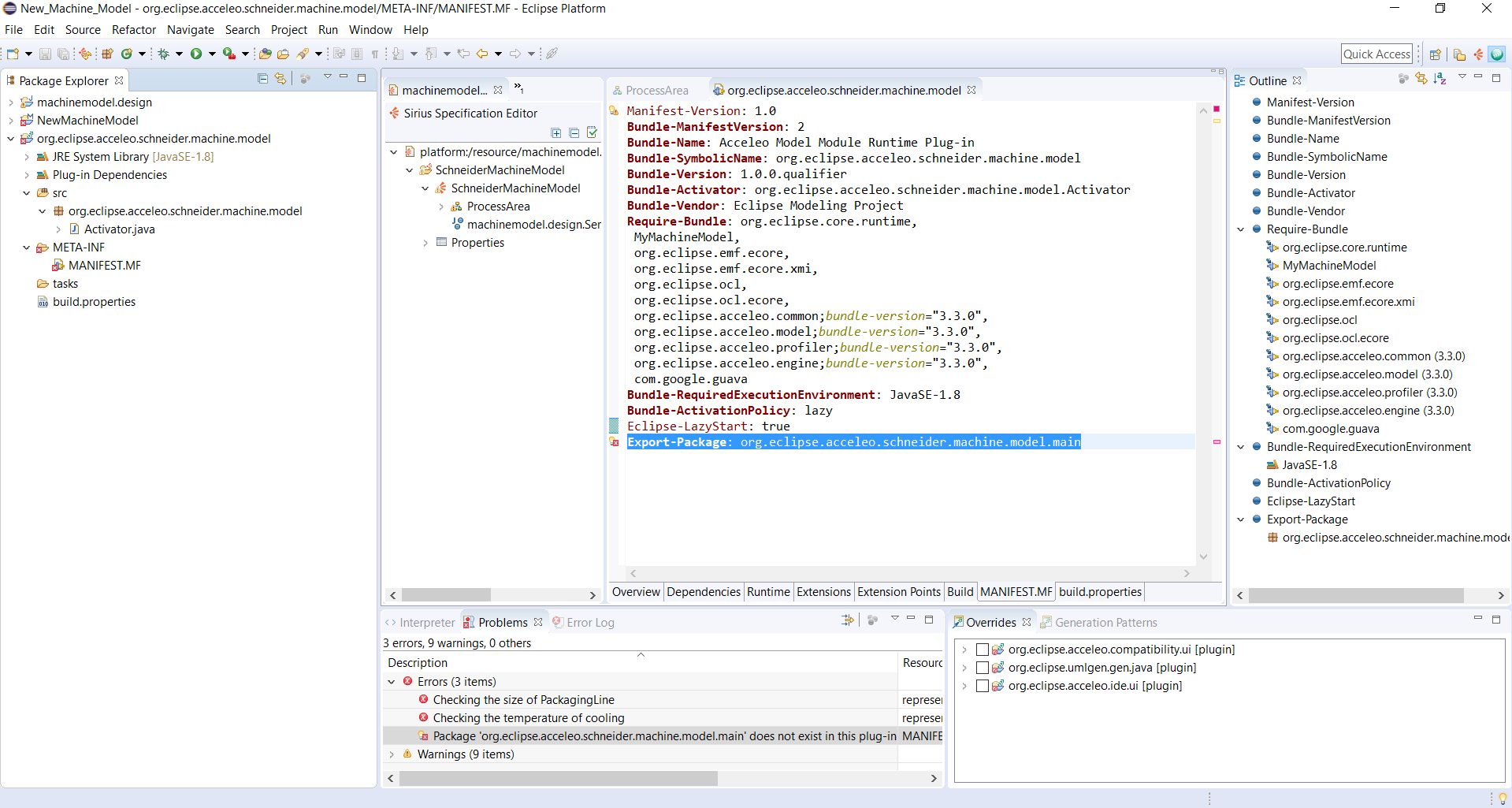

  • Attachment: Error.png
    (Size: 156.84KB, Downloaded 97 times)
Re: Error while creating Acceleo project [message #1815154 is a reply to message #1815146] Thu, 26 September 2019 09:52 Go to previous message
Ed Willink is currently offline Ed WillinkFriend
Messages: 7635
Registered: July 2009
Senior Member



Acceleo <=3.7.7 is broken on EMF >= 2.16 (2018-12)
Acceleo 3.7.8 is broken on EMF 2.16 and EMF 2.17 (2018-12 and 2019-03).
Acceleo 3.7.8 is fixed by an early EMF 2.18 (2019-06).

Your use of Eclipse 4.11 and so presumably EMF 2.17 with Acceleo 3.7 is a broken combination. Use at least Acceleo 3.7.8 and EMF 2.18.


Ed Willink
