Need help to implement an ambiguous grammar (ACSL grammar) [message #1794841] Fri, 07 September 2018 14:03 Go to next message
vincent lorenzo is currently offline vincent lorenzoFriend
Messages: 94
Registered: June 2010
Location: Paris Saclay, France
Member
Hello everybody,
I post a message here, because I'm not able to find how to manage trouble with ambiguous grammar.
I'm implementing a part of the ACSL Grammar (see https://frama-c.com/download/acsl_1.3.pdf). Basically it allows to write annotations in C code.
This grammar provides many rules. My problem comes from Term and Predicat (Pred) definitions which use common symbols. Here an abtract of this grammar:

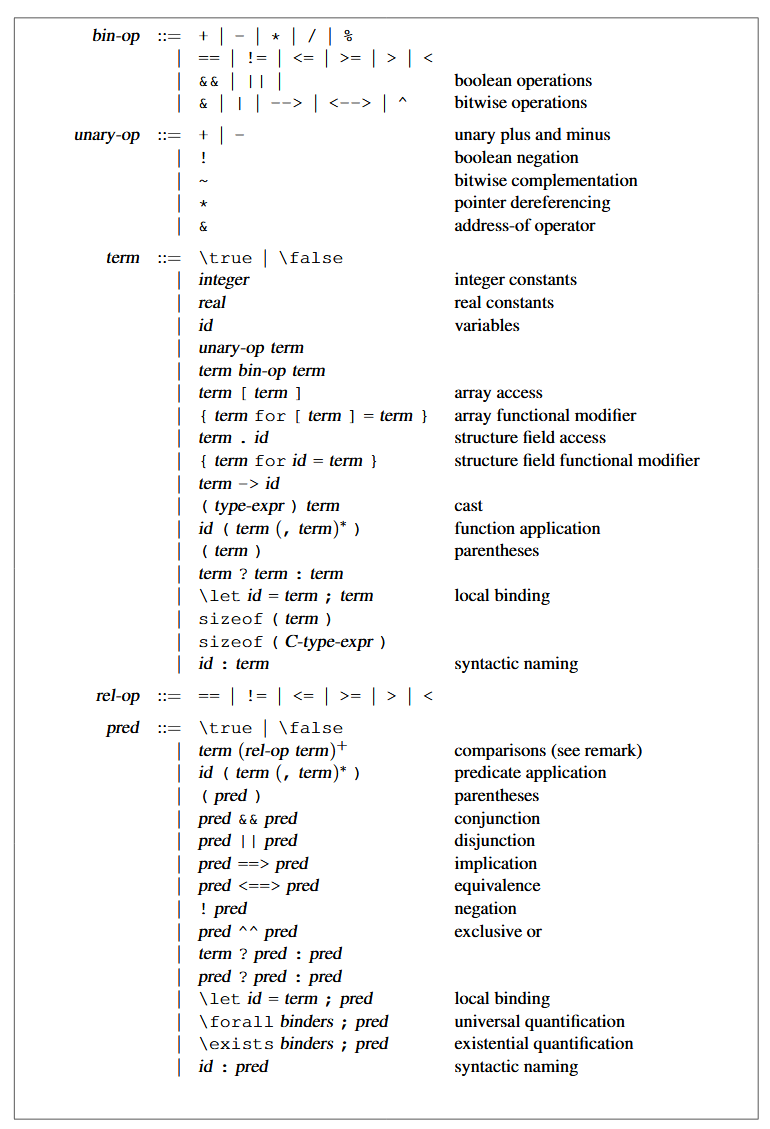

Grammar of Terms:
literal::= \true | \false | integer | real | string | char
bin-op::= + | - | * | / | % | << | >> | == | != | <= | >= | > | < | && | || | ^^:
term::= literal |
\result |
term bin-op term
| and others possibilities

Grammar of Pred:
rel-op::= == | != | <= | >= | > | < (Yes, these symbols are also available in bin-op)
pred::= \true | \false |
term (rel-op term)+ |
pred && pred | (&& is also available in bin-op)
pred || pred | (|| is also available in bin-op)
and others possibilities.


With the grammar plugins in attachement, the ambiguous bin-on symbols are commented, so the next sentence is valid:
requires \result >= 12 && \result <= 15; (rule RequiresClause)

It is the rule RequiresClause ('requires' pred=PredExpression) where the PredExpression is a PredConjuction (pred1 && pred2) with pred1="\result >= 12" and pred2="\result <= 15".
pred1 and pred2 are identified as the rule Pred_TermComparison (a comparison of 2 Terms with a RelOp (== | != | <= | >= | > | <).
This usecase works fine.


Now, if I uncomment one of the ambiguous bin-op symbol (== | != | <= | >= | && | ...), my sentence is not yet recognized as valid by the framework.

By example, uncommenting <= in the bin-op rule, I assume, the framework interprete the sentence as:
\result >= 12 is now seen as a term
\result >= 15 as a pred (as previously)
so we have as now a conjunction between a term and a pred and it is not valid.


Please, could you indicate me a way to fix my troubles (parameters to add in the mw2e file, generated code to override or whatever).


you will find in attachement:
- the xtext plugins for this grammar

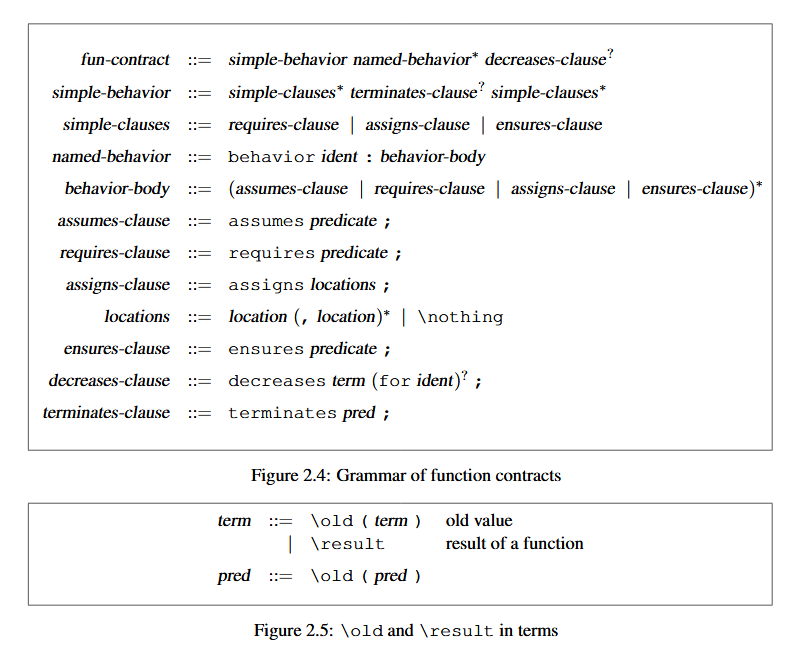

- some snapshot of the ACSL grammar

Here my mwe2 file and my grammar (also in the attached plugins of course):
The mwe2 file
module com.cea.xtext.demo.GenerateAcslDemo

import org.eclipse.xtext.xtext.generator.*
import org.eclipse.xtext.xtext.generator.model.project.*

var rootPath = ".."

Workflow {

//
	bean = org.eclipse.emf.mwe.utils.StandaloneSetup {
	//		platformUri = "${rootPath}"
		scanClassPath = true

		//load EMF ECORE
		uriMap = {
			from = "platform:/plugin/org.eclipse.emf.ecore/model/Ecore.ecore"
			to = "platform:/resource/org.eclipse.emf.ecore/model/Ecore.ecore"
		}

		uriMap = {
			from = "platform:/plugin/org.eclipse.emf.codegen.ecore/model/GenModel.genmodel"
			to = "platform:/resource/org.eclipse.emf.codegen.ecore/model/GenModel.genmodel"
		}
		uriMap = {
			from = "platform:/plugin/org.eclipse.emf.ecore/model/Ecore.genmodel"
			to = "platform:/resource/org.eclipse.emf.ecore/model/Ecore.genmodel"
		}
		registerGeneratedEPackage = "org.eclipse.emf.ecore.EcorePackage"
		registerGenModelFile = "platform:/resource/org.eclipse.emf.ecore/model/Ecore.genmodel"
		registerGeneratedEPackage = "org.eclipse.emf.codegen.ecore.genmodel.GenModelPackage"
		registerGenModelFile = "platform:/resource/org.eclipse.emf.codegen.ecore/model/GenModel.genmodel"//load UML
////Types
		uriMap = {
			from = "platform:/plugin/org.eclipse.uml2.codegen.ecore/model/GenModel.ecore"
			to = "platform:/resource/org.eclipse.uml2.codegen.ecore/model/GenModel.ecore"
		}

		uriMap = {
			from = "platform:/plugin/org.eclipse.uml2.codegen.ecore/model/GenModel.genmodel"
			to = "platform:/resource/org.eclipse.uml2.codegen.ecore/model/GenModel.genmodel"
		}

		uriMap = {
			from = "platform:/plugin/org.eclipse.uml2.types/model/Types.ecore"
			to = "platform:/resource/org.eclipse.uml2.types/model/Types.ecore"
		}
		uriMap = {
			from = "platform:/plugin/org.eclipse.uml2.types/model/Types.genmodel"
			to = "platform:/resource/org.eclipse.uml2.types/model/Types.genmodel"
		}

		uriMap = {
			from = "platform:/plugin/org.eclipse.uml2.uml/model/UML.ecore"
			to = "platform:/resource/org.eclipse.uml2.uml/model/UML.ecore"
		}

		uriMap = {
			from = "platform:/plugin/org.eclipse.uml2.uml/model/UML.genmodel"
			to = "platform:/resource/org.eclipse.uml2.uml/model/UML.genmodel"
		}

		//
		registerGeneratedEPackage = "org.eclipse.uml2.codegen.ecore.genmodel.GenModelPackage"
		registerGenModelFile = "platform:/resource/org.eclipse.uml2.codegen.ecore/model/GenModel.genmodel"
		registerGeneratedEPackage = "org.eclipse.uml2.uml.UMLPackage"
		registerGenModelFile = "platform:/resource/org.eclipse.uml2.uml/model/UML.genmodel"
	}

	component = XtextGenerator {
		configuration = {
			project = StandardProjectConfig {
				baseName = "com.cea.xtext.demo"
				rootPath = rootPath
				runtimeTest = {
					enabled = true
				}
				eclipsePlugin = {
					enabled = true
				}
				eclipsePluginTest = {
					enabled = true
				}

				createEclipseMetaData = true
			}
			code = {
				encoding = "UTF-8"
				lineDelimiter = "\n"
				fileHeader = "/*\n * generated by Xtext \${version}\n */"
			}

		}
		language = StandardLanguage {

			name = "com.cea.xtext.demo.AcslDemo"
			fileExtensions = "acslDemo"
			fragment = ecore2xtext.Ecore2XtextValueConverterServiceFragment2 auto-inject {}
			serializer = {
				generateStub = false
			}
			validator = {
			// composedCheck = "org.eclipse.xtext.validation.NamesAreUniqueValidator"
			}

			parserGenerator = parser.antlr.XtextAntlrGeneratorFragment2 auto-inject {
				debugGrammar = true
				combinedGrammar = true
				options = {
					backtrack = true
				}
			}

			fragment = idea.parser.antlr.XtextAntlrIDEAGeneratorFragment auto-inject {

				options = {
					backtrack = true
				}
			}

		}
	}
}


The grammar
grammar com.cea.xtext.demo.AcslDemo with org.eclipse.xtext.common.Terminals

generate acslDemo "http://www.cea.com/xtext/demo/AcslDemo"

import "http://www.eclipse.org/uml2/5.0.0/UML" as uml
import "http://www.eclipse.org/emf/2002/Ecore" as ecore




	/**
 * the input rule to edit an opaque behavior
 */
OpaqueBehaviorRule:
	contract=FunctionContract;

/*
 * defined in figure 2.5 page 29
 */
FunctionContract:
	{FunctionContract} (requiresClause+=RequiresClause)*
;

	/**
 * defined in figure 2.5, page 29
 */
RequiresClause:
	'requires' pred=PredExpression ';';

//TERMS
TermExpression:
	TermBinOpExpression;

TermBinOpExpression returns TermExpression:
		TermArrayAccess ({TermBinOpExpression.left=current} op=BinOp right=TermArrayAccess)*
;

TermArrayAccess returns TermExpression:
	TermPrimary ({TermArrayAccess.left=current} '[' right=TermPrimary ']')*;

TermPrimary returns TermExpression:
	{TermParenthesis} '(' termInParenthesis=TermExpression ')' | Term_UnaryOp | TermNot | {TermOld} '\\old' '('
	termInOld=TermExpression ')' | TermAtomic

	;

TermNot returns TermExpression:
	'!' exp=TermPrimary;

TermAtomic returns TermExpression:
	{TermLiteral} lit=Literal | Term_Result |  Term_PolyId;

Term_PolyId returns TermExpression:
	{Term_PolyId} ident=Ident;

Ident:
	id=ID;
	/**
 * We adapt the pred description defined in Figure 2.2
 * to avoid left recursive grammar and others troubles
 */
//Pred:
//	expression=PredExpression
////	pred=Pred_Basic secondMember+=(Pred_RightMember)*
//;

//PRED-PRED-PRED-PRED-PRED-PRED-PRED-PRED-PRED-PRED-PRED-PRED-PRED-
PredExpression:
	PredImplication;

PredImplication returns PredExpression:
	PredEquivalence ({PredImplication.left=current} '==>' right=PredEquivalence)*;

PredEquivalence returns PredExpression:
	PredOrExpression ({PredEquivalence.left=current} '<==>' right=PredOrExpression)*;

PredOrExpression returns PredExpression:
	PredAndExpression ({PredOrExpression.left=current} '||' right=PredAndExpression)*;

PredAndExpression returns PredExpression:
	PredXorExpression ({PredAndExpression.left=current} '&&' right=PredXorExpression)*;

PredXorExpression returns PredExpression:
	PredPlusOrMinus ({PredXorExpression.left=current} '^^' right=PredPlusOrMinus)*;

PredPlusOrMinus returns PredExpression:
	PredMulOrDiv (({PredPlus.left=current} '+' | {PredMinus.left=current} "-") right=PredMulOrDiv)*;

PredMulOrDiv returns PredExpression:
	PredPrimary ({PredMulOrDiv.left=current} op=('*' | '/') right=PredPrimary)*;

PredPrimary returns PredExpression:
	Pred_TermComparison |{PredParenthesis} '(' pred=PredExpression ')' | {PredNot} '!' exp=PredPrimary  | {PredOld} '\\old' '('
	pred=PredExpression ')' | PredAtomic;

////defined in Figure 2.2
enum RelOp:
	EQUALS="=="
	| NOT_EQUALS="!="
	| SUPERIOR_STRICT=">"
	| SUPERIOR_OR_EQUALS=">="
	| INFERIOR_STRICT="<"
	| INFERIOR_OR_EQUALS="<=";

Pred_TermComparison returns PredExpression:
	{Pred_TermComparison} left=TermExpression right+=Pred_TermComparisonRight+;

Pred_TermComparisonRight:
	op=RelOp right=TermExpression;

PredAtomic returns PredExpression:
	Pred_True
	| Pred_False;

Pred_True returns PredExpression:
	{Pred_True} "\\true";

Pred_False returns PredExpression:
	{Pred_False} "\\false";
	//END_PRED-END_PRED-END_PRED-END_PRED-END_PRED-END_PRED-END_PRED-END_PRED-END_PRED-END_PRED-END_PRED-END_PRED-END_PRED-END_PRED

//END_TERMS

Literal:
	LiteralBoolean
	| LiteralInt
	| LiteralReal
	| LiteralString
	| LiteralChar;

LiteralBoolean:
	value=("\\true" | "\\false");

LiteralInt:
	i=INT;

LiteralString:
	s=STRING;

LiteralReal:
	r=REAL;

LiteralChar:
	c=CHAR;

terminal REAL:
	INT '.' INT;

//
terminal CHAR:
	('a'..'z' | 'A'..'Z');// | '_' | '0'..'9');
	//
//terminal BOOLEAN:
//	('\\true' | '\\false');
//
///**
// * binary operators
// * figure 2.1 page 16 in document acsl_1.13.pdf
// *
// */
enum BinOp:
	PLUS="+"
	| MINUS="-"
	| STAR = "/*"
	| SLASH="/"
	| PERCENT = "%"
	| LEFT_SHIFT = "<<"
	| RIGHT_SHIFT = ">>"
//	| DOUBLE_EQUALS = "=="
//	| NOT_EQUALS = "!="
//	| TODO1 = "<=" //TODO
//	| TODO2 = ">="//TODO
//	| TODO3 = ">"//TODO
//	| TODO4 = "<"//TODO
//	| BOOLEAN_AND_OPERATION = "&&"
//	| BOOLEAN_OR_OPERATION = "||"
//	| BOOLEAN_XOR_OPERATION= "^^"
	| BITWISE_AND_OPERATION = "&"
	| BITWISE_OR_OPERATION = "|"
	| BITWISE_XOR_OPERATION = "^"
;
//
///**
// * unary operators
// * figure 2.1 page 16 in document acsl_1.13.pdf
// */
//
enum UnaryOp:
	UNARY_PLUS="+"
	| UNARY_MINUS="-"
	| BOOLEAN_NEGATION="!"
	| BITWISE_COMPLEMENTATION="~"
	| POINTER_DEFERENCING="*"
	| ADRESS_OF_OPERATOR="&";

Term_UnaryOp returns TermExpression:
	unaryOperator=UnaryOp referencedTermInUnaryOpTerm=TermExpression;

Term_Result:
	{Term_Result} '\\result';

@Override
terminal ID : ('a'..'z'|'A'..'Z'|'_') ('a'..'z'|'A'..'Z'|'_'|'0'..'9')* ;// | ('\'' -> '\'')  ;


Regards,
--
Vincent LORENZO
Re: Need help to implement an ambiguous grammar (ACSL grammar) [message #1794844 is a reply to message #1794841] Fri, 07 September 2018 14:43 Go to previous messageGo to next message
Ed Willink is currently offline Ed WillinkFriend
Messages: 6033
Registered: July 2009
Senior Member
Hi

The C grammar has the notorious dangling else ambiguity amongst others. It appears that your ACSL exposition introduces further gratuitous ambiguities.

I understand that Xtext now has syntactic predicates so you can just make the ambiguity go away, but only until you get complaints from your users that your intuitive resolution conflicts with theirs.

I prefer to solve ambiguities by design and so I use LALR tooling where you have to fight with the delights of reduce-reduce and shift-reduce conflicts until your grammar is unambiguous.

To facilitate using the LPG LALR parser with Xtext, I have developed the experimental GIT\org.eclipse.ocl\examples\org.eclipse.ocl.examples.xtext2lpg plugin - only available from the OCL GIT.

You may find that the yaccable C++ grammar that I developed during my PhD helpful: http://www.cs.technion.ac.il/users/yechiel/c++-faq/yaccable-grammar.html

Regards

Ed Willink
Re: Need help to implement an ambiguous grammar (ACSL grammar) [message #1794856 is a reply to message #1794844] Sat, 08 September 2018 07:14 Go to previous messageGo to next message
Christian Dietrich is currently offline Christian DietrichFriend
Messages: 12229
Registered: July 2009
Senior Member
you have multiple problems

(1) unusal pattern for unary expressions. ususal pattern is
Term_UnaryOp returns TermExpression: {Term_UnaryOp}op=UnaryOp p=TermPrimary | TermPrimary;
(2) duplicate not (its in unary and a separate one
(3) you have an actually left cycle between the primaries

i recommend you to generate a debug grammar

parserGenerator = {
debugGrammar = true
}

and use antlrworks to inspect


Need professional support for Xtext, Xpand, EMF?
Go to: https://xtext.itemis.com
Twitter : @chrdietrich
Blog : https://www.dietrich-it.de
Re: Need help to implement an ambiguous grammar (ACSL grammar) [message #1794886 is a reply to message #1794856] Mon, 10 September 2018 10:35 Go to previous message
Karsten Thoms is currently offline Karsten ThomsFriend
Messages: 611
Registered: July 2009
Location: Dortmund, Germany
Senior Member

Quote:

and use antlrworks to inspect


See also https://blogs.itemis.com/en/debugging-xtext-grammars-what-to-do-when-your-language-is-ambiguous
Previous Topic:Plain Language parser in xtext xbase
Next Topic:XText importing a specific file extension
Goto Forum:



Current Time: Wed Sep 19 07:12:14 GMT 2018

Powered by FUDForum. Page generated in 0.01495 seconds
.:: Contact :: Home ::.

Powered by: FUDforum 3.0.2.
Copyright ©2001-2010 FUDforum Bulletin Board Software

Back to the top
