Problems saving diagram to image [message #1775297] Fri, 27 October 2017 10:30
Ignacio Ibanez is currently offline Ignacio IbanezFriend
Messages: 1
Registered: October 2017
Junior Member
Hello there,

before reporting this as a bug I want to put an issue I´ve encountered here, in case I´m doing something wrong.

Basically, when using the SaveImageFeature, right after saving a diagram in the editor, in some situations the generated image is missing some elements to draw. Those situations look pseudo-random. This is what I´ve found after a few dozen tests:

-It will not draw any pictogram inside the container shape (it will keep text), inclduing decorators.
-Everything else seems to get drawn correctly.
-It looks to happen randomly. Doing the same thing twice will sometimes trigger it sometimes not. Maybe there is an underlying race condition?
-It seems to happen more often when removing than adding elements
-It seems to happen more often when removing connections than other elements.
-If you create the image again, changing nothing in the diagram, it generates the image properly.

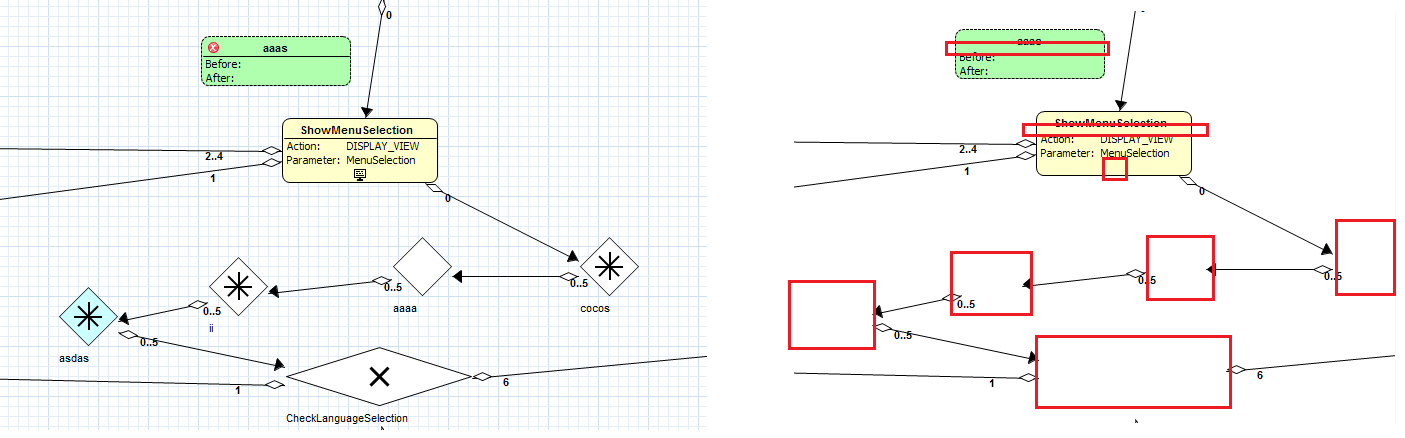

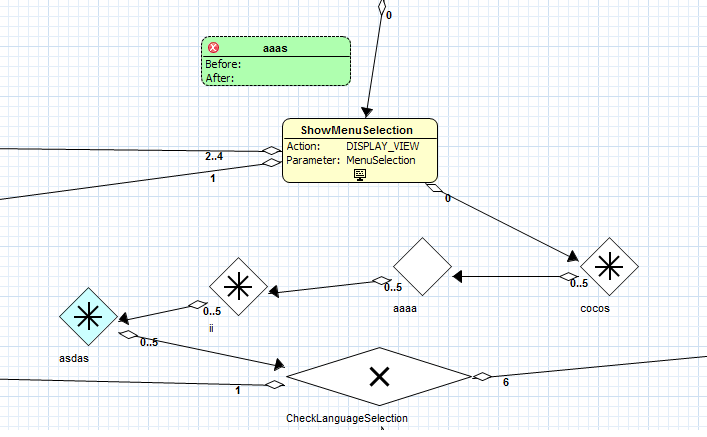

Please find examples attached as images.

Code:

This is the creation of the image, using a implementation of org.eclipse.graphiti.features.ISaveImageFeature

...
IDiagramTypeProvider dtp;
		dtp = GraphitiUi
				.getExtensionManager()
				.createDiagramTypeProvider(diagram,
						"TypeProvider"); //$NON-NLS-1$
		ISaveDocImageFeature flowSaveImageFeature = ((FlowFeatureProvider) dtp.getFeatureProvider()).getSaveDocImageFeature();
		SaveImageContext context = new SaveImageContext();
		context.putProperty(ISaveDocImageFeature.EDITOR_PROPERTY_ID, fde);
		flowSaveImageFeature.execute(context);
...


Big chunk of the definition of the Yellow element (dialog activity) which little screen inside is not getting drawn. Part of the "cascaded elements" are failing to get drawn.

...
 @Override
    public ContainerShape getShape(ContainerShape targetContainer, ISprayStyle sprayStyle) {
        // Create a ContainerShape for this Shape
        Diagram diagram = peService.getDiagramForShape(targetContainer);
        ContainerShape containerShape = peCreateService.createContainerShape(targetContainer, true);
        SprayLayoutService.setId(containerShape, "FlowShapeDialogActivity.containerShape");

        // define general layout for ContainerShape
        sprayStyle = new com.wincornixdorf.tools.flow.spray.styles.FlowYellow();
        sprayStyle.getStyle(diagram).setProportional(false);
        sprayStyle.getStyle(diagram).setStretchH(false);
        sprayStyle.getStyle(diagram).setStretchV(false);

        // layout data
        SprayLayoutType containerLayout = SprayLayoutType.FIT;
        SprayLayoutService.setLayoutManager(containerShape, containerLayout, 0, 0, true);
        SprayLayoutService.getLayoutData(containerShape).setVisible(true);

        createCascadedElements(diagram, containerShape, sprayStyle);
        createAnchorPoints(diagram, containerShape);

        // Fix the broken coordinate syaten for not active container shapes
        SprayAbstractLayoutManager.fixOffset(containerShape);

        return containerShape;
    }

    // START GENERATING CASCADED ELEMENTS
    protected void createCascadedElements(Diagram diagram, ContainerShape containerShape, ISprayStyle sprayStyle) {
        IDirectEditingInfo directEditingInfo = getFeatureProvider().getDirectEditingInfo();
        directEditingInfo.setMainPictogramElement(containerShape);
        directEditingInfo.setPictogramElement(containerShape);

        GraphicsAlgorithm element_0 = gaService.createInvisibleRectangle(containerShape);
        element_0.setStyle(sprayStyle.getStyle(diagram));
        SprayLayoutService.setShapeFromDsl(containerShape, true);
        gaService.setLocationAndSize(element_0, 0, 0, 150, 65);

        createElement_1(diagram, containerShape, sprayStyle);

        // Set start values for height and width as properties on the element for Layout Feature
        SprayLayoutManager.setSizePictogramProperties(containerShape);
    }

    protected Shape createElement_2(Diagram diagram, ContainerShape parentShape, ISprayStyle sprayStyle) {
        Shape shape_2 = peCreateService.createShape(parentShape, false);
        SprayLayoutService.setId(shape_2, "FlowShapeDialogActivity.shape_2");
        Text element_2 = gaService.createPlainText(shape_2);
        ISprayStyle style_2 = new com.wincornixdorf.tools.flow.spray.styles.FlowTextBold();
        element_2.setStyle(style_2.getStyle(diagram));
        gaService.setLocationAndSize(element_2, 5, 0, 130, 8);
        SprayLayoutService.setLayoutData(shape_2, 130, 8, true);
        element_2.setHorizontalAlignment(Orientation.ALIGNMENT_CENTER);
        element_2.setVerticalAlignment(Orientation.ALIGNMENT_BOTTOM);
        peService.setPropertyValue(element_2, ISprayConstants.TEXT_ID, TextIds.activityName.name());
        peService.setPropertyValue(shape_2, ISprayConstants.TEXT_ID, TextIds.activityName.name());
        element_2.setValue("");
        getFeatureProvider().getDirectEditingInfo().setGraphicsAlgorithm(element_2);
        return shape_2;
    }

    protected Shape createElement_3(Diagram diagram, ContainerShape parentShape, ISprayStyle sprayStyle) {
        List<Point> pointList_3 = new ArrayList<Point>();
        pointList_3.add(gaService.createPoint(1, 20, 0, 0));
        pointList_3.add(gaService.createPoint(149, 20, 0, 0));
        Shape shape_3 = peCreateService.createShape(parentShape, false);
        SprayLayoutService.setId(shape_3, "FlowShapeDialogActivity.shape_3");
        Polyline element_3 = gaService.createPlainPolyline(shape_3, pointList_3);
        ISprayStyle style_3 = sprayStyle;
        element_3.setStyle(style_3.getStyle(diagram));
        return shape_3;
    }

    protected Shape createElement_4(Diagram diagram, ContainerShape parentShape, ISprayStyle sprayStyle) {
        Shape shape_4 = peCreateService.createShape(parentShape, false);
        SprayLayoutService.setId(shape_4, "FlowShapeDialogActivity.shape_4");
        Text element_4 = gaService.createPlainText(shape_4);
        ISprayStyle style_4 = new com.wincornixdorf.tools.flow.spray.styles.FlowText();
        element_4.setStyle(style_4.getStyle(diagram));
        gaService.setLocationAndSize(element_4, 5, 16, 6, 8);
        SprayLayoutService.setLayoutData(shape_4, 6, 8, true);
        element_4.setHorizontalAlignment(Orientation.ALIGNMENT_LEFT);
        element_4.setVerticalAlignment(Orientation.ALIGNMENT_BOTTOM);
        peService.setPropertyValue(element_4, ISprayConstants.TEXT_ID, TextIds.activityActionLabel.name());
        peService.setPropertyValue(shape_4, ISprayConstants.TEXT_ID, TextIds.activityActionLabel.name());
        element_4.setValue("");
        getFeatureProvider().getDirectEditingInfo().setGraphicsAlgorithm(element_4);
        return shape_4;
    }

    protected Shape createElement_5(Diagram diagram, ContainerShape parentShape, ISprayStyle sprayStyle) {
        Shape shape_5 = peCreateService.createShape(parentShape, false);
        SprayLayoutService.setId(shape_5, "FlowShapeDialogActivity.shape_5");
        Text element_5 = gaService.createPlainText(shape_5);
        ISprayStyle style_5 = new com.wincornixdorf.tools.flow.spray.styles.FlowText();
        element_5.setStyle(style_5.getStyle(diagram));
        gaService.setLocationAndSize(element_5, 65, 16, 80, 8);
        SprayLayoutService.setLayoutData(shape_5, 80, 8, true);
        element_5.setHorizontalAlignment(Orientation.ALIGNMENT_LEFT);
        element_5.setVerticalAlignment(Orientation.ALIGNMENT_BOTTOM);
        peService.setPropertyValue(element_5, ISprayConstants.TEXT_ID, TextIds.activityAction.name());
        peService.setPropertyValue(shape_5, ISprayConstants.TEXT_ID, TextIds.activityAction.name());
        element_5.setValue("");
        getFeatureProvider().getDirectEditingInfo().setGraphicsAlgorithm(element_5);
        return shape_5;
    }

    protected Shape createElement_6(Diagram diagram, ContainerShape parentShape, ISprayStyle sprayStyle) {
        Shape shape_6 = peCreateService.createShape(parentShape, false);
        SprayLayoutService.setId(shape_6, "FlowShapeDialogActivity.shape_6");
        Text element_6 = gaService.createPlainText(shape_6);
        ISprayStyle style_6 = new com.wincornixdorf.tools.flow.spray.styles.FlowText();
        element_6.setStyle(style_6.getStyle(diagram));
        gaService.setLocationAndSize(element_6, 5, 30, 60, 8);
        SprayLayoutService.setLayoutData(shape_6, 60, 8, true);
        element_6.setHorizontalAlignment(Orientation.ALIGNMENT_LEFT);
        element_6.setVerticalAlignment(Orientation.ALIGNMENT_BOTTOM);
        peService.setPropertyValue(element_6, ISprayConstants.TEXT_ID, TextIds.activityParameterLabel.name());
        peService.setPropertyValue(shape_6, ISprayConstants.TEXT_ID, TextIds.activityParameterLabel.name());
        element_6.setValue("");
        getFeatureProvider().getDirectEditingInfo().setGraphicsAlgorithm(element_6);
        return shape_6;
    }

    protected Shape createElement_7(Diagram diagram, ContainerShape parentShape, ISprayStyle sprayStyle) {
        Shape shape_7 = peCreateService.createShape(parentShape, false);
        SprayLayoutService.setId(shape_7, "FlowShapeDialogActivity.shape_7");
        Text element_7 = gaService.createPlainText(shape_7);
        ISprayStyle style_7 = new com.wincornixdorf.tools.flow.spray.styles.FlowText();
        element_7.setStyle(style_7.getStyle(diagram));
        gaService.setLocationAndSize(element_7, 65, 30, 80, 8);
        SprayLayoutService.setLayoutData(shape_7, 80, 8, true);
        element_7.setHorizontalAlignment(Orientation.ALIGNMENT_LEFT);
        element_7.setVerticalAlignment(Orientation.ALIGNMENT_BOTTOM);
        peService.setPropertyValue(element_7, ISprayConstants.TEXT_ID, TextIds.activityParameter.name());
        peService.setPropertyValue(shape_7, ISprayConstants.TEXT_ID, TextIds.activityParameter.name());
        element_7.setValue("");
        getFeatureProvider().getDirectEditingInfo().setGraphicsAlgorithm(element_7);
        return shape_7;
    }

    protected Shape createElement_1(Diagram diagram, ContainerShape parentShape, ISprayStyle sprayStyle) {
        ContainerShape shape_1 = peCreateService.createContainerShape(parentShape, false);
        SprayLayoutService.setId(shape_1, "FlowShapeDialogActivity.shape_1");
        RoundedRectangle element_1 = gaService.createPlainRoundedRectangle(shape_1, 15, 15);
        ISprayStyle style_1 = new com.wincornixdorf.tools.flow.spray.styles.FlowYellow();
        element_1.setStyle(style_1.getStyle(diagram));
        gaService.setLocationAndSize(element_1, 0, 0, 150, 65);
        SprayLayoutService.setLayoutData(shape_1, 150, 65, true);
        createElement_2(diagram, shape_1, style_1);
        createElement_3(diagram, shape_1, style_1);
        createElement_4(diagram, shape_1, style_1);
        createElement_5(diagram, shape_1, style_1);
        createElement_6(diagram, shape_1, style_1);
        createElement_7(diagram, shape_1, style_1);
        return shape_1;
    }

    // STOP GENERATING CASCADED ELEMENTS

    protected void createAnchorPoints(Diagram diagram, ContainerShape containerShape) {
        peCreateService.createChopboxAnchor(containerShape);
    }

    public SprayLayoutManager getShapeLayout() {
...
    }
