expected behaviour of EMFCompare when Compare two UML models [message #1775260]

Fri, 27 October 2017 02:20

taghreed altamimi

Messages: 184
Registered: October 2014

Senior Member

Hi,
I am using EMFCompare to compare two UML models (attached)

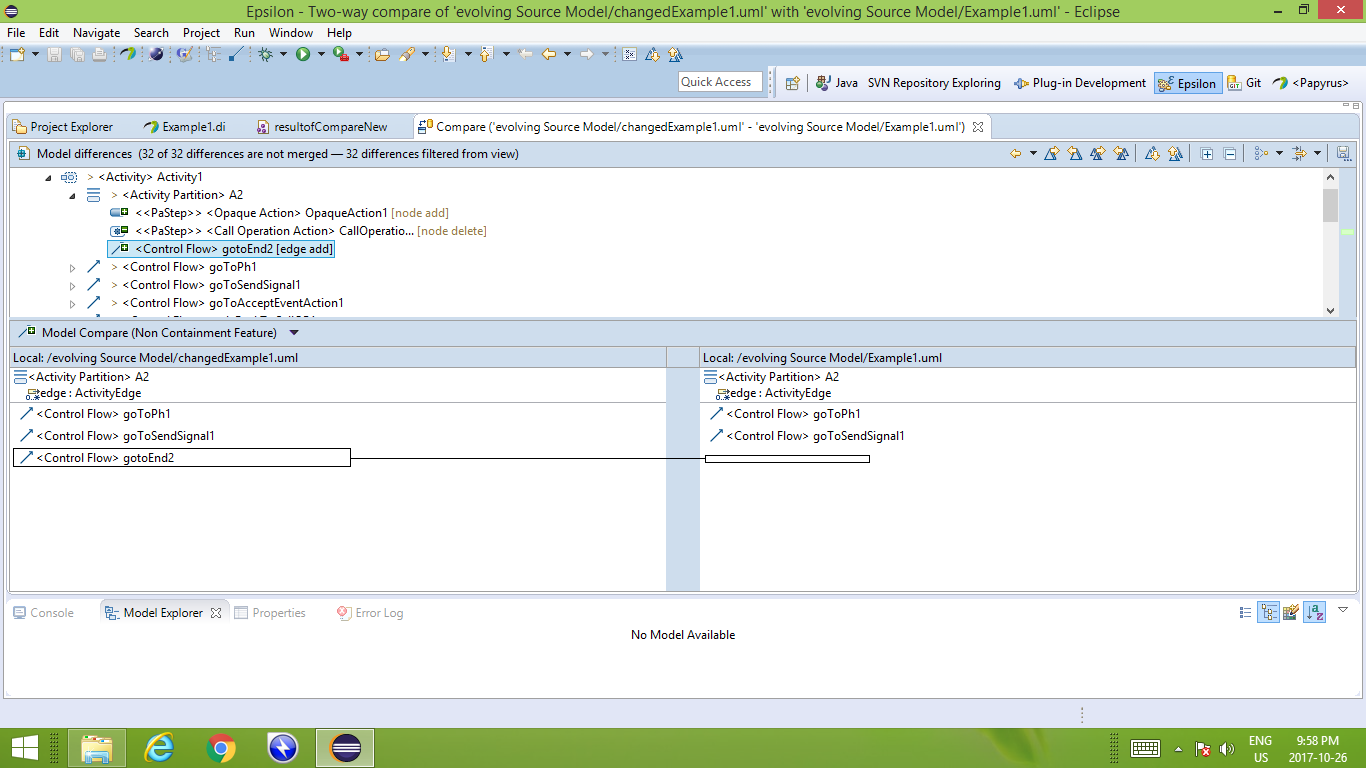

I noticed that one of the differences is goToEnd2[edge ADD] even though goToEnd2 is an old control flow as it exists in both UML models.[screenshot of the comparison is attached]
My question is : does this an expected behaviour for EMFCompare and if yes can you please explain why ?

Thanks,
Taghreed

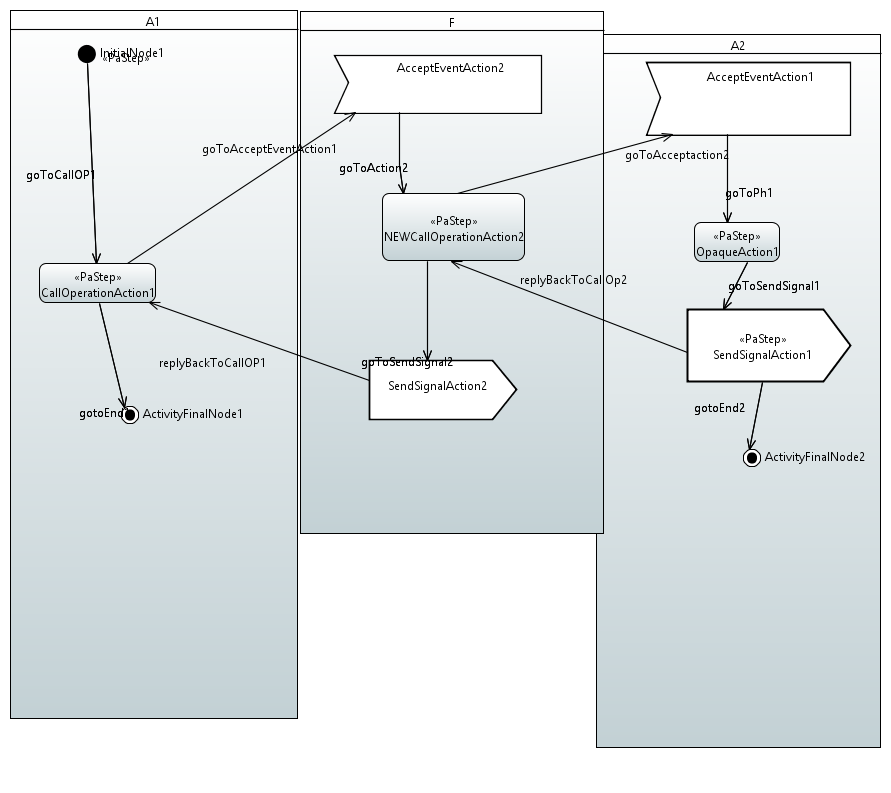

Attachment: changedExample1.png
(Size: 59.30KB, Downloaded 132 times)

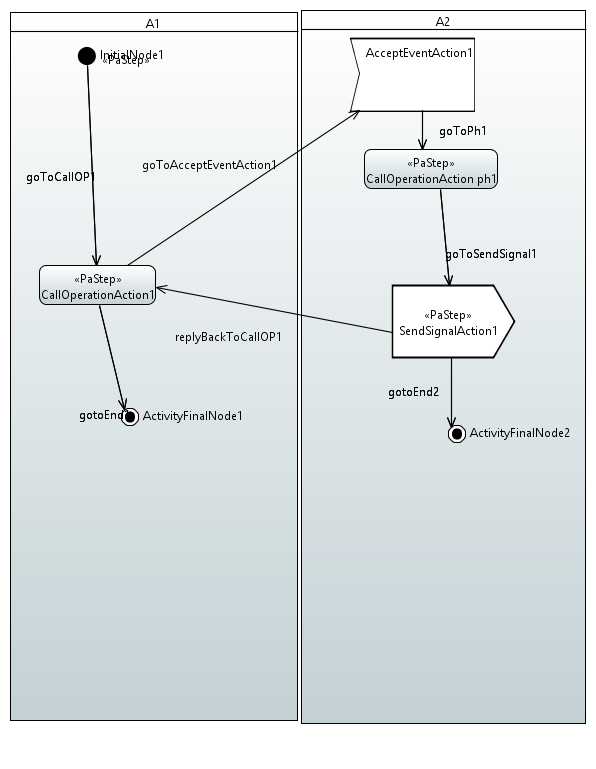

Attachment: Example1.png
(Size: 37.33KB, Downloaded 171 times)
Attachment: Comparison.png
(Size: 137.83KB, Downloaded 158 times)
