Changing return type of owned operations of classes [message #1769204]

Thu, 27 July 2017 15:27

Christopher Won

Messages: 11
Registered: July 2017

Junior Member

Sorry for this simple question, I'm still quite new to papyrus-rt but i can't seem to figure out how to change the return type of owned operations of classes.

Thanks in advance

Report message to a moderator

Re: Changing return type of owned operations of classes [message #1769205 is a reply to message #1769204]

Thu, 27 July 2017 15:49

Ernesto Posse

Messages: 438
Registered: March 2011

Senior Member

No need to apologize. It's not obvious, and this is because we inherit the rather awkward way in which you define return types in UML and in Papyrus. In UML, the "return" of an operation is actually a parameter of the operation.

I've attached a few screenshots.

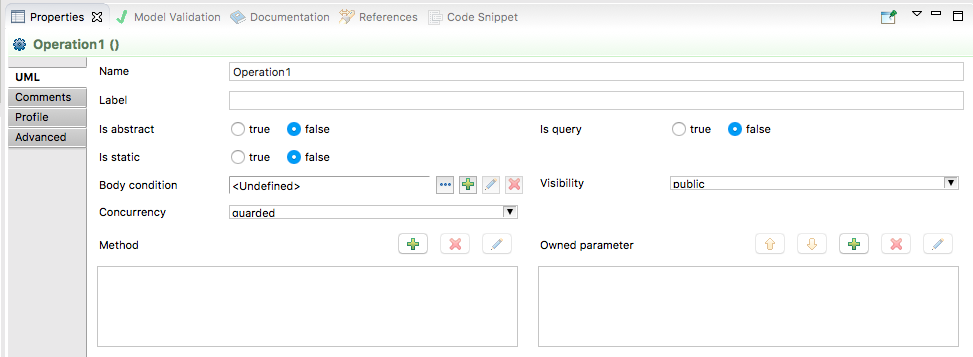

1. Select the operation in the Model Explorer. In the Properties View you should see the operation's properties (see the "Operation_properties.png" screenshot).

2. On the bottom right you see the list of "Owned parameters". Click [+] to add a new parameter (the "return parameter"). You should now see a dialog for the parameter. (see the "Operation_parameter.png" screenshot). You don't need to give a name to a return parameter.

3. In the "Direction" field, select "return". (see the "Operation_return.png" screenshot).

4. In the "Type" field (see the "Operation_return_type.png" screenshot), click either [...] to select an existing type (you'll have to browse through the model) or [+] to create a new type (typically a UML DataType, Enumeration or Class). In the Type field, you have access to UML primitive types, types from the UML-RT built-in Model Library (like UMLRTTimespec) and types from the Ansi C built-in library.

Attachment: Operation_properties.png
(Size: 59.07KB, Downloaded 210 times)
Attachment: Operation_parameter.png
(Size: 41.03KB, Downloaded 207 times)
Attachment: Operation_return.png
(Size: 9.57KB, Downloaded 196 times)
Attachment: Operation_return_type.png
(Size: 6.36KB, Downloaded 246 times)
