Problem moving association labels [message #1755294]

Thu, 02 March 2017 08:27

Marc FLAUW

Messages: 151
Registered: July 2009

Senior Member

Dear all,

I am using Papyrus 2.0.2 on Windows 64.

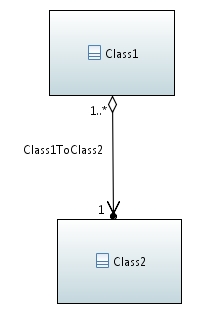

I am creating a simple directed association from Class 1 to Class 2 (see attchement).
index.php/fa/28620/0/

Using Filters--> Manage connector Labels, I chose to only display the association name and multiplicies.

However, I cannot move in the diagram the target multiplicty on the right side of the association line close to the end. I can move it to the left far from class 2 box, but when I try to position it close to the end, it automatically to its previous position.

I didn't have this problem before migrating to Papyrus 2.0.

Any explanation? any way to force the move?

Best regards,

Marc

Attachment: Class_Diagram.JPEG
(Size: 15.12KB, Downloaded 645 times)

Report message to a moderator

Re: Problem moving association labels [message #1755415 is a reply to message #1755294]

Fri, 03 March 2017 07:46

Marc FLAUW

Messages: 151
Registered: July 2009

Senior Member

I made 2 screen recording, side by side, where I try to move the cardinality 1 at the navigable end of the assoication to the right side of the association line close to the end.
With Papyrus V1.1.3, it is ok.
with Papyrus v2.0.2, I cannot move it close to the line.

Attachment: test_papyrus_v113.mp4
(Size: 795.25KB, Downloaded 78 times)
Attachment: test_papyrus_v202.mp4
(Size: 2.83MB, Downloaded 109 times)
