CDT Plugin - Adding projectTypes to a new Project Category [message #1750758]

Wed, 28 December 2016 03:18

Eclipse User

I'm working on a CDT plugin for C projects. I have created a toolchain and different projectTypes. I would like to add a new Project Category under the New Project Wizard > C Project collection. Following the CDT Extensibility Guide, I have extended cdt.managedbuilder.core.buildProperties and defined a new value for the org.eclipse.cdt.build.core.buildArtefactType property. I can see a new folder corresponding to this entry in the New C Project wizard, however I am unable to assign any project types under this folder. Only the default "Empty Project" type comes up.

I have configured some projects to have their buildArtefactType set to the new one I defined, but they still appear in the "Others" collection. How do I move them to under the new collection I have defined?

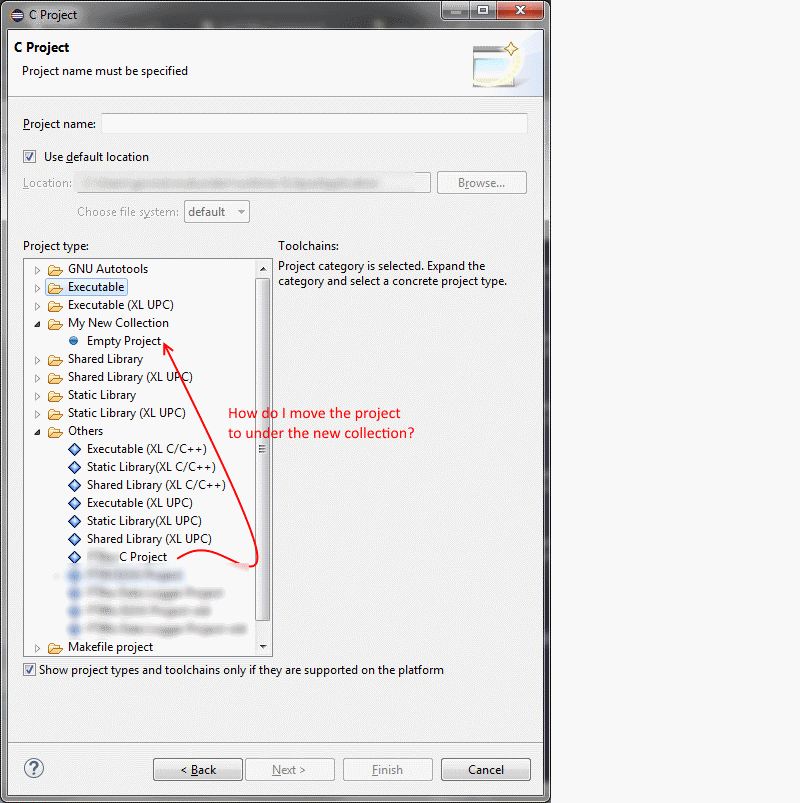

Please see attached image for a better picture.
index.php/fa/27961/0/

Attachment: eclipse.png
(Size: 122.56KB, Downloaded 639 times)

[Updated on: Fri, 30 December 2016 04:13] by Moderator

Re: CDT Plugin - Adding projectTypes to a new Project Category [message #1829100 is a reply to message #1750758]

Thu, 25 June 2020 03:34

Eclipse User

Did you find out how to do it?
