Cannot drag typed property in IBD [message #1739980]

Sat, 06 August 2016 18:12

Gino Corazzi

Messages: 5
Registered: August 2016

Junior Member

Hello, I'm using Papyrus version 2.0.0.201606080854 on Eclipse Neon Release (4.6.0), on Linux if that matters.

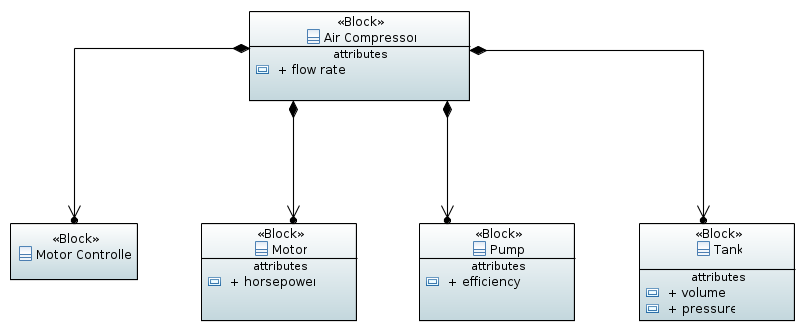

In the following BDD
index.php/fa/26705/0/

I used the 'Part Association' (which seems to be the same as the old 'Directed Composition') edge for connecting the bottom Blocks to the top 'Air Compressor' block. This created four typed properties in the 'Air Compressor' block, which is fine.

I later tried to create a new IBD as a child of 'Air Compressor' but I'm not able to make the previously mentioned typed properties appear inside the block (dragging them from the model explorer and dropping inside the block). That's surprising because I'm pretty sure it used to work on old Papyrus (pre-SysML 1.4) versions but I don't really know whether it's a consequence of changes in the SysML specification.

Any help/clarification is greatly appreciated

Attachment: air_compressor_system_hierarchy.png
(Size: 18.52KB, Downloaded 683 times)

Report message to a moderator

Re: Cannot drag typed property in IBD [message #1748253 is a reply to message #1739980]

Mon, 21 November 2016 15:33

Seung Yeob Shin

Messages: 1
Registered: November 2016

Junior Member

Does anybody solve this problem?
I have the same problem.

Version info:
- Papyrus UML 2.0.1.201609141603
- Papyrus SysML 1.4 Feature (Incubation) 0.10.0

Report message to a moderator

Re: Cannot drag typed property in IBD [message #1748266 is a reply to message #1748253]

Mon, 21 November 2016 16:10

Benoit Maggi

Messages: 129
Registered: March 2013
Location: Bordeaux, France

Senior Member

Hi,

I think you are referring to Impossible to drop an attribute with an Association which has been fixed and will be available in Papyrus Core Neon.2

Neon.2 is planned just before Christmas, see Neon 2

Regards,
Benoit

Report message to a moderator
