Dear Eclipse Community,

i'm writing my master thesis about a project, that uses the Eclipse Modeling Framework. I would like to write about the structure and of Eclipse platform. I would like to ask you, is there some diagram, that shows the core components or the major subsystems of the Eclipse Modeling Framework?
I found some description, but i'm not sure, if this is the whole structure:
http://help.eclipse.org/indigo/topic/org.eclipse.platform.doc.isv/guide/runtime_components.htm
http://eclipse.org/eclipse/platform-core/

Thank you in advance,
Daniel
Re: Eclipse core components [message #1385543 is a reply to message #1385517] Mon, 09 June 2014 08:32 Go to previous messageGo to next message
Ed Merks is currently offline Ed MerksFriend
Messages: 26279
Registered: July 2009
Senior Member
Daniel,

Comments below.

On 08/06/2014 3:06 PM, Daniel Tahin wrote:
> Dear Eclipse Community,
>
> i'm writing my master thesis about a project, that uses the Eclipse
> Modeling Framework.
Best you ask about EMF on the eclipse.tools.emf forum.
> I would like to write about the structure and of Eclipse platform. I
> would like to ask you, is there some diagram, that shows the core
> components or the major subsystems of the Eclipse Modeling Framework?
I often show this slide in my presentations showing the component
diagram of a typical generated editor where the things in the bluish
color all function independent of Eclipse and the things in purple
integrate the blue parts with Eclipse.


> I found some description, but i'm not sure, if this is the whole
> structure:
> http://help.eclipse.org/indigo/topic/org.eclipse.platform.doc.isv/guide/runtime_components.htm
>
That diagram is more about the platform's structure, not EMFs, for that
it's better to ask on the eclipse.platform forum.
> http://eclipse.org/eclipse/platform-core/
>
> Thank you in advance,
> Daniel
>
Re: Eclipse core components [message #1385544 is a reply to message #1385543] Mon, 09 June 2014 08:33 Go to previous messageGo to next message
Ed Merks is currently offline Ed MerksFriend
Messages: 26279
Registered: July 2009
Senior Member
<html>
<head>
<meta content="text/html; charset=UTF-8" http-equiv="Content-Type">
</head>
<body bgcolor="#FFFFFF" text="#000000">
Hmm,<br>
<br>
No diagram unless I send as HTML:<br>
<br>

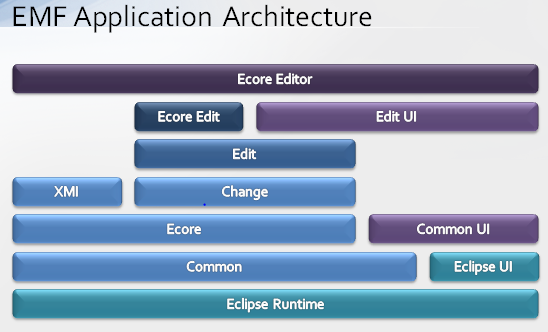

<img src="https://www.eclipse.org/forums/index.php?t=getfile&amp;id=18232" alt=""><br>
<br>
<br>
<div class="moz-cite-prefix">On 09/06/2014 10:32 AM, Ed Merks wrote:<br>
</div>
<blockquote cite="mid:ln3rev$blg$1@xxxxxxxxe.org" type="cite">Daniel,
<br>
<br>
Comments below.
<br>
<br>
On 08/06/2014 3:06 PM, Daniel Tahin wrote:
<br>
<blockquote type="cite">Dear Eclipse Community,
<br>
<br>
i'm writing my master thesis about a project, that uses the
Eclipse Modeling Framework. </blockquote>
Best you ask about EMF on the eclipse.tools.emf forum.
<br>
<blockquote type="cite">I would like to write about the structure
and of Eclipse platform. I would like to ask you, is there some
diagram, that shows the core components or the major subsystems
of the Eclipse Modeling Framework?
<br>
</blockquote>
I often show this slide in my presentations showing the component
diagram of a typical generated editor where the things in the
bluish color all function independent of Eclipse and the things in
purple integrate the blue parts with Eclipse.
<br>
<br>
<br>
<blockquote type="cite">I found some description, but i'm not
sure, if this is the whole structure:
<br>
<a class="moz-txt-link-freetext" href="http://help.eclipse.org/indigo/topic/org.eclipse.platform.doc.isv/guide/runtime_components.htm">http://help.eclipse.org/indigo/topic/org.eclipse.platform.doc.isv/guide/runtime_components.htm</a>
<br>
</blockquote>
That diagram is more about the platform's structure, not EMFs, for
that it's better to ask on the eclipse.platform forum.
<br>
<blockquote type="cite"><a class="moz-txt-link-freetext" href="http://eclipse.org/eclipse/platform-core/">http://eclipse.org/eclipse/platform-core/</a>
<br>
<br>
Thank you in advance,
<br>
Daniel
<br>
<br>
</blockquote>
<br>
</blockquote>
<br>
</body>
</html>
  • Attachment: jbhfdiaf.png
    (Size: 51.39KB, Downloaded 22 times)
Re: Eclipse core components [message #1385697 is a reply to message #1385544] Tue, 10 June 2014 14:40 Go to previous messageGo to next message
Eric Rizzo is currently offline Eric RizzoFriend
Messages: 2406
Registered: July 2009
Senior Member
Moving this to the EMF forum.
Re: Eclipse core components [message #1385712 is a reply to message #1385697] Tue, 10 June 2014 16:01 Go to previous message
Daniel Tahin is currently offline Daniel TahinFriend
Messages: 27
Registered: July 2013
Junior Member
Thanx.
