Home » Eclipse Projects » Eclipse 4 » Command Handler is not called since Kepler
Command Handler is not called since Kepler [message #1073163] Wed, 24 July 2013 08:49 Go to next message
Jan Reimann is currently offline Jan Reimann
Messages: 127
Registered: July 2009
Senior Member
Hi,
I want to contribute a command to the context menu of en existing editor
(GMF-based Ecore Diagram editor). In Juno it worked well but since
Kepler I have the problem that the HandledMenuItem is contributed but it
is not enabled. Thus, no handler is called. My fragment.e4xmi looks like
this:

<?xml version="1.0" encoding="ASCII"?>
<fragment:ModelFragments xmi:version="2.0"
xmlns:xmi="http://www.omg.org/XMI"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:commands="http://www.eclipse.org/ui/2010/UIModel/application/commands"
xmlns:fragment="http://www.eclipse.org/ui/2010/UIModel/fragment"
xmlns:menu="http://www.eclipse.org/ui/2010/UIModel/application/ui/menu"
xmi:id="_IU2pYGCJEeK-fpTrs2yrzw">
<fragments xsi:type="fragment:StringModelFragment"
xmi:id="_LgthYGCJEeK-fpTrs2yrzw" featurename="commands"
parentElementId="org.eclipse.e4.legacy.ide.application">
<elements xsi:type="commands:Command"
xmi:id="_S2HosGCJEeK-fpTrs2yrzw"
elementId="myplugin.ecoretools.commands.modifyFillColor"
commandName="Modify Fill Color of EClasses to white"
description="Modifies the fill color of each EClass in an open Ecore
Tools Diagram Editor to white" category="_mWvIoGCJEeK-fpTrs2yrzw"/>
</fragments>
<fragments xsi:type="fragment:StringModelFragment"
xmi:id="_inHcQGCJEeK-fpTrs2yrzw" featurename="categories"
parentElementId="org.eclipse.e4.legacy.ide.application">
<elements xsi:type="commands:Category"
xmi:id="_mWvIoGCJEeK-fpTrs2yrzw"
elementId="myplugin.ecoretools.categories.ecoretoolsadditions"
name="Ecore Tools Additions" description="Some additional features for
the Ecore Tools"/>
</fragments>
<fragments xsi:type="fragment:StringModelFragment"
xmi:id="_unv8kGCJEeK-fpTrs2yrzw" featurename="handlers"
parentElementId="org.eclipse.e4.legacy.ide.application">
<elements xsi:type="commands:Handler"
xmi:id="_xYe-0GCJEeK-fpTrs2yrzw"
elementId="myplugin.ecoretools.handlers.fillColorChangeHandler"
contributionURI="bundleclass://myplugin.ecoretools.additions/myplugin.ecoretools.additions.ModifyFillColorHandler"
command="_S2HosGCJEeK-fpTrs2yrzw"/>
</fragments>
<fragments xsi:type="fragment:StringModelFragment"
xmi:id="_Q4ShsGCXEeK-fpTrs2yrzw" featurename="menuContributions"
parentElementId="org.eclipse.e4.legacy.ide.application">
<elements xsi:type="menu:MenuContribution"
xmi:id="_g19fUGCXEeK-fpTrs2yrzw"
elementId="myplugin.ecoretools.modifyFillColor.menuitem"
accessibilityPhrase=""
parentId="org.eclipse.gmf.runtime.diagram.ui.DiagramEditorContextMenu">
<children xsi:type="menu:HandledMenuItem"
xmi:id="_aj-cgGCaEeK-fpTrs2yrzw"
elementId="myplugin.ecoretools.modifyFillColor.menu.item" label="Modify
Fill Color of EClasses to white"
iconURI="platform:/plugin/myplugin.ecoretools.additions/icons/EclassModified.png"
command="_S2HosGCJEeK-fpTrs2yrzw"/>
</elements>
</fragments>
</fragment:ModelFragments>

And my handler looks like this:

public class ModifyFillColorHandler {

private EcoreDiagramEditor editor;

@CanExecute
public boolean checkEcoreDiagramEditor(@Active MPart activePart){
CompatibilityEditor compatibilityEditor = (CompatibilityEditor)
activePart.getObject();
IEditorPart editor = compatibilityEditor.getEditor();
if(editor instanceof EcoreDiagramEditor){
this.editor = (EcoreDiagramEditor) editor;
return true;
}
return false;
}

@Execute
public void fillColorsOfEClasses(){
final Diagram diagram = editor.getDiagram();
TransactionalEditingDomain editingDomain = editor.getEditingDomain();
RecordingCommand command = new RecordingCommand(editingDomain) {
@Override
protected void doExecute() {
@SuppressWarnings("unchecked")
EList<View> visibleChildren = diagram.getVisibleChildren();
for (View child : visibleChildren) {
if(child instanceof Node){
Node node = (Node) child;
if(node.getElement() instanceof EClassifier){
FillStyle fillStyle = (FillStyle)
node.getStyle(NotationPackage.Literals.FILL_STYLE);
// white
fillStyle.setFillColor(16777215);
}
}
}
}
};
editingDomain.getCommandStack().execute(command);
}
}

Any ideas how and where to debug this? How can I determine why the
handler isn't invoked? Any hints?

best regards,
Jan
Re: Command Handler is not called since Kepler [message #1073170 is a reply to message #1073163] Wed, 24 July 2013 09:01 Go to previous messageGo to next message
Sopot Cela is currently offline Sopot Cela
Messages: 597
Registered: December 2010
Senior Member

Do you have the HandlerProcessingAddon in your list of addons? It is responsible for enabling handlers at startup and when the contexts come and go.
Re: Command Handler is not called since Kepler [message #1073171 is a reply to message #1073170] Wed, 24 July 2013 09:02 Go to previous messageGo to next message
Sopot Cela is currently offline Sopot Cela
Messages: 597
Registered: December 2010
Senior Member

https://bugs.eclipse.org/bugs/show_bug.cgi?id=397837
Re: Command Handler is not called since Kepler [message #1073205 is a reply to message #1073170] Wed, 24 July 2013 10:10 Go to previous messageGo to next message
Jan Reimann is currently offline Jan Reimann
Messages: 127
Registered: July 2009
Senior Member
No, I don't have it. How do I do this or where do I get the
HandlerProcessingAddon respectively?

best regards,
Jan

Sopot Cela wrote:
> Do you have the HandlerProcessingAddon in your list of addons? It is
> responsible for enabling handlers at startup and when the contexts come
> and go.
Re: Command Handler is not called since Kepler [message #1073207 is a reply to message #1073205] Wed, 24 July 2013 10:18 Go to previous messageGo to next message
Sopot Cela is currently offline Sopot Cela
Messages: 597
Registered: December 2010
Senior Member

In the bug I referenced there are detailed instruction on the commit on comment 10.
Re: Command Handler is not called since Kepler [message #1073216 is a reply to message #1073207] Wed, 24 July 2013 10:37 Go to previous messageGo to next message
Jan Reimann is currently offline Jan Reimann
Messages: 127
Registered: July 2009
Senior Member
You did not reference any bug.

best regards,
Jan

Sopot Cela wrote:
> In the bug I referenced there are detailed instruction on the commit on
> comment 10.
Re: Command Handler is not called since Kepler [message #1073218 is a reply to message #1073216] Wed, 24 July 2013 10:41 Go to previous messageGo to next message
Sopot Cela is currently offline Sopot Cela
Messages: 597
Registered: December 2010
Senior Member

http://www.eclipse.org/forums/index.php/mv/msg/494115/1073171/#msg_1073171
Re: Command Handler is not called since Kepler [message #1073224 is a reply to message #1073218] Wed, 24 July 2013 10:46 Go to previous messageGo to next message
Jan Reimann is currently offline Jan Reimann
Messages: 127
Registered: July 2009
Senior Member

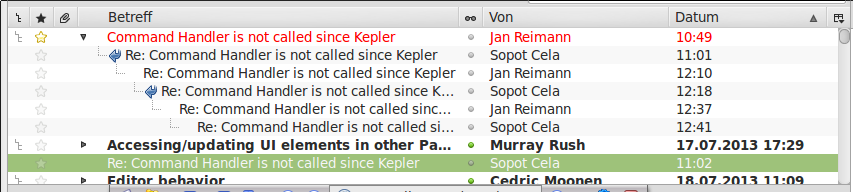

Ok, that's strange. I use the forum within my Thunderbird as newsgroups.
And the post with your bug reference didn't appear in the tree view of
the discussion (see attached screenshot), so I missed it. Sorry, I'll
have a look at it.

best regards,
Jan

Sopot Cela wrote:
> http://www.eclipse.org/forums/index.php/mv/msg/494115/1073171/#msg_1073171
  • Attachment: treeView.png
    (Size: 480.93KB, Downloaded 60 times)
Re: Command Handler is not called since Kepler [message #1073226 is a reply to message #1073224] Wed, 24 July 2013 10:55 Go to previous messageGo to next message
Sopot Cela is currently offline Sopot Cela
Messages: 597
Registered: December 2010
Senior Member

No problem. Hope that helps.
Re: Command Handler is not called since Kepler [message #1073231 is a reply to message #1073226] Wed, 24 July 2013 11:00 Go to previous message
Jan Reimann is currently offline Jan Reimann
Messages: 127
Registered: July 2009
Senior Member
Thank you Sopot! It works now :)

best regards,
Jan

Sopot Cela wrote:
> No problem. Hope that helps.
