GMF compare [message #1051399]

Sun, 28 April 2013 14:35

Simon Zutterman
Messages: 28
Registered: October 2012

Junior Member

Hi,

I'm making a graphical editor having AS-IS and TO-BE models. It would thus be very useful to be able to graphically compare two GMF diagrams.

I found this online on this topic: http://www.jonmedia.net/en/publications/master-thesis

but i can't implement it. I get import errors in the java classes of the org.eclipse.emf.compare.gmf plugin, and in the runtime, it creates a lot of error when trying to use the GMF compare function. I don't really know either how to really install this plugin, which is now just imported from the CVS..

Does anybody have more info on this topic of graphically comparing GMF models??

Regards,

Simon

Report message to a moderator

Re: GMF compare [message #1052570 is a reply to message #1051399]

Tue, 30 April 2013 04:50

Ralph Gerbig
Messages: 555
Registered: November 2009

Senior Member

Hi,

specifing the errors that you get a bit further would help a lot.

Ralph

Report message to a moderator

Re: GMF compare [message #1052584 is a reply to message #1052570]

Tue, 30 April 2013 05:10

Simon Zutterman
Messages: 28
Registered: October 2012

Junior Member

Ok Ralph, i added some screenshots to explain my problem:

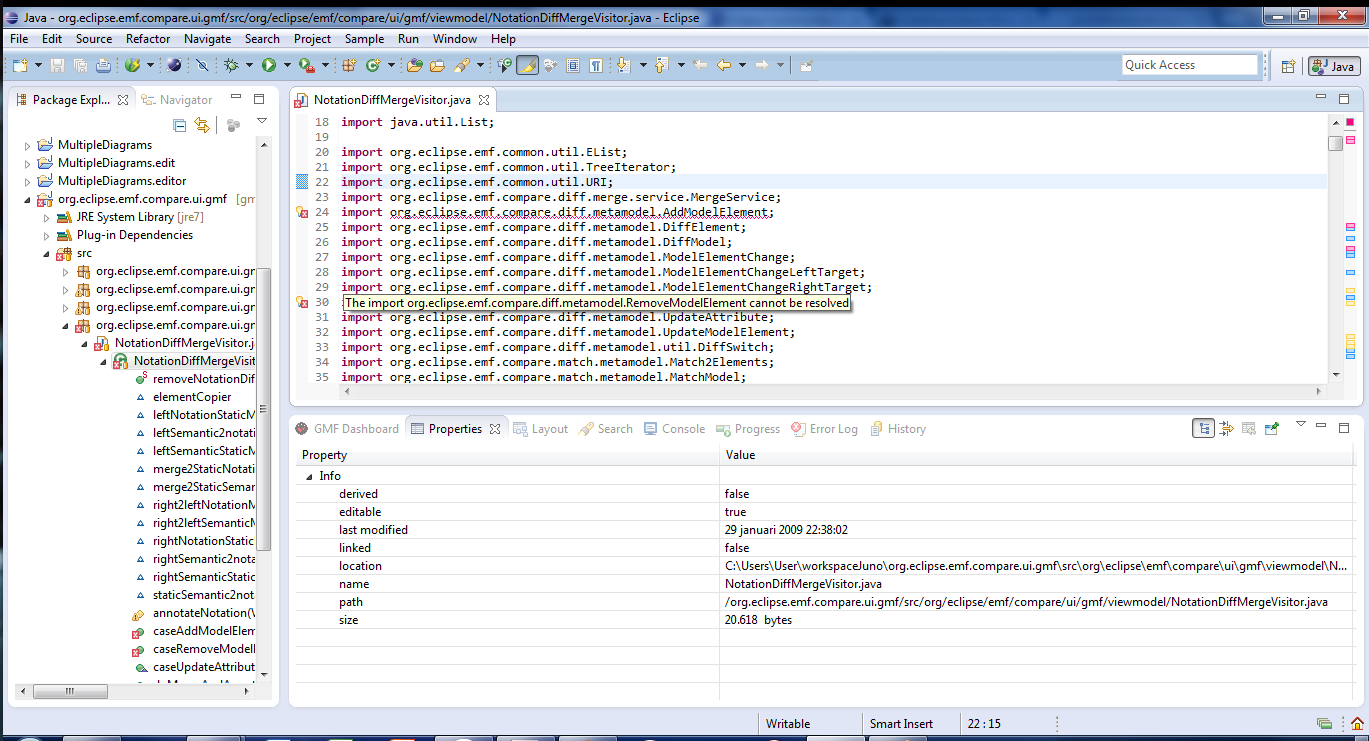

1. I import the folders from the CVS in the first post and get two unresolved errors, seen in the first attached image.

index.php/fa/14569/0/

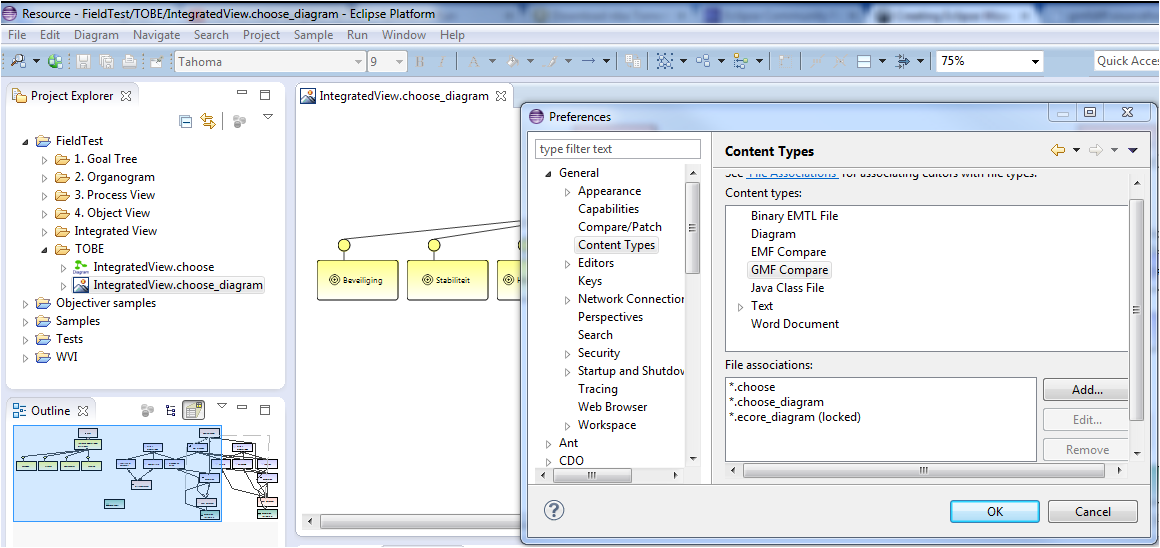

2. I go to the runtime preferences->general->content types->GMF compare, and add the domain and diagram extensions of the files i which to compare. (second attached image)

index.php/fa/14570/0/

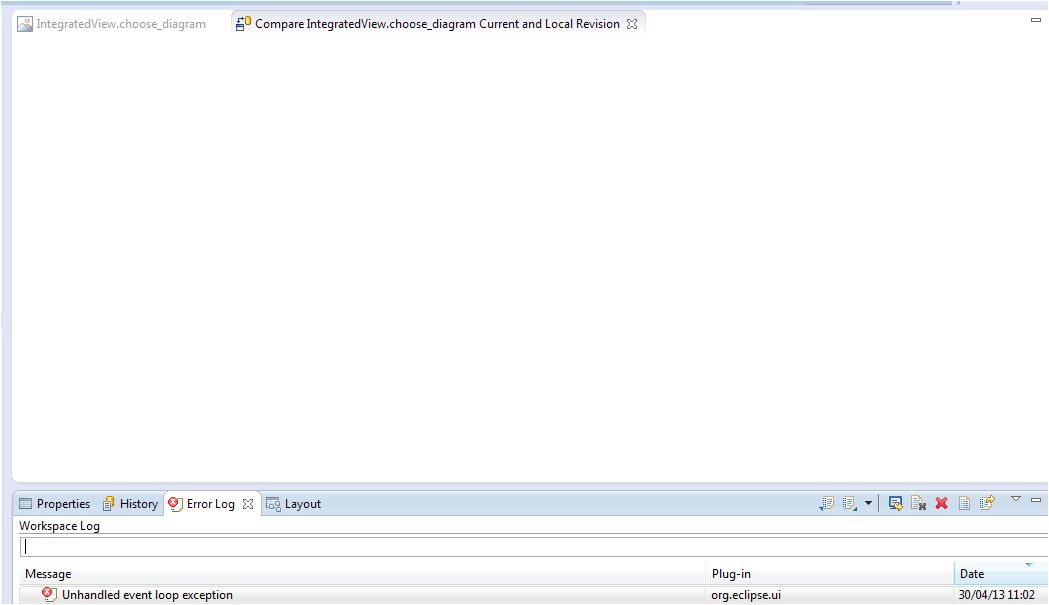

3. If i choose compare->local history, an empty compare screen appears with a given error (third attached image)

index.php/fa/14571/0/

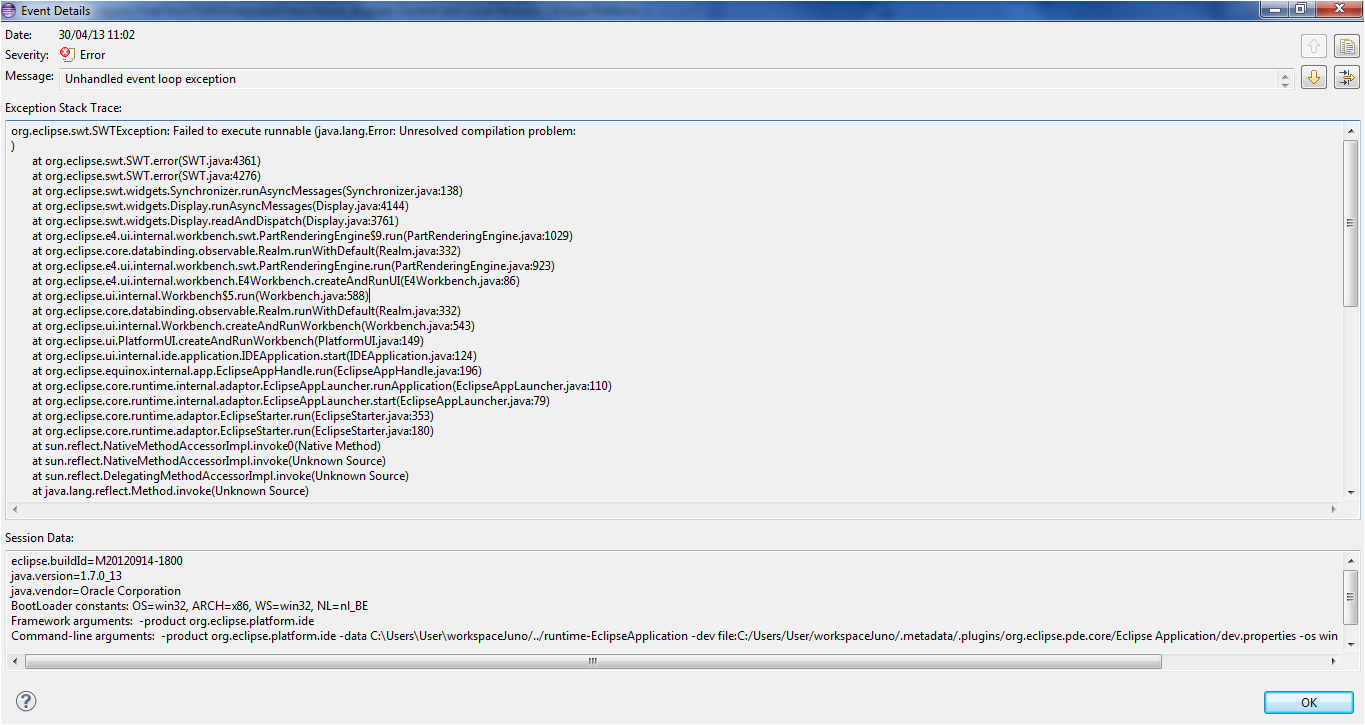

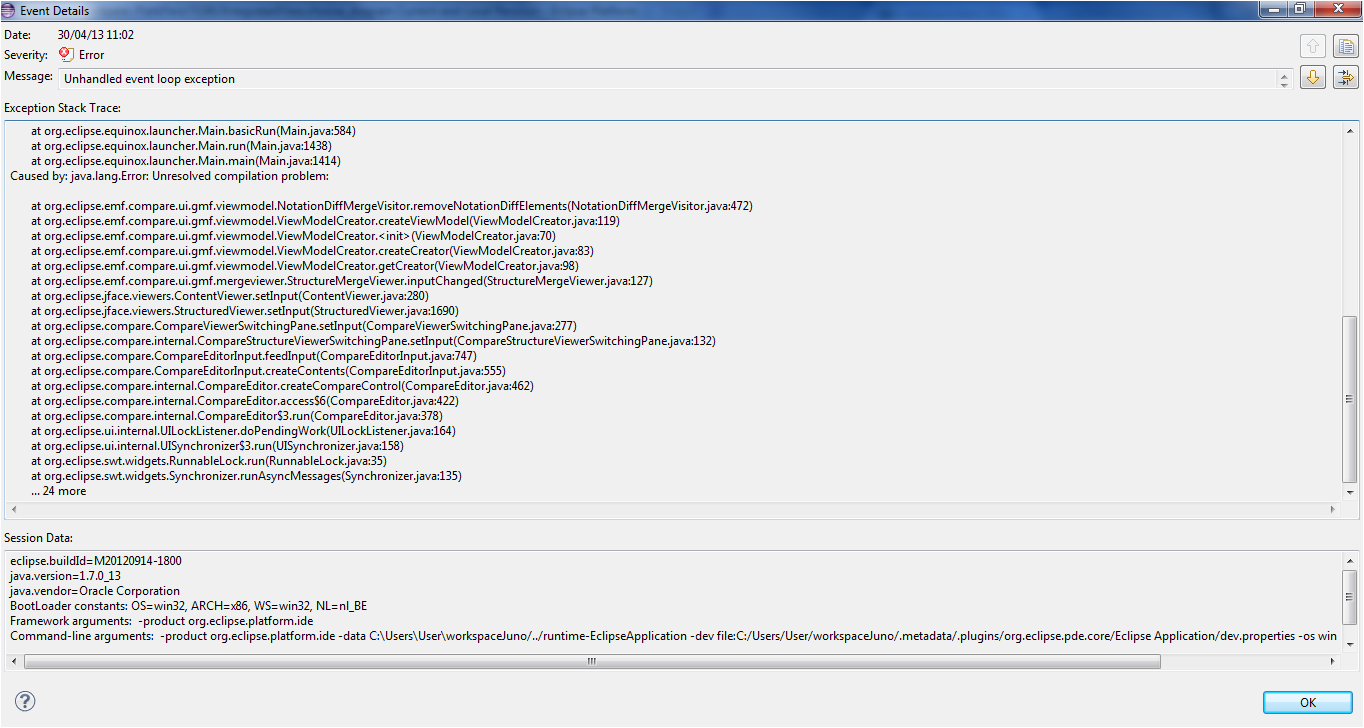

The details of the loop exception are given in the last two images..

index.php/fa/14572/0/

regards,

Simon

Attachment: import error.png
(Size: 165.22KB, Downloaded 69 times)
Attachment: preferences view.PNG
(Size: 148.76KB, Downloaded 60 times)
Attachment: empty view.PNG
(Size: 29.07KB, Downloaded 61 times)
Attachment: error 1.PNG
(Size: 124.58KB, Downloaded 62 times)
Attachment: error 2.PNG
(Size: 124.20KB, Downloaded 62 times)

Report message to a moderator

Re: GMF compare [message #1053497 is a reply to message #1052584]

Mon, 06 May 2013 05:45

Simon Zutterman
Messages: 28
Registered: October 2012

Junior Member

can anyone help me with this?

Report message to a moderator

Re: GMF compare [message #1053515 is a reply to message #1053497]

Mon, 06 May 2013 07:06

John Mark
Messages: 7
Registered: November 2012

Junior Member

I would suggent looking at the following project. It has GMF support and is actively mantained -

http://wiki.eclipse.org/EMF_Compare/User_Guide#Graphical_Comparison

http://www.eclipse.org/emf/compare/doc/features/videos/EcoreTools-v2/EMFCompareEcoreTools.html

Report message to a moderator

Re: GMF compare [message #1053560 is a reply to message #1051399]

Mon, 06 May 2013 10:24

Simon Zutterman
Messages: 28
Registered: October 2012

Junior Member

Ok,

I am using Eclipse 4.2.2 Juno with EMF 2.8.3.

I first tried installing EMF Compare 2.1, but after the install, I still wasn't able to graphically compare two files.
I then instlaled EMF Compare 1.3.3, and I can now graphically compare two .ecorediag files, but it's still not possible to graphically compare two examples in runtime..

[Updated on: Mon, 06 May 2013 10:24]

Report message to a moderator

Re: GMF compare [message #1053571 is a reply to message #1053560]

Mon, 06 May 2013 10:53

Simon Zutterman
Messages: 28
Registered: October 2012

Junior Member

I tried it with Eclipse 3.7.2 Indigo, same result,.

I don't know if i have to change anything in the preferences view, but if I now try to compare two examples in the runtime, i only get the 'visualization of structural differences', no the visualization of graphical differences...

Report message to a moderator

Re: GMF compare [message #1053748 is a reply to message #1053571]

Tue, 07 May 2013 09:31

Ralph Gerbig
Messages: 555
Registered: November 2009

Senior Member

Hi,

maybe you will get better help about this in the forum of EMF Compare.

Ralph

Report message to a moderator
