Colours of dataseries in radarchart [message #899532] Wed, 01 August 2012 06:27 Go to next message
hage Mising name is currently offline hage Mising name
Messages: 67
Registered: September 2011
Member
Hi,

in my report there is a radarchart with 2 different series. one of these is only to fill a specific area (value is constant). the other series represents the primary data. each series has its own colour defined (connecting the endpoints, creating a polygon which is filled with the defined color). These leads to a color which is a result of mixing up the color of both series. i tried changing the transparency setting of the color defined for the series, but that did not prevent the colors from mixing up. how can i setup a primary and secondary series (which is blinded by the 1st series, if their polygons meet) or prevent the colors from mixing up?

Thx for any advice in advance,

hage
Re: Colours of dataseries in radarchart [message #899641 is a reply to message #899532] Wed, 01 August 2012 12:03 Go to previous messageGo to next message
Jason Weathersby is currently offline Jason Weathersby
Messages: 9167
Registered: July 2009
Senior Member

Can you post a screenshot? If one point overlays the other do you want
it to just hide it?

Jason

On 8/1/2012 6:27 AM, hage Mising name wrote:
> Hi,
>
> in my report there is a radarchart with 2 different series. one of these
> is only to fill a specific area (value is constant). the other series
> represents the primary data. each series has its own colour defined
> (connecting the endpoints, creating a polygon which is filled with the
> defined color). These leads to a color which is a result of mixing up
> the color of both series. i tried changing the transparency setting of
> the color defined for the series, but that did not prevent the colors
> from mixing up. how can i setup a primary and secondary series (which is
> blinded by the 1st series, if their polygons meet) or prevent the colors
> from mixing up?
>
> Thx for any advice in advance,
> hage


Jason Weathersby

BIRT Exchange
Re: Colours of dataseries in radarchart [message #899832 is a reply to message #899532] Thu, 02 August 2012 09:49 Go to previous messageGo to next message
hage Mising name is currently offline hage Mising name
Messages: 67
Registered: September 2011
Member

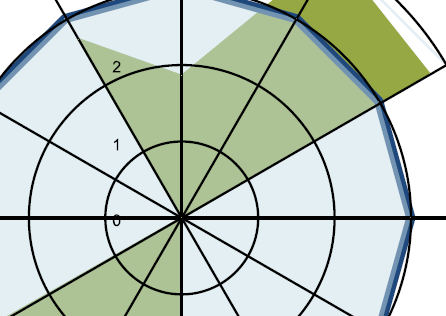

i want the green polygon to have the same color all over the chart. the defined color is the one, which can be seen at the top right of the attached image, the cell within the outer ring. is that possible?
Re: Colours of dataseries in radarchart [message #899846 is a reply to message #899832] Thu, 02 August 2012 10:49 Go to previous messageGo to next message
Jason Weathersby is currently offline Jason Weathersby
Messages: 9167
Registered: July 2009
Senior Member

Can you log a bugzilla entry for this. You should be able to set the
Zorder for a radar series. As a work around, go back to the select data
tab of your chart wizard and switch the two series expressions. for
example if series1 is defined as row["qty"] and series 2 is
row["price"], set series 1 to row["price"] and series 2 to row["qty"]
This should reverse the order the series is drawn in your chart and show
the green polygon on top.


Jason

On 8/2/2012 9:49 AM, hage Mising name wrote:
> i want the green polygon to have the same color all over the chart. the defined color is the one, which can be seen at the top right of the attached image, the cell within the outer ring. is that possible?
>


Jason Weathersby

BIRT Exchange
Re: Colours of dataseries in radarchart [message #899988 is a reply to message #899846] Fri, 03 August 2012 06:55 Go to previous messageGo to next message
hage Mising name is currently offline hage Mising name
Messages: 67
Registered: September 2011
Member
done: https://bugs.eclipse.org/bugs/show_bug.cgi?id=386560

thx for your help.

hage
Re: Colours of dataseries in radarchart [message #900077 is a reply to message #899988] Fri, 03 August 2012 15:56 Go to previous messageGo to next message
Jason Weathersby is currently offline Jason Weathersby
Messages: 9167
Registered: July 2009
Senior Member

Did the reverse series order work for you?

Jason

On 8/3/2012 6:56 AM, hage Mising name wrote:
> done: https://bugs.eclipse.org/bugs/show_bug.cgi?id=386560
>
> thx for your help.
>
> hage


Jason Weathersby

BIRT Exchange
Re: Colours of dataseries in radarchart [message #901745 is a reply to message #900077] Tue, 14 August 2012 08:51 Go to previous message
hage Mising name is currently offline hage Mising name
Messages: 67
Registered: September 2011
Member
i managed to get the green series on top (without mixing up), which runs me into another problem. nevertheless i should be able to solve that by myself. thx anyway
