Problem when delete a node in a subdiagram [message #896482]

Wed, 18 July 2012 09:56

Achim E.
Messages: 7
Registered: July 2009
Location: Germany

Junior Member

Hi,

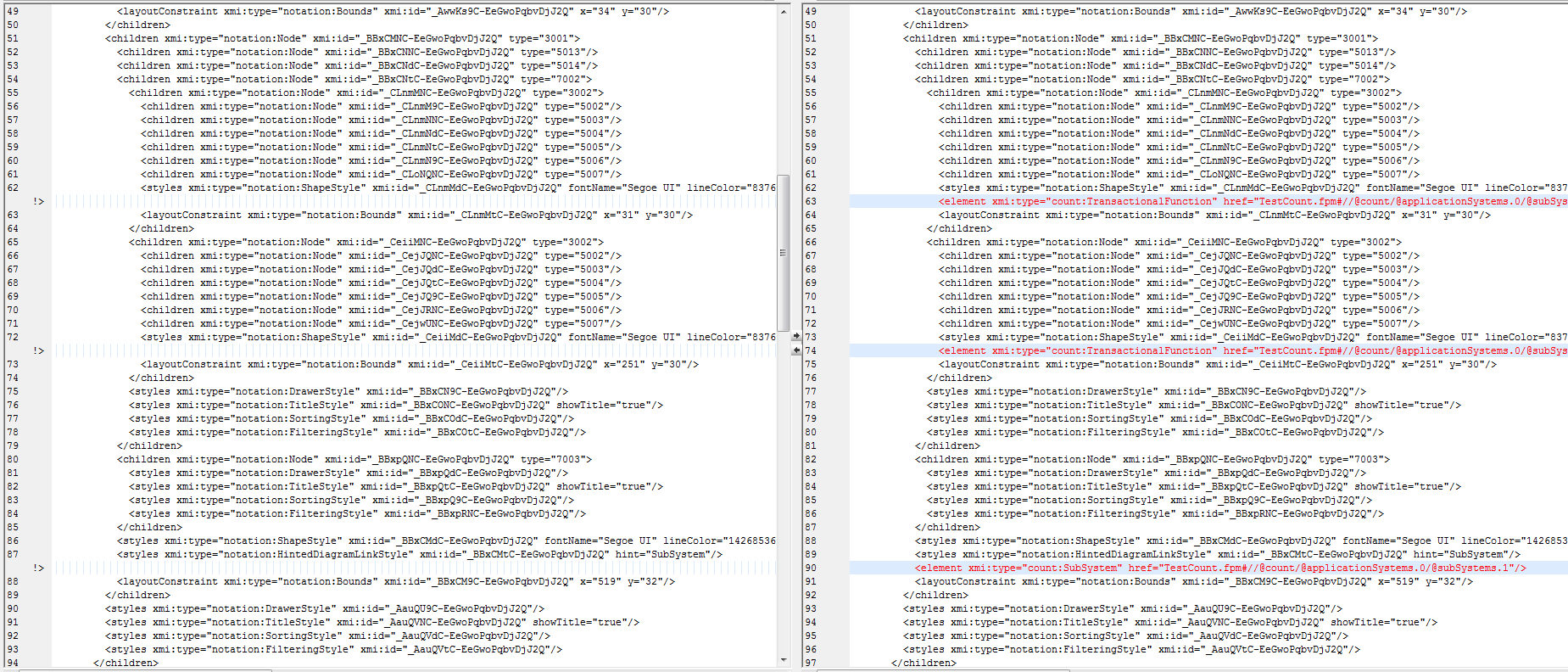

I have a problem deleting a node in a generated subdiagram. Delete operation works well for the diagram part of the subdiagram.

Entries in the corresponding XMI File are deleted.

index.php/fa/10748/0/

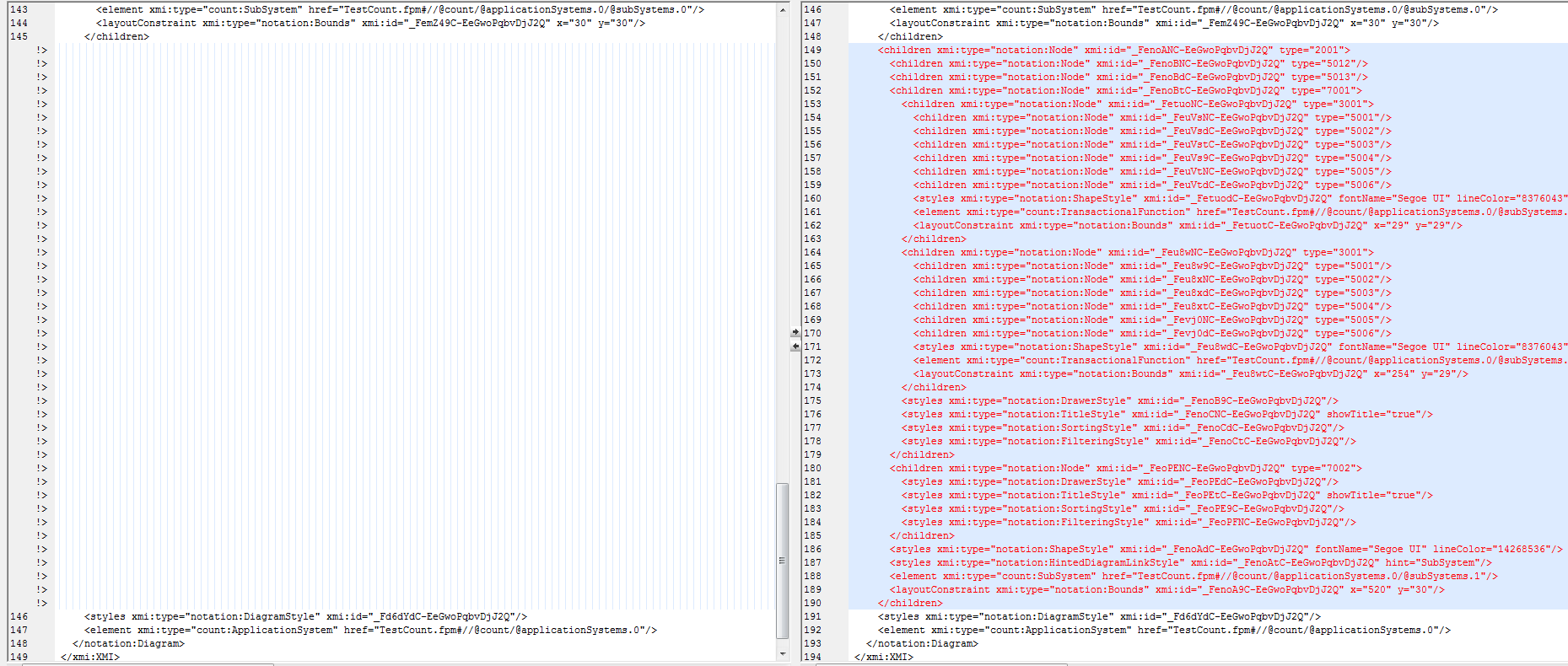

But when I now open the parent generated editor, my application crashes. From my point of view, problem is the XMI part for the parent editor. Only <element> entries are deleted, the <children> elements/groups still exist.

index.php/fa/10749/0/

How can I track this ? I don't know where to set a breakpoint.

Kind regards
Achim

Attachment: works_well.png
(Size: 155.59KB, Downloaded 513 times)
Attachment: does_not_work.png
(Size: 148.65KB, Downloaded 524 times)
