Tags for Stereotype don't appear [message #627123]

Thu, 30 October 2008 19:40

Robert Lario

Messages: 34
Registered: July 2009

Member

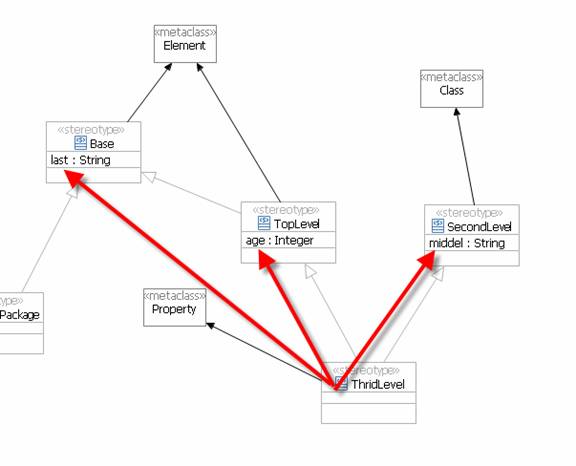

Given the profile definition below, ThridLevel (ThirdLevel) should have
three tags defined last, age and middle.

Here is snapshot of the model:

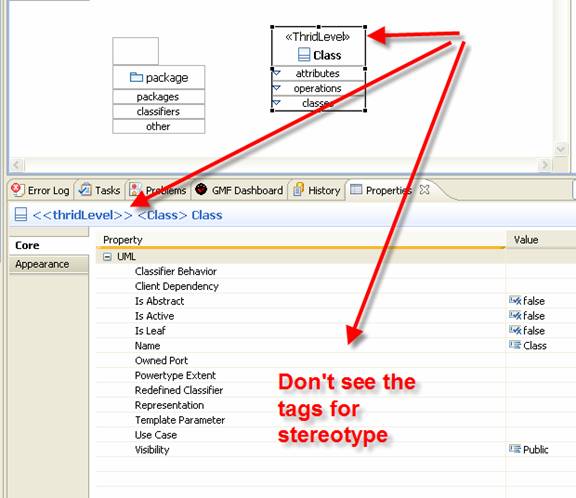

Here I am using the profile and the ThridLevel stereotype in a model

But the tags do not show up. Any ideas on what the issue maybe?

Thanks

Attachment: clip_image002.jpg
(Size: 20.16KB, Downloaded 166 times)
Attachment: clip_image004.jpg
(Size: 38.88KB, Downloaded 175 times)
