 Eclipse Corner Article

Take control of your properties

Summary
The Eclipse workbench provides a properties view which is used to view (and/or edit) properties of a selected item. In this article, you will learn how to use the properties view to dynamically modify the properties of a GUI button.

By Dicky Johan, Broadvision, dicky.johan@broadvision.com
May 20, 2003


Introduction

The Eclipse workbench provides a lot of views, but one of the highly extensible views is the properties view. It provides a way for you, as a plug-in developer, to display the properties of a selected item. The properties view can display read-only information, such as the properties of a file resource. Or it can display information that can be edited, such as the properties of an extension point in a plugin.xml file.

The properties view can display properties for various kinds of items. An item may be a directory resource, a file resource, or an element within a resource (such as an extension in a plugin.xml file). The items may reside in different views within the Eclipse workbench, and the properties view can be triggered from different views or editors to display the properties of a selected item.

In this article, I will show you how to control the different properties of a GUI resource using the properties view. Using a button as a sample GUI resource, I will create a button, a view containing that button, and a list of editable and complex properties. I will show how the button responses to changes of its properties thru the property view.

Installation

To run the sample, please unzip propertyviewsample.zip into your eclipse subdirectory. Restart eclipse as necessary.

Running the sample

Switch to the Resource perspective, Window>Open Perspective>Resource. Next open the properties view, Window>Show View>Other... and select
Basic>Properties. Now goto Go to Window>Show View>Other... and select "Sample Category/Sample1 View" and you should see the view being shown below.

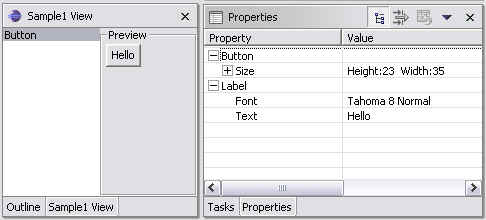

When you select the "Button" in the view, notice that the properties view is changed to display the current properties of the button. You can modify the properties and see how the button changes! Cool!

Now the excitement is over, let's get on with the details!

Connecting our view to the Properties View

The properties view is designed to respond to workbench selection changes. The workbench selection is determined by the selection provider (implements ISelectionProvider) for the currently active workbench part (view or editor).

Every workbench part has a IWorkbenchPartSite, and one can set the selection provider for this site. When I created our sample view, I instantiated a ListViewer, which implements ISelectionProvider. I pass this ListViewer to the IWorkbenchPartSite object via setSelectionProvider. This enables the property view to be informed of selection changes in our list when our view is the active workbench part.

   // configure the viewer
   viewer.setContentProvider(new ListContentProvider());
   viewer.setLabelProvider(new LabelProvider() {
      public String getText(Object element) {
         return ((ButtonElement)element).getName();
      }
   });
   viewer.setInput(input);
   getSite().setSelectionProvider(viewer);

Creating the IAdaptable item

When the properties view is notified of a workbench selection change, the selected item will be queried for a property source. There are two ways to provide a property source for a particular selection:

We will use the latter approach. The first thing we need to do is to create our own custom item. In this case, it is a element used to store a GUI button.

public class ButtonElement implements IAdaptable {

   private Button button;
   private String name;

      /**
       * @see org.eclipse.core.runtime.IAdaptable#getAdapter(java.lang.Class)
       */
      public Object getAdapter(Class adapter) {
		 if (adapter == IPropertySource.class) {
			if (btnElPS == null) {
				// cache the buttonelementpropertysource
				btnElPS = new ButtonElementPropertySource(this,name);
			}
			return btnElPS;
		 }
         return null;
      }

Notice that this class implements IAdaptable, which is used to query for a property source. When getAdapter is called with the IPropertySource.class argument, it will create an instance of the class ButtonElementPropertySource that describes the button's properties. We cache this instance in the class for two reasons. One is for performance (since for every call, we are creating similar objects), and the other is for tracking property changes as you will see later.

Creating the Property Source object

The ButtonElementPropertySource class implements IPropertySource, which is an interface that provides a description of an item's properties. In our example, I am storing the button control within the element, and since I will be modifying the properties of the button in real time, I want to gain access to its handle within the ButtonElementPropertySource object. Thus the constructor of ButtonElementPropertySource takes a ButtonElement object. It also takes on a defaultText string, this is used for storing the default value of the button text.


   /**
    * This class provides property sheet properties
    * for ButtonElement.
    */
   public class ButtonElementPropertySource implements IPropertySource {

      private static final String PROPERTY_FONT = "mview.views.font";
      private static final String PROPERTY_SIZE = "mview.views.size";
      private static final String PROPERTY_TEXT = "mview.views.text";
      private final Button button;
      private final SizePropertySource sizePropertySource = new SizePropertySource();

      private String defText;

      private IPropertyDescriptor[] propertyDescriptors;

      /**
       * Creates a new ButtonElementPropertySource.
       *
       * @param element  the element whose properties this instance represents
       */
      public ButtonElementPropertySource(ButtonElement element, String defaultText) {
         button = element.getControl();
         defText = defaultText;
      }

      /**
       * @see org.eclipse.ui.views.properties.IPropertySource#getPropertyDescriptors()
       */
      public IPropertyDescriptor[] getPropertyDescriptors() {
         if (propertyDescriptors == null) {
            // Create a descriptor and set a category
            PropertyDescriptor fontDescriptor = new FontDataPropertyDescriptor(PROPERTY_FONT, "Font");
            fontDescriptor.setCategory("Label");

            PropertyDescriptor sizeDescriptor = new PropertyDescriptor(PROPERTY_SIZE, "Size");
            // set a custom label provider for a point
            sizeDescriptor.setLabelProvider(new LabelProvider() {
               public String getText(Object element) {
                  Point point = (Point)element;
                  StringBuffer buf = new StringBuffer();
                  buf.append("Height:");
                  buf.append(point.y);
                  buf.append("  ");
                  buf.append("Width:");
                  buf.append(point.x);
	              return buf.toString();
               }
            });
            sizeDescriptor.setCategory("Button");

            PropertyDescriptor textDescriptor = new TextPropertyDescriptor(PROPERTY_TEXT,"Text");
            textDescriptor.setCategory("Label");

            propertyDescriptors = new IPropertyDescriptor[] {
               fontDescriptor,
               sizeDescriptor,   // Read-only (instance of PropertyDescriptor)
               textDescriptor};
            }
            return propertyDescriptors;
      }

Every property needs to be described by a property descriptor. You can create your own custom property descriptor, I will show you an example of this later, or you can use some standard ones that are already included:

Two property descriptors are categorized under "Label", the other under "Button". Notice how these categories show up in the properties view when the "Show Categories" button is pressed in the view's local toolbar. Altogether, I created three property descriptors.

Creating a custom property descriptor

It would be too boring to only display a button with a plain vanilla default font. I decided to spice it up by providing an editable font property. Checking out the list of default property descriptors, I cannot find any font related property descriptor. So, let's try to be a bit adventurous and create our own.

   public class FontDataPropertyDescriptor extends PropertyDescriptor {
      /**
       * Creates a property descriptor with the given id and display name.
       *
       * @param id the id of the property
       * @param displayName the name to display for the property
       */
      public FontPropertyDescriptor(Object id, String displayName) {
         super(id, displayName);
         setLabelProvider(new FontDataLabelProvider());
      }

      /**
       * @see org.eclipse.ui.views.properties.IPropertyDescriptor#createPropertyEditor(Composite)
       */
      public CellEditor createPropertyEditor(Composite parent) {
         CellEditor editor = new FontDataDialogCellEditor(parent);
         if (getValidator() != null)
            editor.setValidator(getValidator());
         return editor;
      }
   }

I derive the FontDataPropertyDescriptor class from the default PropertyDescriptor. When createPropertyEditor is called, I need to instantiate our own FontDataDialogCellEditor.

The FontDialogCellEditor needs to instantiate a dialog, and thus behaves like a DialogCellEditor. So, I derive from it.

   public class FontDataDialogCellEditor extends DialogCellEditor {
      /**
       * Creates a new Font dialog cell editor parented under the given control.
       * The cell editor value is <code>null</code> initially, and has no
       * validator.
       *
       * @param parent the parent control
       */
      protected FontDataDialogCellEditor(Composite parent) {
         super(parent);
      }

      /**
       * @see org.eclipse.jface.viewers.DialogCellEditor#openDialogBox(Control)
       */
      protected Object openDialogBox(Control cellEditorWindow) {
         FontDialog ftDialog = new FontDialog(cellEditorWindow.getShell());
         String value = (String) getValue();

         if (getValue() != null) {
            ftDialog.setFontData((FontData)getValue());
         }
         FontData fData = ftDialog.open();

         if (fData != null) {
  	    return fData;
         }
         return getValue();
      }
   }
Exploring the rich UI functionality provided by Eclipse, I find out that SWT provides the system FontDialog. How handy! So, I just use that to instantiate our font dialog. SWT uses a FontData to represent the font and this is what we use as the property's value. After setting the font, I need to present its value as a human readable string in the properties view. A FontDataLabelProvider is used for this purpose. Using a few simple classes, I have created a custom property descriptor.

Implementing complex property descriptors

From time to time, we encounter properties that are quite complex, i.e. their values are not simple objects such as strings or integers. As an example, consider the size property of a Button. It expects and returns a Point object. But if you look closer, a point object is really comprised of two simple integer values. Thus we can describe the size using a SizePropertySource which has "width" and "height" properties.

   /**
    * @see org.eclipse.ui.views.properties.IPropertySource#getPropertyValue(Object)
    */
   public Object getPropertyValue(Object name) {
      ...
      if (name.equals(PROPERTY_SIZE)) {
         // By returning a property source for the value, this property
	 // will have "child properties" in the view.
	 // These child properties are determined by the property source
	 // we return here
	 sizePropertySource.setPoint(button.getSize());
	return sizePropertySource;
      }
      ...
   }

   /**
    * @see org.eclipse.ui.views.properties.IPropertySource#setPropertyValue(Object, Object)
    */
   public void setPropertyValue(Object name, Object value) {
      ...
      if (name.equals(PROPERTY_SIZE)) {
         // We returned a SizePropertySource as the value for PROPERTY_SIZE
         // The SizePropertySource's editValue will be set as the value
	 // for PROPERTY_SIZE here
	 button.setSize((Point)value);
      }
      ...
   }

The Eclipse workbench supports the notion of nested properties (good job in thinking ahead!). When getProperty is called on the ButtonElementPropertySource, we return an IPropertySource object instead of a value. In this case, I created the SizePropertySource class for describing the size property. SizePropertySource is similar to ButtonElementPropertySource, so I would not elaborate on it further. Note that when an IPropertySource is used as a property value, its getEditValue is used by the properties view to set the property value.

Controlling the button

In order to update the button once a property has been changed, I make a call to the button within the setPropertyValue function of the ButtonElementPropertySource class. Since I hold the ButtonElement handle within the ButtonElementPropertySource object, I can set the properties of the element's button control directly.

Default Properties

The IPropertySource interface also provides a means of implementing default values for properties. This is accomplished via two methods on the IPropertySource interface: isPropertySet and resetPropertyValue. In the diagram shown below, there is a default button that the user can press. If the function <resetPropertyValue> is implemented, it will cause the the property value to reset to its default.

Whenever the Default button is clicked, the isPropertySet will be called for the property that is being selected. If isPropertySet returns true, then it will call resetPropertyValue to reset the property to a specified default value. In the sample code that is enclosed, I only show how to reset the text property, but you can apply the same concept to the other properties.

I store the default Name for the button text in a member variable of the ButtonElementPropertySource class. The default Name is set during construction time. In the isPropertySet call, a check is made between the current text property and the default text property. If they are different, then the resetPropertyValue method will be invoked, and in there, I made the call to setPropertyValue method with the default text value.

/**
  * Creates a new ButtonElementPropertySource.
  *
  * @param element  the element whose properties this instance represents
  * @param defaultText  the default text of the button
  */
	public ButtonElementPropertySource(ButtonElement element, String defaultText) {
		btnEl = element;
		button = element.getControl();
		defText = defaultText;
	}

...

/**
  * @see org.eclipse.ui.views.properties.IPropertySource#isPropertySet(Object)
  */

  public boolean isPropertySet(Object id) {
     if (id.equals(PROPERTY_TEXT)) {
        	String curName = (String)getPropertyValue(id);
			return !curName.equals(defText);
     }
     // other properties are not supported currently
     return false;
  }

/**
  * @see org.eclipse.ui.views.properties.IPropertySource#resetPropertyValue(Object)
  */

  public void resetPropertyValue(Object id) {
     // tracks the text property only
     if (id.equals(PROPERTY_TEXT)) {
		setPropertyValue(id,defText);
     }
  }

Summary

I have discussed how to register a workbench selection provider so that a selection will be passed to the properties view. I demonstrated creating a property source and its property descriptors. I showed how a descriptor supports the display and editing of a property.

There are several other advanced properties view topics that have not been discussed. For example, the properties view supports having more than one item selected and showing only those properties which are common to all the selected items. The workbench also provides a mechanism for workbench parts to provide their own custom "page" for the properties view (by asking the part for an IPropertySheetPage via getAdapter). Such a custom page can be an instance of PropertySheetPage configured with an IPropertySourceProvider or a custom root IPropertySheetEntry or the custom page can be an independent implementation of IPropertySheetPage. This mechanism allows the properties view to work with non-IPropertySource items.

Now that you have discovered some of the magic of the properties view, I hope that you can make good use of it.
